Castle SIDEWINDER NANO MICRO ESC 2-3S 1/18-1/24 Plug & Play
845 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: CC010017601

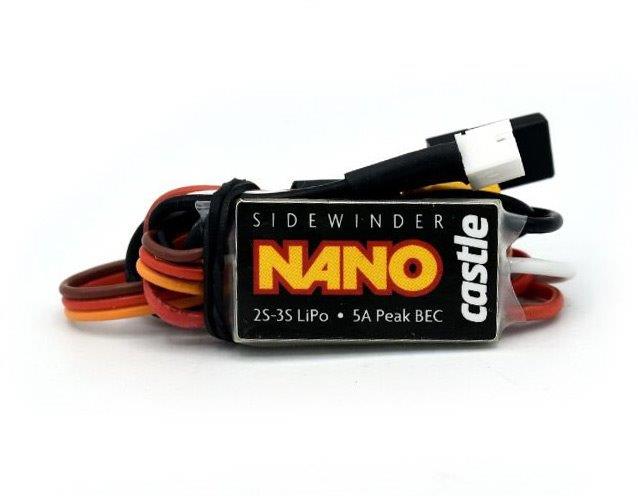

Castle CC010-0176-01 - Sidewinder Nano Micro PnP 2-3S ESC with XT30 & JST plugs
We are thrilled to add a performance upgrade solution to the ever-growing micro-scale phenomenon in R/C. The SIDEWINDER NANO PnP may be small in stature, but its colossal in power and includes our proprietary CRYO-DRIVE Technology resulting in improved thermal performance during partial throttle operation wherethe majority of driving occurs. The Sidewinder Nano is ready-to-run out of the box but can also be tuned for the drivers preferences using a Windows® based PC and a Castle Link USB adapter (sold separately) , or with a mobile device using Castle B-Link Bluetooth® Adapter (sold separately).
The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.
Please refer to our Surface Product Selector for recommended motor, battery and gearing for some of the more popular vehicles on the market.
PRODUCT FEATURES:
Input Voltage Range 2s-3s LiPo, 12.6V Max
Sensorless and Brushed Running Modes
Internal BEC 5V Fixed, 5A Peak
CRYO-DRIVE Technology minimizes the amount of time the ESCs electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
Proudly designed and supported in Kansas, USA.
PRODUCT APPLICATIONS:
Ideal for 1/24th scale 2WD or 4WD vehicles up to 0.45kg
Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
1/18th crawlers up 1kg (no rock racing/hill climbing)
Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18
SIDEWINDER NANO COMES WITH:
Sidewinder Nano ESC
ESC Quick Start Guide
Specs:
Input Voltage Range: MIN: 2s LiPo MAX: 3s LiPo 12.6V
BEC Specifications: 5V fixed output, 5A Peak
Operating Environment: Not waterproof, silicone conformal coated for water resistance.
On/Off Switch: N/A
Cooling Fan: N/A
Size: Length: 28mm
Width: 15.5mm
Height: 9.3mm
Weight (with no battery connector): 14gr
Product Use Statements: Any appropriately sized outrunner can be utilized. A 1806 (stator size) is popular for the 24th scale crawlers, monster trucks, etc. 3000-3500ish kv for 2s, 2000-2500kv for 3s. (motor outside dimensions are ~16mm diameter, ~20mm length). A 2204 to 2208 (stator size) is a good choice for 1/18th scale crawlers (IE Axial UTB18, Traxxas TRX4m). Same kvs as above. (motor outside dimensions ~28mm diameter, ~26mm length)
Application Guidelines: For 1/24th scale 2WD or 4WD (Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24) vehicles up to 0.45kg. 1/18th crawlers up 1kg (Axial UTB18, Traxxas TRX-4m, FMS FCX18) (no rock racing/hill climbing)
Programmability:
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software, or the Castle Link iOS® or Android® app with B-LINK Bluetooth Adapter (sold separately).
