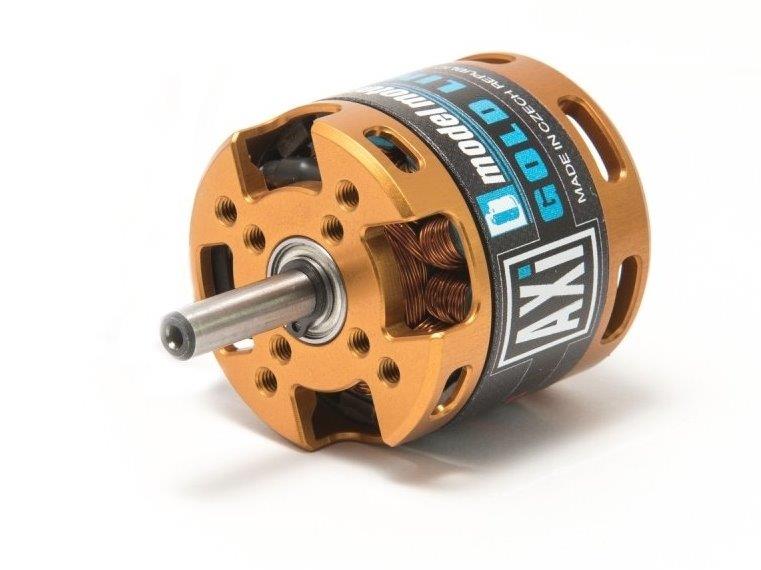

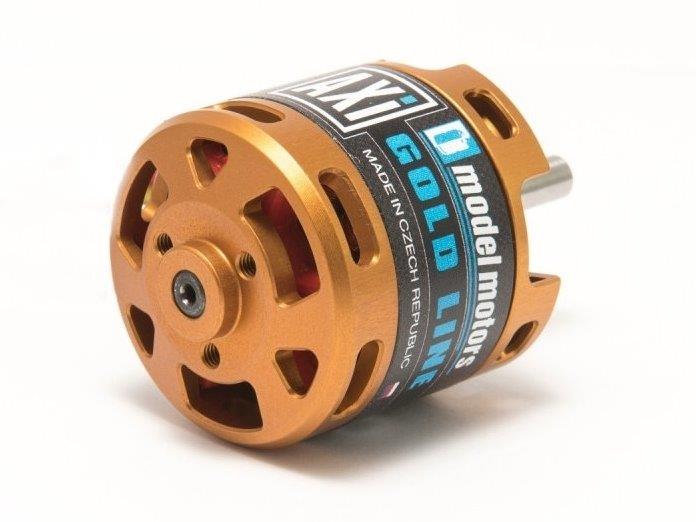

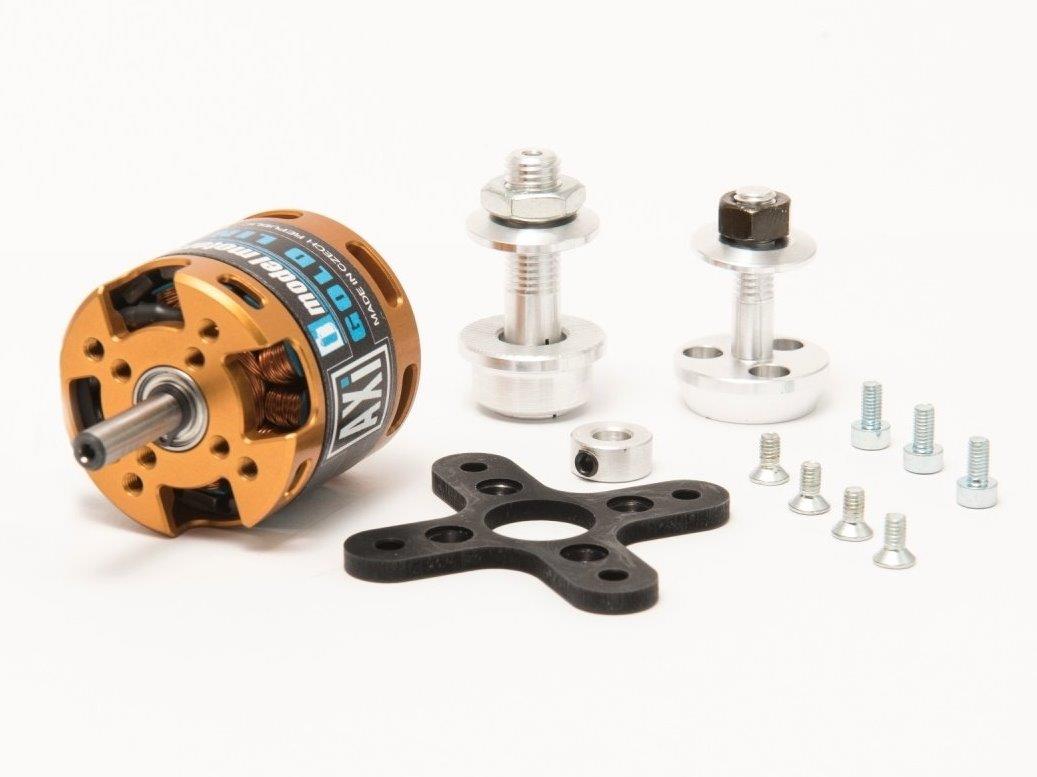

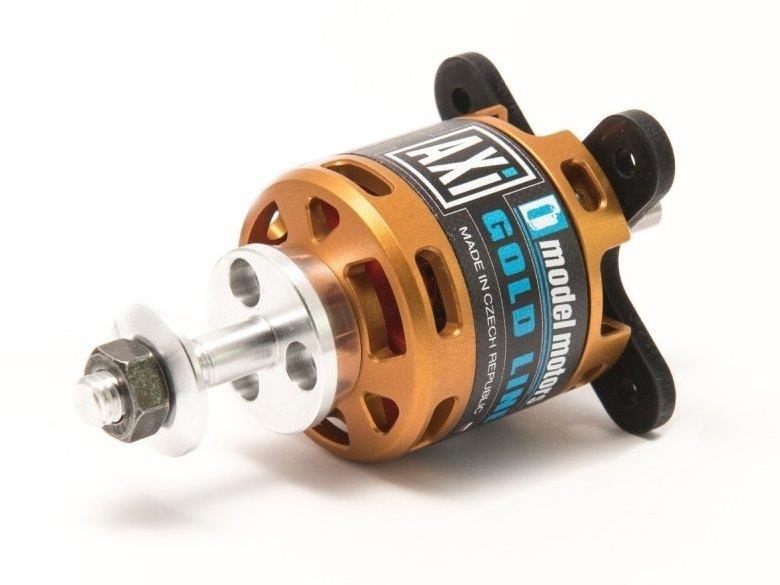

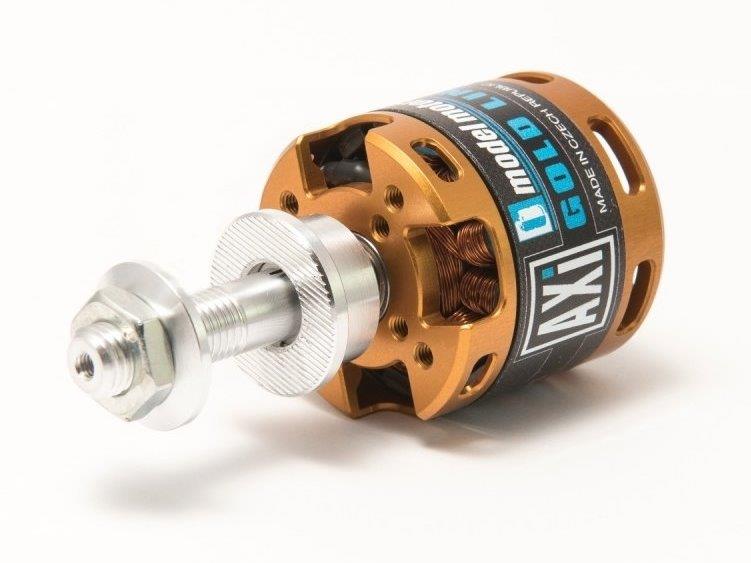

AXI 2814/20 V2 Brushless Motor
1 179,66 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 10027288
Powering LiXX cells 3 - 4
RPM/V [ot./min/V] 840
Turn count 20
Internal resistance [mOhm] 145
Open-circuit current [mA] 700
Max. efficiency [%] 85
Max. efficiency current (η>75%) [A] 8 - 17
Max. peak current (60 s) [A] 26
Max. power [W] 355

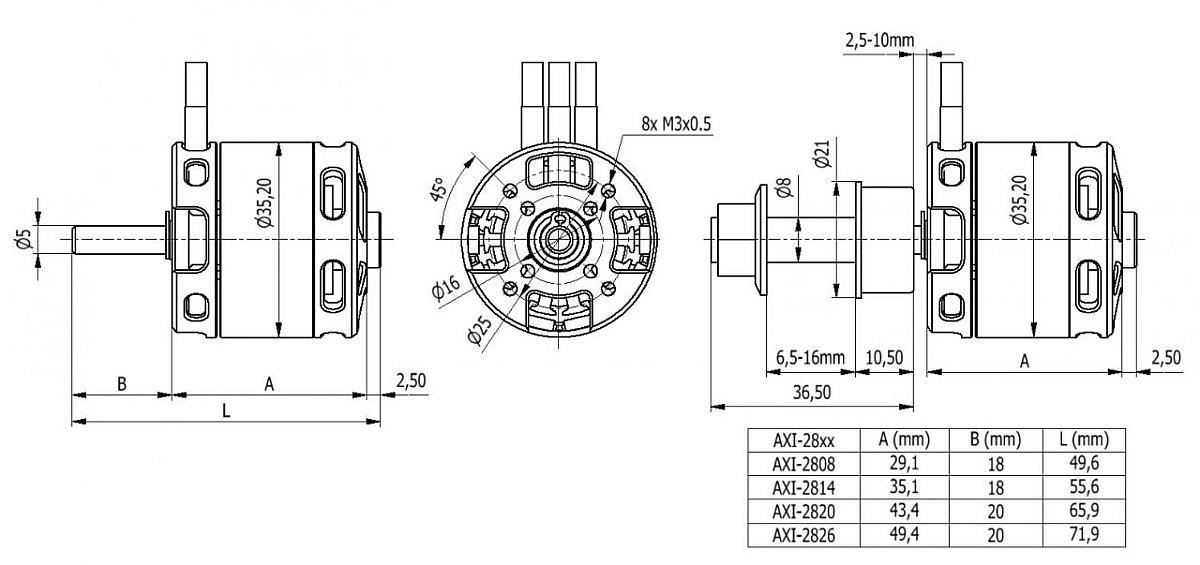

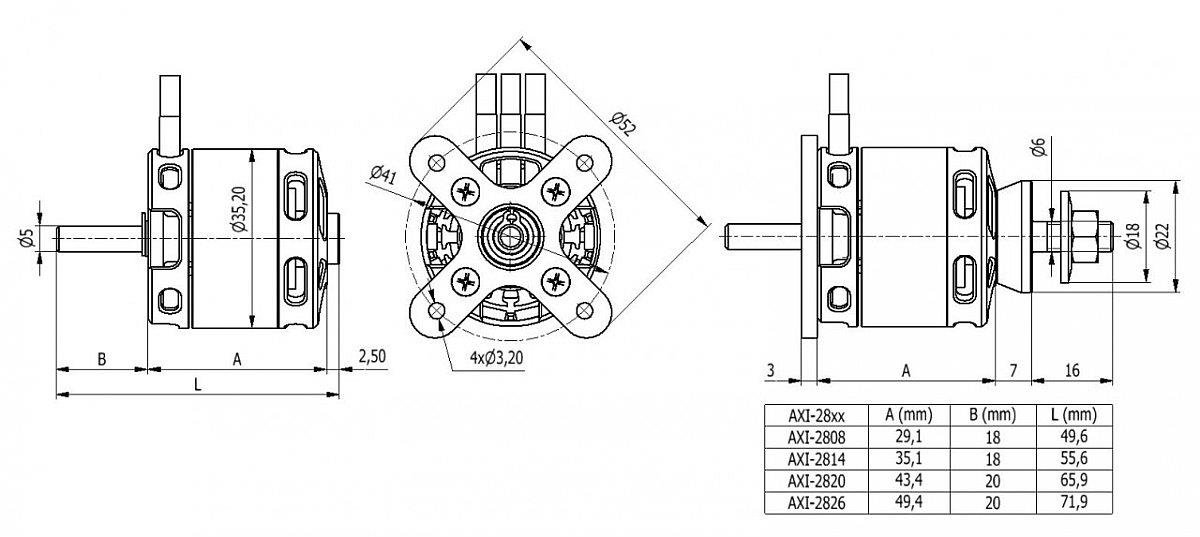

Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 30 - 40
Weight of glider (up-to) [g] 1900
Weight of trainer (up-to) [g] 1700
Weight of acrobat (up-to) [g] 1300
Doporučená vrtule 2S: 13x8"
Doporučená vrtule 3S: 11x7", 12x5", 12x6", 12x6,5"
RPM/V [ot./min/V] 840
Turn count 20
Internal resistance [mOhm] 145
Open-circuit current [mA] 700
Max. efficiency [%] 85
Max. efficiency current (η>75%) [A] 8 - 17
Max. peak current (60 s) [A] 26
Max. power [W] 355
Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 30 - 40
Weight of glider (up-to) [g] 1900
Weight of trainer (up-to) [g] 1700
Weight of acrobat (up-to) [g] 1300
Doporučená vrtule 2S: 13x8"
Doporučená vrtule 3S: 11x7", 12x5", 12x6", 12x6,5"
