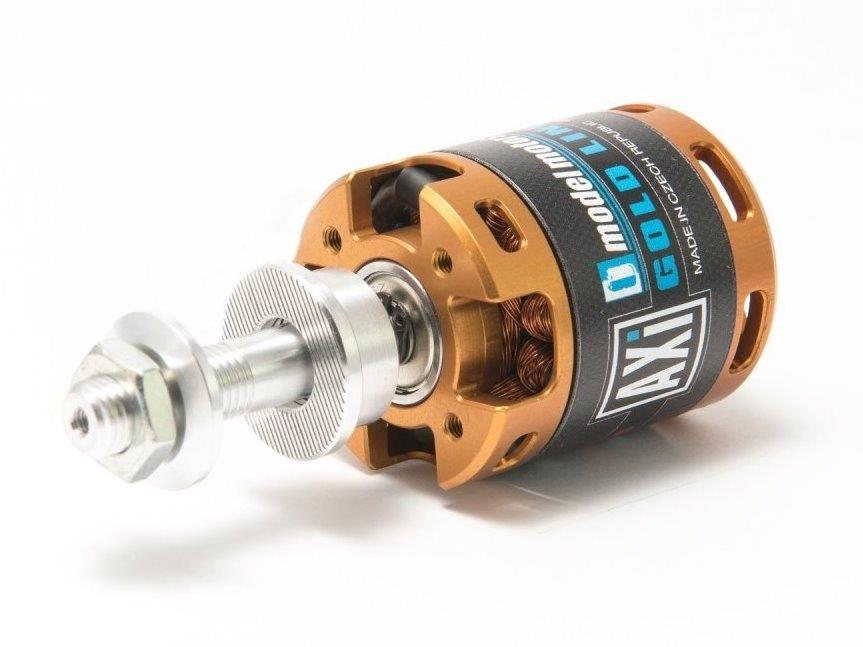

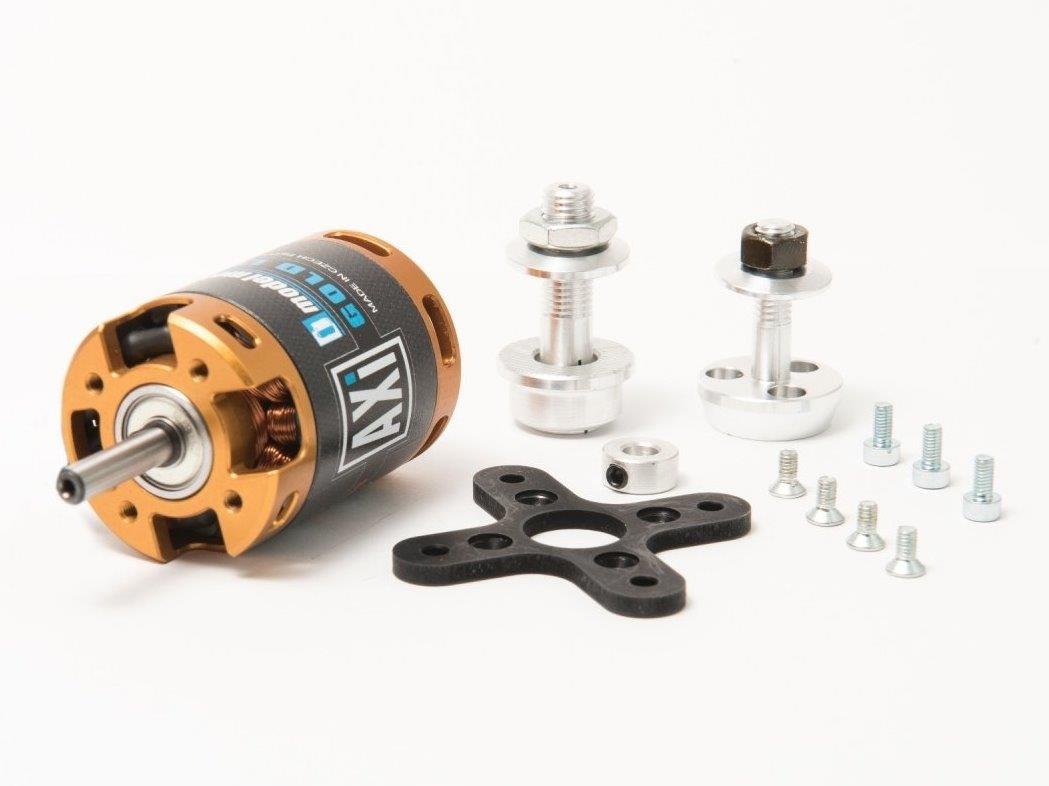

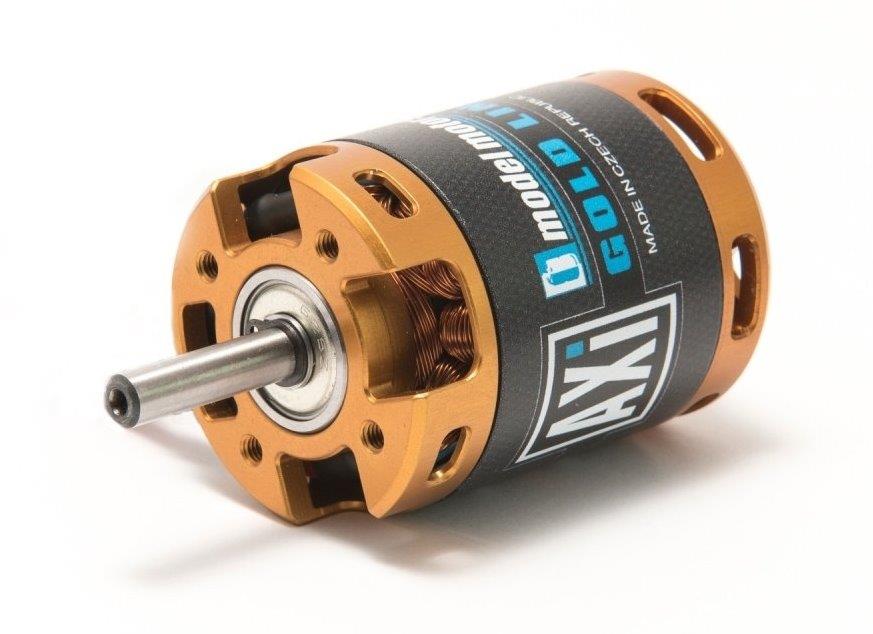

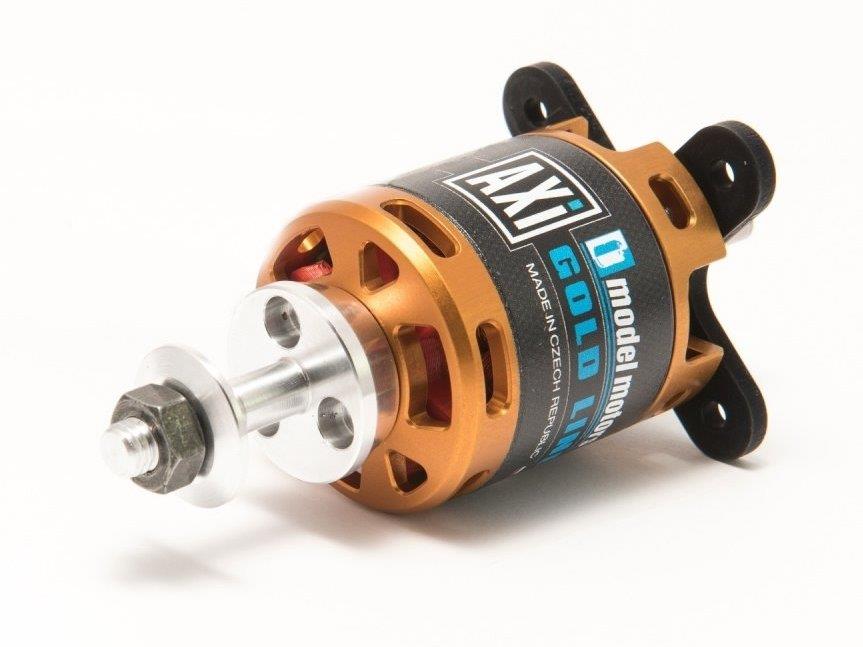

AXI 2826/12 V2 motor V2 kv 760
1 399 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 10024897
Powering LiXX cells 3 - 5
RPM/V [ot./min/V] 760
Turn count 12
Internal resistance [mOhm] 62
Open-circuit current [A] 1.3
Max. efficiency [%] 86
Max. efficiency current (η>78%) [A] 15 - 25
Max. peak current (60 s) [A] 38
Max. power [W] 655

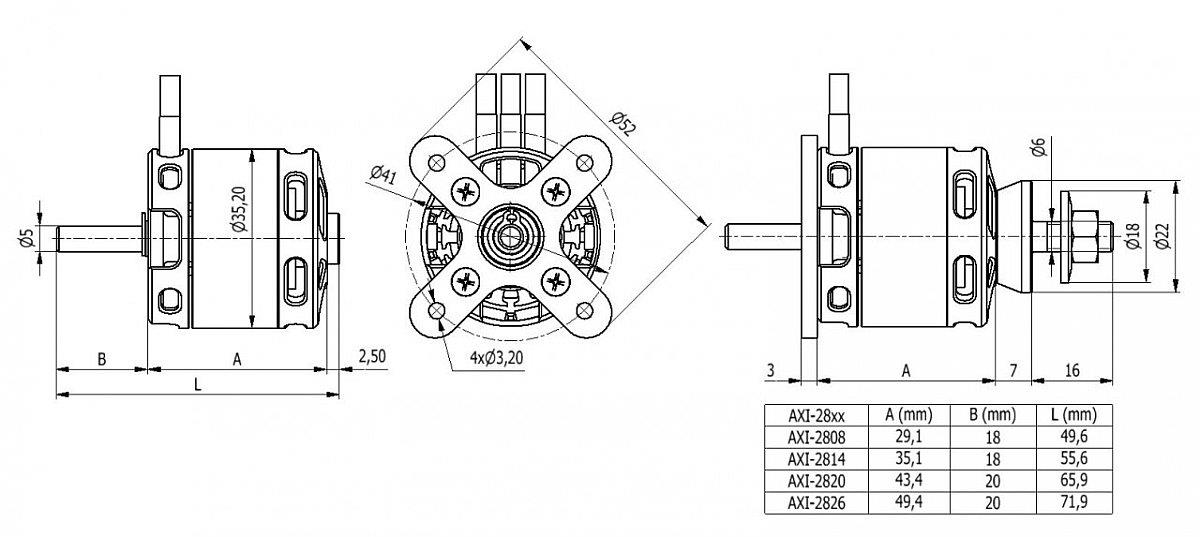

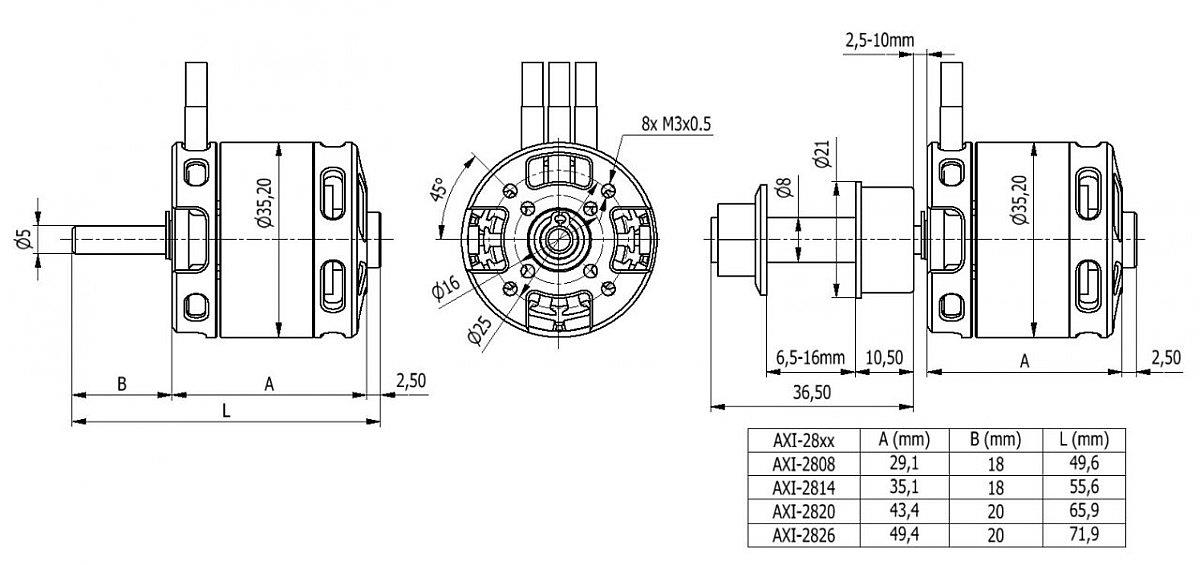

Diameter [mm] 35
Length [mm] 52
Shaft diameter [mm] 5
Weight [g] 177
Poles count 14
Timing [°] 15 - 25
ESC [A] 45 - 60
Weight of glider (up-to) [g] 3000
Weight of trainer (up-to) [g] 2600
Weight of acrobat (up-to) [g] 2500
Weight of 3D (up-to) [g] 1600
Doporučená vrtule 3S: 14x7"
Doporučená vrtule 4S: 12x6,5", 12x7", 13x8"
RPM/V [ot./min/V] 760
Turn count 12
Internal resistance [mOhm] 62
Open-circuit current [A] 1.3
Max. efficiency [%] 86
Max. efficiency current (η>78%) [A] 15 - 25
Max. peak current (60 s) [A] 38
Max. power [W] 655
Diameter [mm] 35
Length [mm] 52
Shaft diameter [mm] 5
Weight [g] 177
Poles count 14
Timing [°] 15 - 25
ESC [A] 45 - 60
Weight of glider (up-to) [g] 3000
Weight of trainer (up-to) [g] 2600
Weight of acrobat (up-to) [g] 2500
Weight of 3D (up-to) [g] 1600
Doporučená vrtule 3S: 14x7"
Doporučená vrtule 4S: 12x6,5", 12x7", 13x8"
