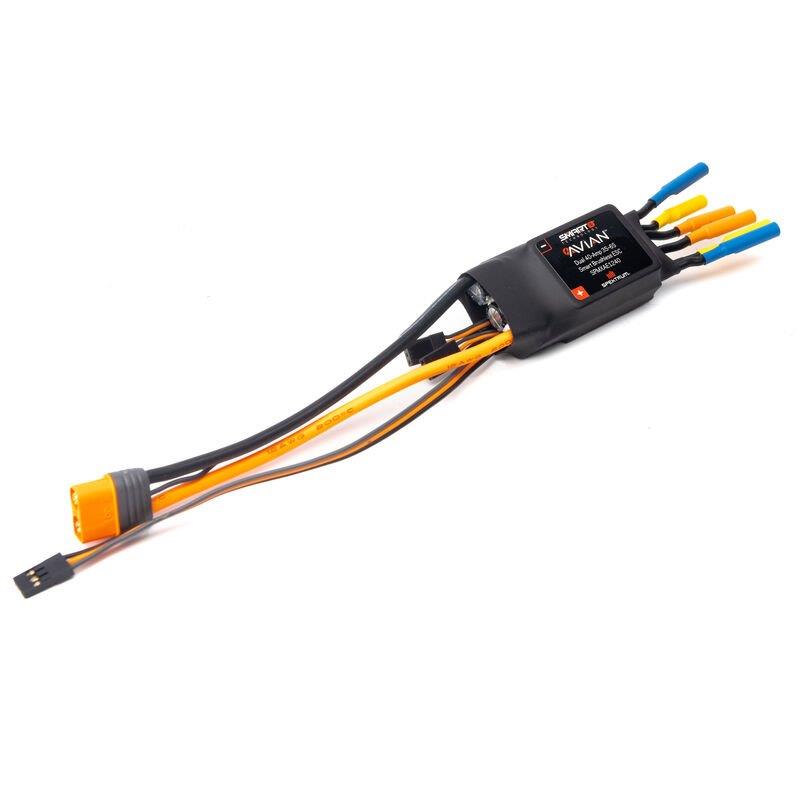

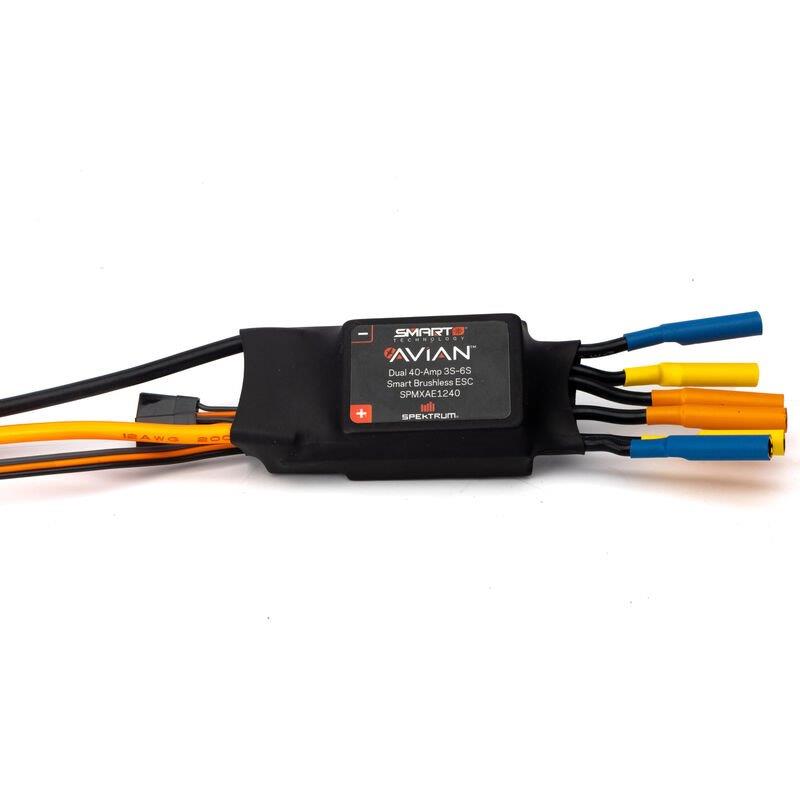

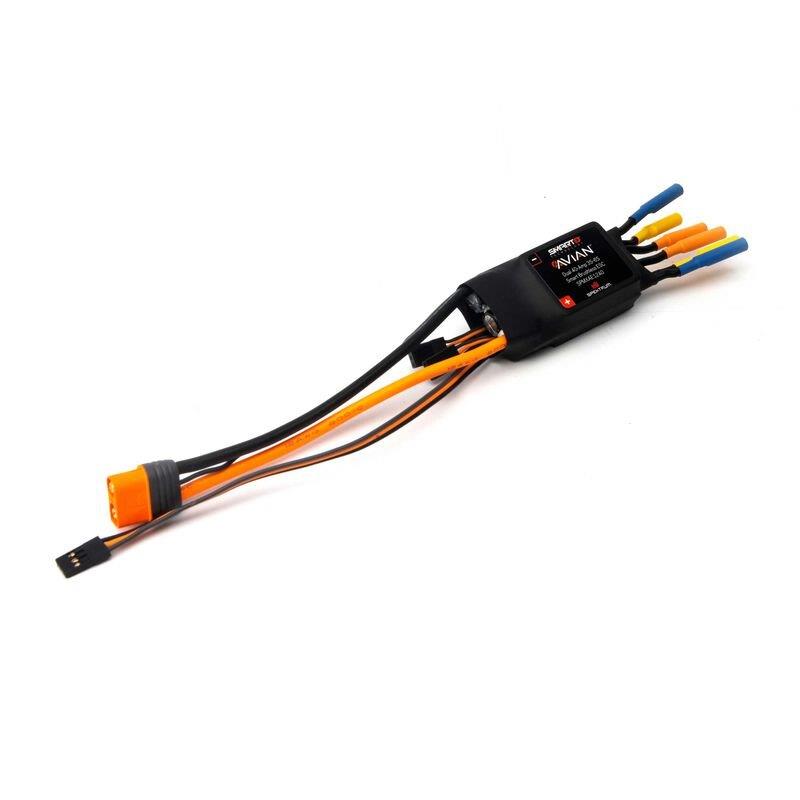

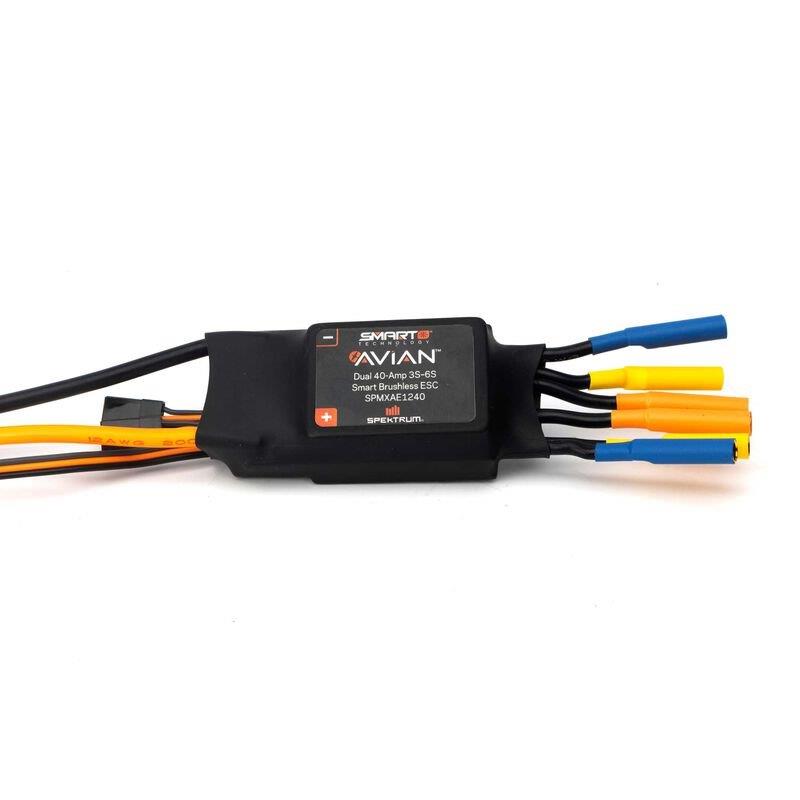

Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S
1 110 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXAE1240
Product Details
In The Box
(1) Spektrum Avian Dual 40 Amp Brushless Smart ESC, 3S - 6S
(1) Spektrum Smart Sticker Sheet
(1) Product Manual
PRODUCT DETAILS
The Spektrum Avian Smart 40A Dual Brushless ESC is the perfect upgrade for 3S-6S twin EDF jets and other twin-powered models. Like other Spektrum Avian ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.
Product Features
Smart all-in-one telemetry
2 x 40 Amp continuous current
Fast, powerful 32-bit ARM M4 processor
2 Program wires with multiple programming options:
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Compact for easy installation in most applications
Heat dissipating design
Ready to install no soldering required
High heat-resistant IC5 connector, is backwards compatible with EC5 connectors
Limited 1-year warranty
SMART TECHNOLOGY OVERVIEW
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Avian Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Forward Yes
Reverse Yes
Wire Gauge 14 AWG
Battery Input Lead IC5
Amperage 16A - 44A
BEC Type Switch-Mode
Max Input Voltage 22.2V
Connector Type IC5
ESC Type Brushless
Product Length 2.36" (60 mm)
Adjustable Timing Yes
BEC Maximum Burst Current 20A
BEC Voltage 5.0V / 7.4V Adjustable
Input Voltage 3S-6S LiPo
Motor Output Lead 4mm
Product Application Air
Product Height 0.78" (20 mm)
BEC Yes
Programmable Yes
Programming Options Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Application Air
Auto Cutoff Yes
BEC Continous Current 7
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 105g
Product Width 1.37" (35 mm)
Technology Smart
Maximum Burst Current 60A
Maximum Continuous Current 40A
