SKY RC FuriaX Supa 60A Brushless ESC combo 3100 KV
749 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 3SK30080-02
60A brushless electronic speed controller (ESC) for sensorless motors with a built-in high-performance 6V/7.4V switched BEC circuit, designed for 1:10 on-road cars, buggies, and short-course trucks when paired with the FuriaX Supa 3650-2300KV sensorless brushless motor. Powered by a 2-3S LiPo battery.

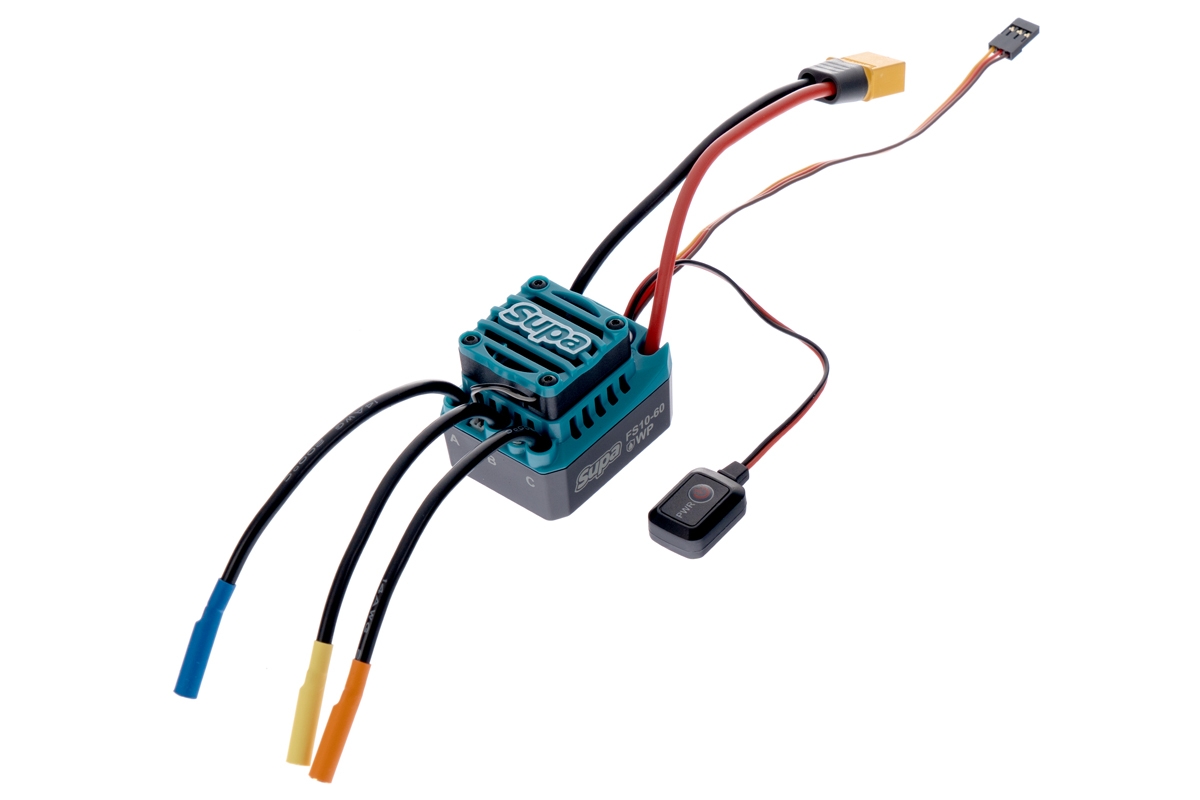

FuriaX SUPA 60A ESC
The FuriaX SUPA 60A ESC offers everything you need to fully unleash the potential of your 1:10 on-road or off-road RC car with a sensorless brushless motorwhether its an on-road touring car, an off-road buggy, or a lightweight short-course truck. It offers a wide range of 10 programmable parameters for perfect customization of the motor, chassis, and track. So, if you take driving your 1:10 brushless RC car seriously, the splash-proof (IPX4) FuriaX Supa 60A speed controller from SkyRC is the right choice for you!
Features
Specially developed for 1:10 on-road and off-road RC cars: 1:10 on-road cars, buggies, and short-course trucks with sensorless brushless motors powered by 2-3S LiPo or 6-9-cell NiMH batteries
For motors: 2S LiPo power supply: 3650-size motors with KV ≤ 6000 / 23S LiPo power supply: 3650-size motors with KV ≤ 4000
BEC voltage regulator with selectable 6.0 or 7.4 V output
Compact dimensions, lightweight, patented high-efficiency cooling system
Fan for optimal cooling
Splash-proof (IPX4 standard)
Ideal for use with SkyRC FuriaX Supa brushless motors
10 programmable parameters
Powerful switched-mode BEC regulator up to 3 A at 6.0 V
Advanced protection features (voltage protection, thermal protection, fail-safe, etc.)
Programmable via the RC Gears mobile app with Bluetooth connectivity
Programmable Parameters
General: Drive Mode, Voltage Protection, Thermal Protection, Number of Motor Poles, BEC Voltage
Throttle Control: Start-up, Max. Forward Power, Max. Reverse Power, Throttle Neutral Range
Brake Control: Resistor Brake Intensity
FuriaX Supa 3650-3100KV Motor
This high-performance four-pole sensorless brushless motor is ideal for tuning RC cars such as 1:10 on-road cars, off-road buggies, crawlers, and 2WD trucks. Compared to 540-size DC motors, it offers much higher power and efficiency, and can be powered by 2-3S LiPo or 6-9-cell NiMH batteries.

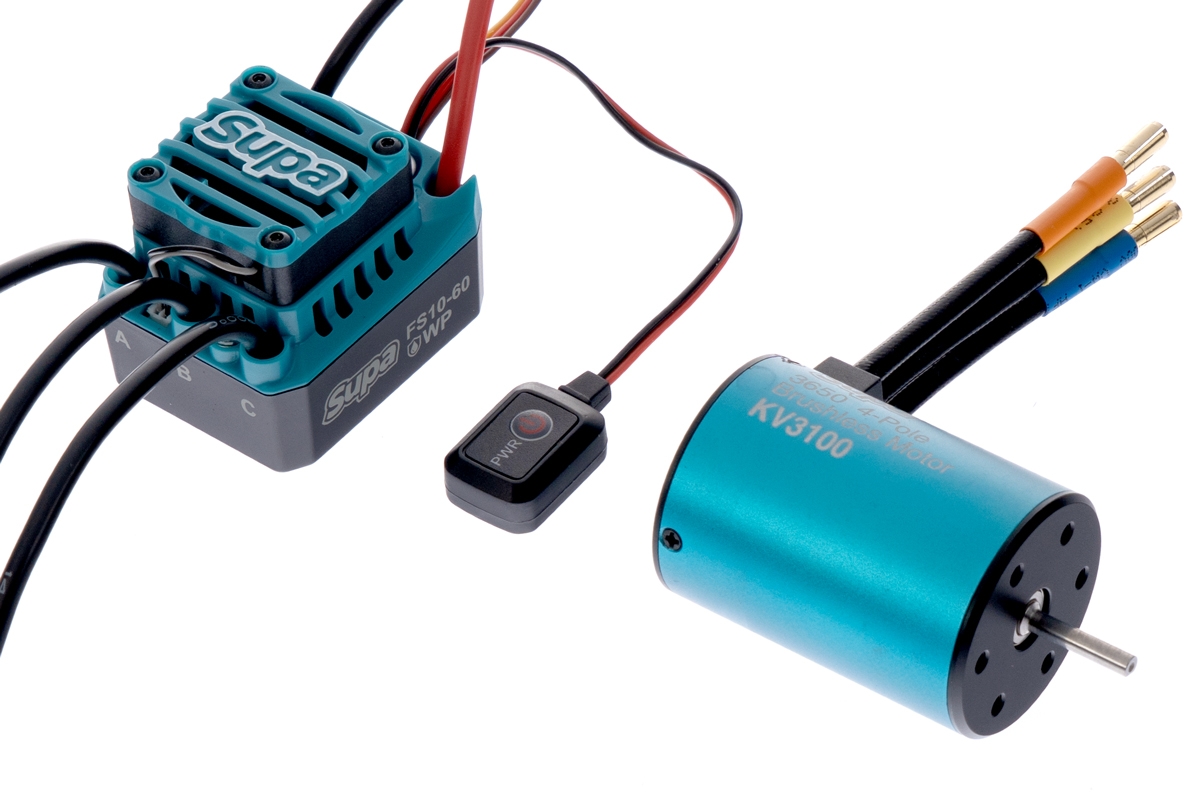

The motor and ESC combo includes: FuriaX Supa 60A ESC with cables, FuriaX Supa 3650-3100 motor, and user manual.
Used for Car
Type: AC
Constant current [A]: 60
Max. peak current [A]: 360
Li-Po [čl.]: 2 - 3
BEC voltage [V]: 6 - 7.4
Length [mm]: 48
Width [mm]: 38
Height [mm]: 38.5
Weight [g]: 100
Control: two-way
Sensor imputs: No
Programmable: Yes
Water resistance: Splash-resistant
Motor type: AC
RPM/V [ot./min/V]: 3100
Li-Po [čl.]: 2 - 3
Poles count: 4
Diameter [mm]: 36
Length [mm]: 50
Shaft diameter [mm]: 3.175
Weight [g]: 180
Timing [°]: 0
Hall sensor: No
