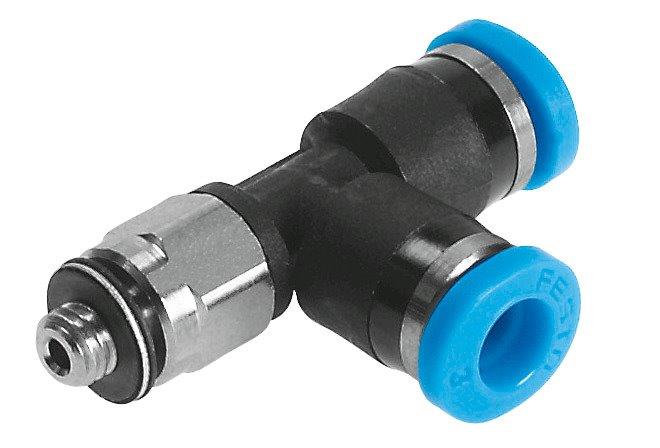

Festo M3 T- special för 4mm slang

Technical Data
• SizeMini
• Nominal size1.1 mm
• Type of seal on screwed plugSealing ring
• Mounting positionoptional
• DesignT-shape, additional push-in connector, lengthwise
• Size of pack10
• DesignPush-pull principle
• Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range-0.95 bar ... 6 bar
• Operating pressure complete temperature range-13.775 psi ... 87 psi
• Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure-0.95 bar ... 14 bar
• Temperature-dependent operating pressure-13.775 psi ... 203 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-10 °C ... 80 °C
• Nominal torque0.48 Nm
• Tolerance for nominal tightening torque± 55%
• Product weight4 g
• Number of outputs2
• Number of supply lines1
• Type of mountingExternal hexagon, A/F 8 mm
• Pneumatic connection, port 1Male thread M3
• Pneumatic connection, port 2For tubing outside diameter of 4 mm
• Colour of release ringBlue
• Material screwed plugNickel-plated brass
• Note on materialsRoHS-compliant
• Material housingPBT
• Material release ringPOM
• Material tubing sealNBR
• Material tubing clamp componentHigh-alloy stainless steel
