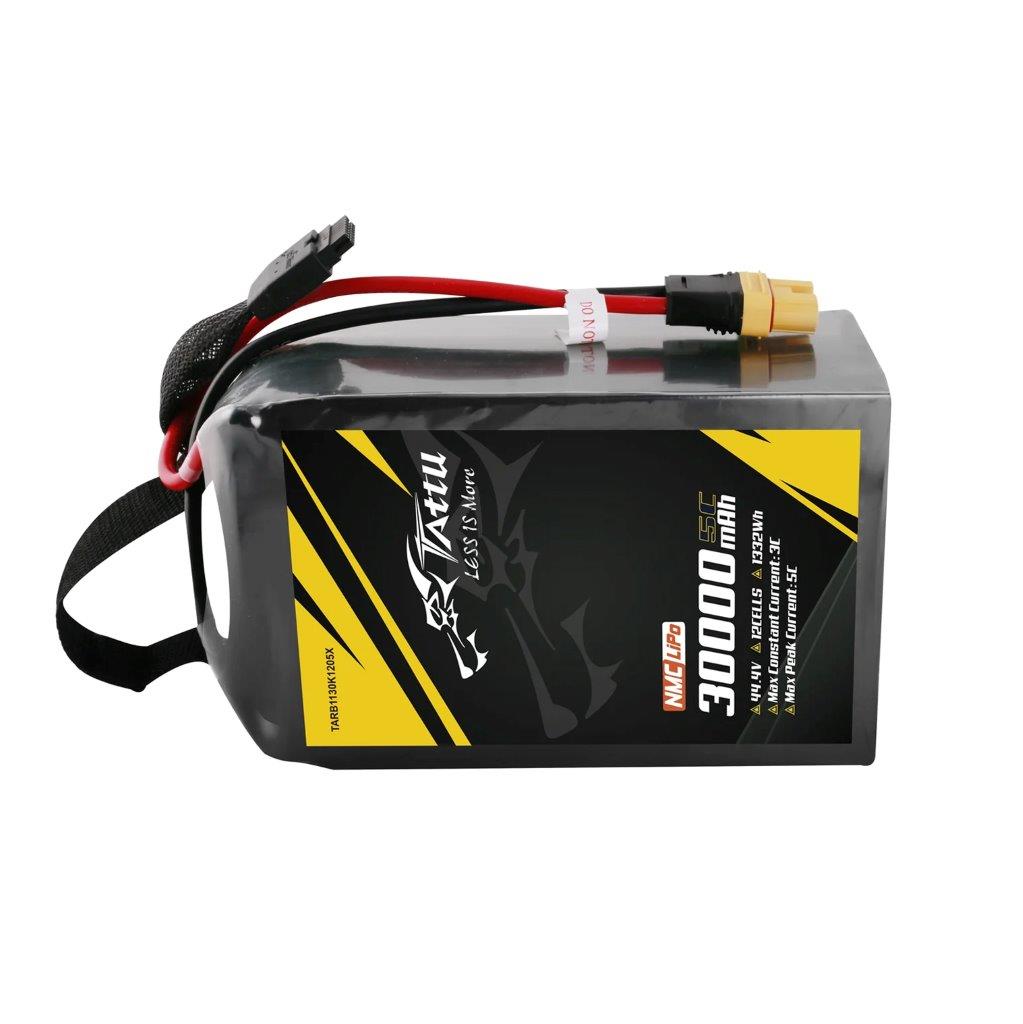

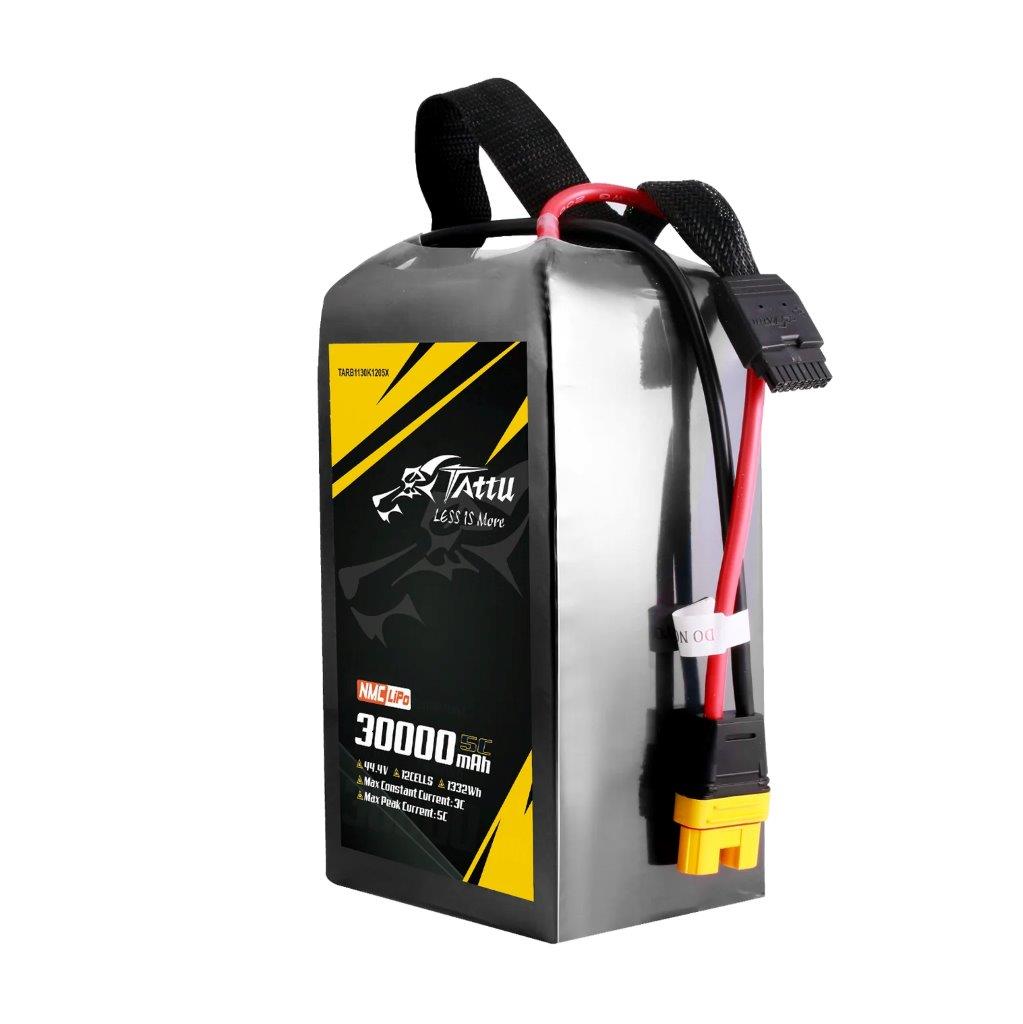

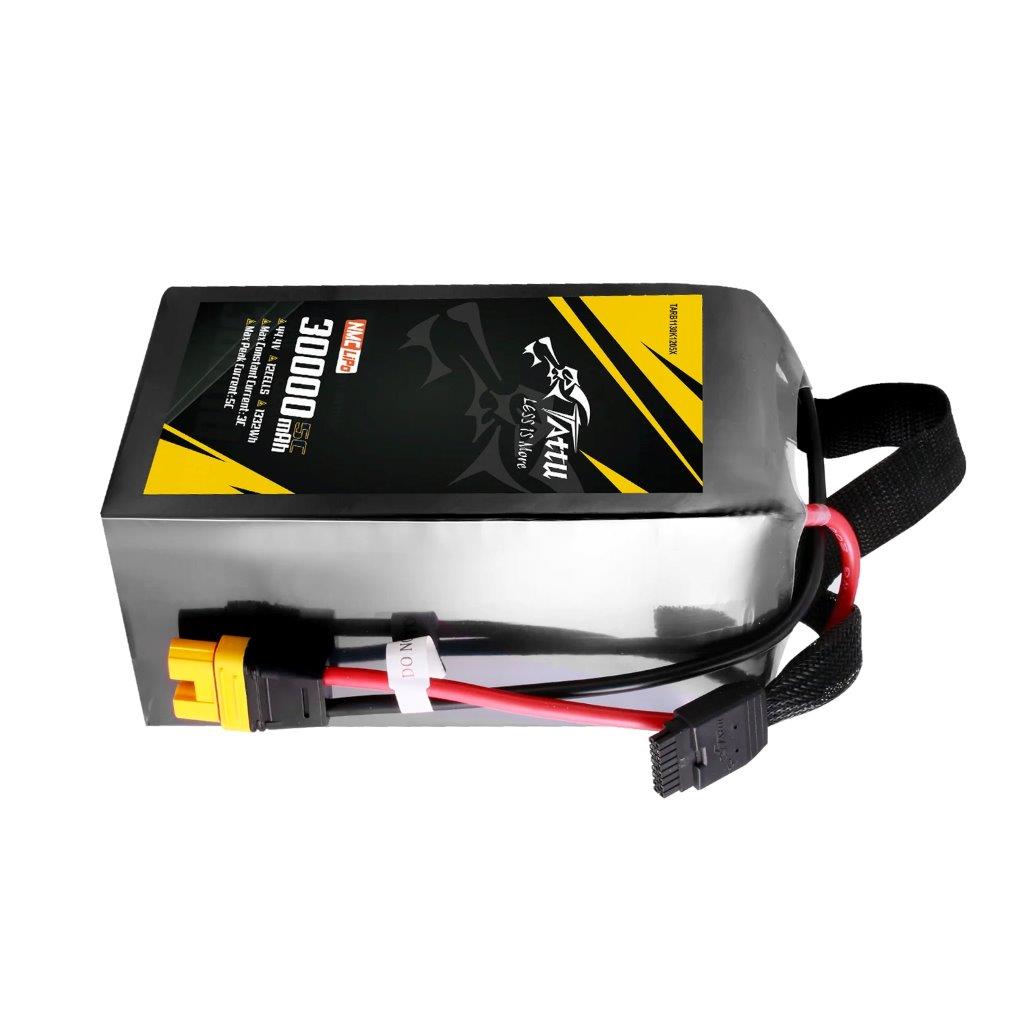

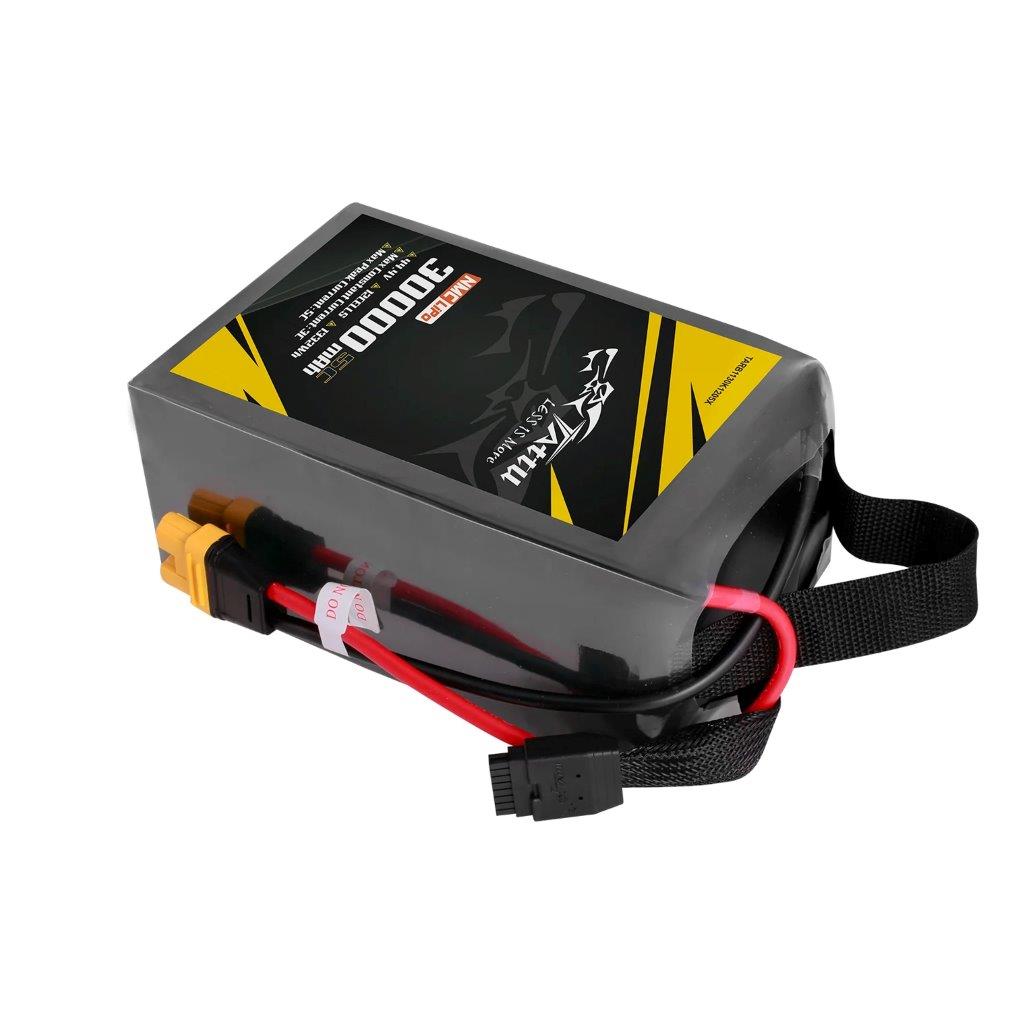

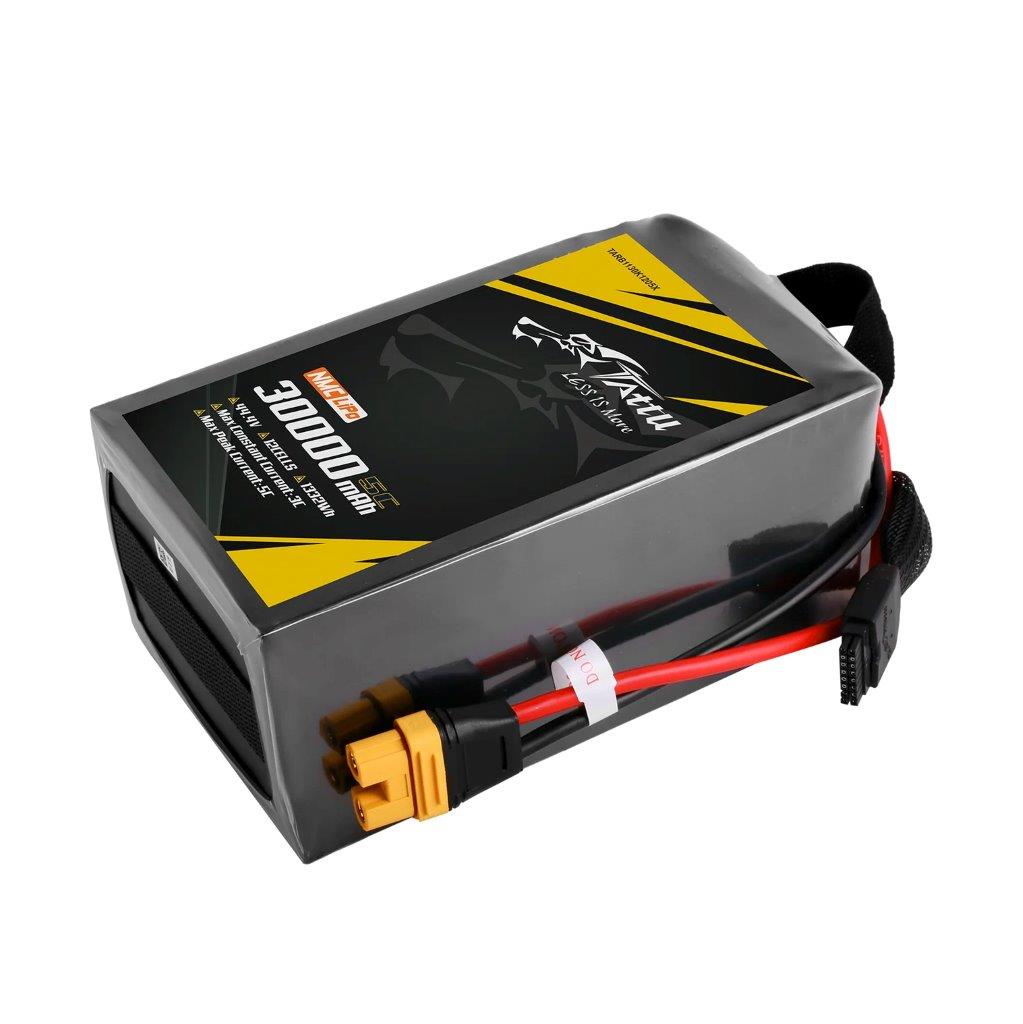

GensAce Tattu Semi-solid 30000mAh 5C 44.4V 12S1P Lipo Battery Pack, AS150U Plug
14 505 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: TARB1130K1205X
Description
Tattu Semi-solid State 30000mAh 5C 44.4V 12S1P Lipo Battery is a new kind of Semi-solid lipo battery with high energy density and long service life. It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications. These drones typically require a nominal discharge current of 1-3C, and this batterys lightweight design, compact size, and extended flight time fully meet those demands.
Battery Specifications:
Capacity: 30000mAh
Voltage: 44.4V/12S
Max Constant Current: 3C
Max Peak Current: 5C
NET Weight(±20g): 4900g
Size: 212*90.5*132mm
Discharge Connector Type: AS150U-F
Balancer Connector Type: Molex-430251600
Discharge Wire: 8# 250mm
Charge Wire: 22# 85mm
1. Energy Density:
284.62Wh/kg This is a high energy density, suitable for applications where weight and energy storage are critical.
2. Safety Performance:
Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the batterys operating limits.
3. Discharge Rate:
Max Constant Current: 3C
Max Peak Current: 5C (for < 3 seconds)
These rates indicate the batterys ability to deliver power quickly and efficiently
4. Cycle Life:
Over 500 cycles The battery maintains its performance over a significant number of charge-discharge cycles.
Technical Features:
1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the batterys capacity and cycling stability.
3. Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Charger:
Recommended use of the Tattu matching charger: TA3200
Tattu TA3200 Dual-channel Smart Charger for 6S-14S LiPo Battery
Caution:
Don't over-charge; or over-discharge batteries.
Don't put it besides the high-temperature condition.
Don't throw it into the fire.
Don't throw it into the water.
