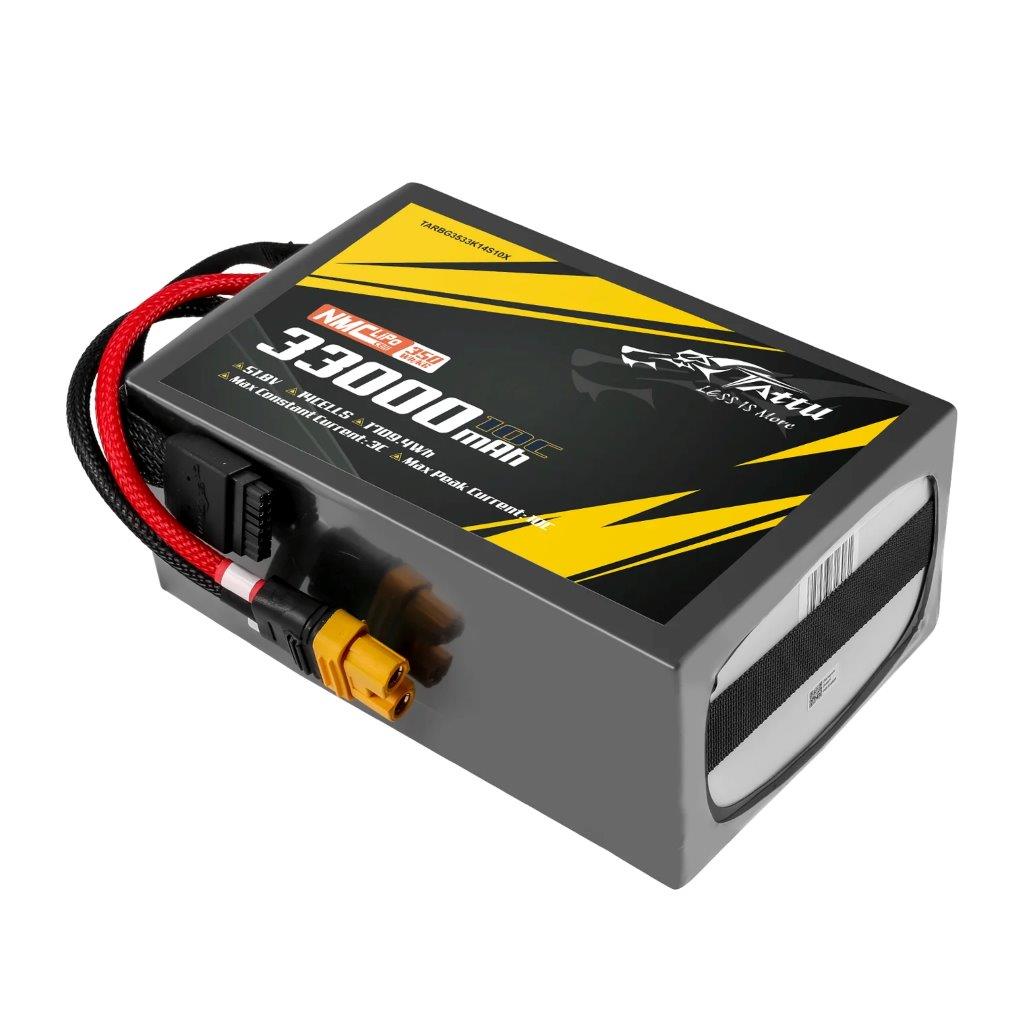

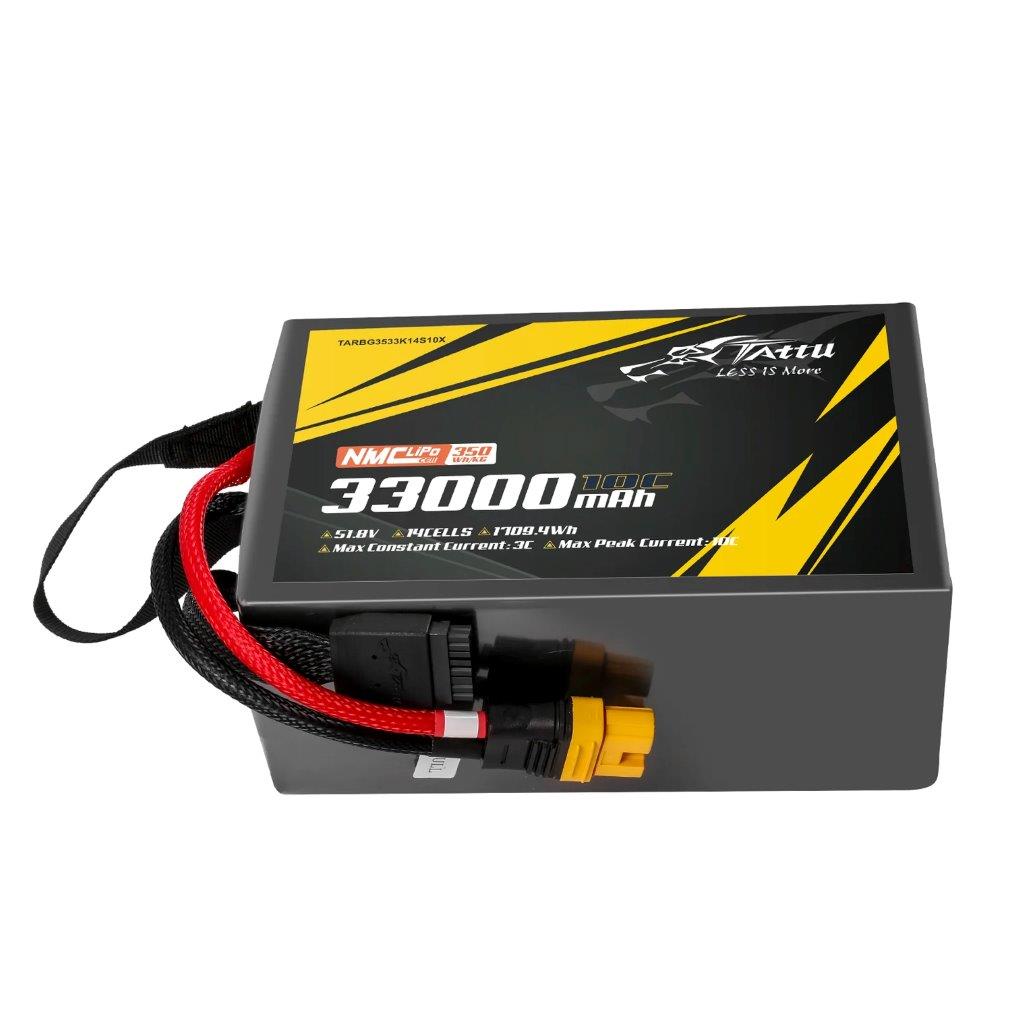

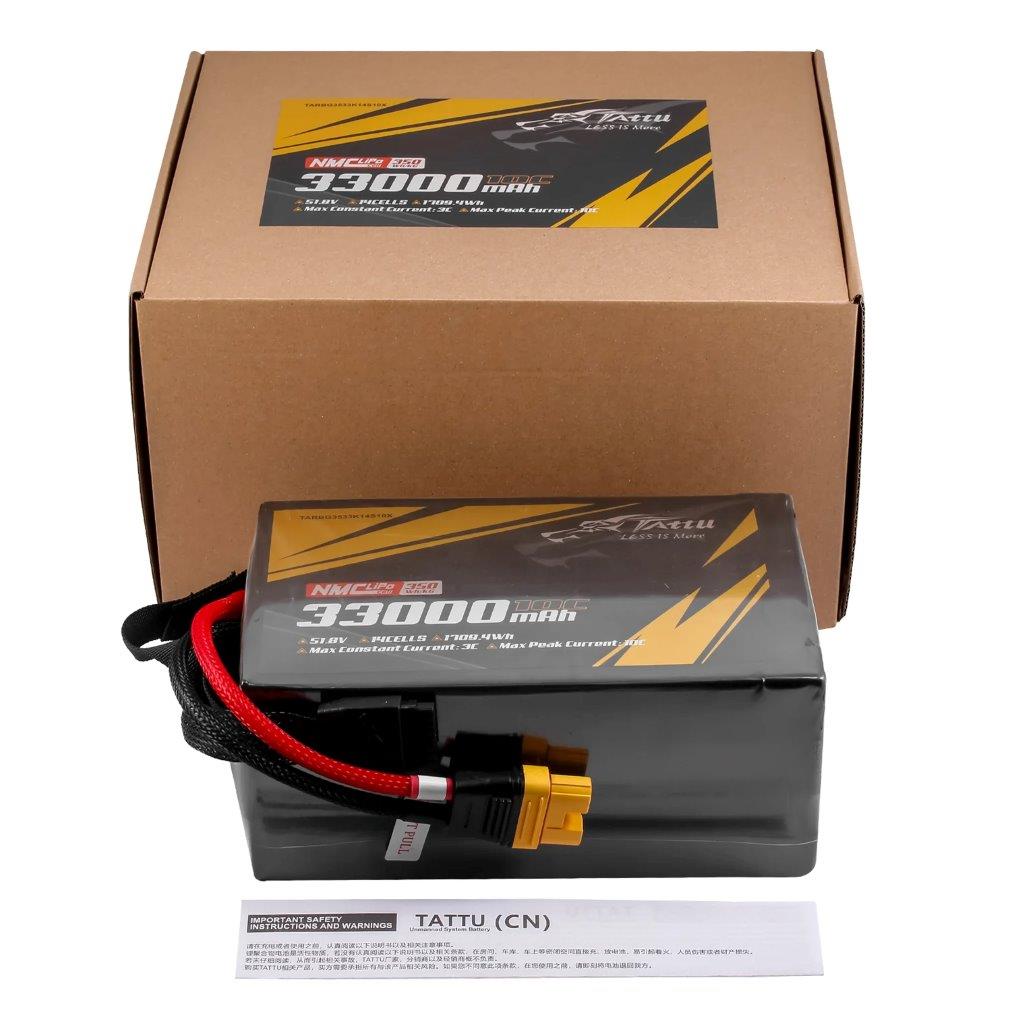

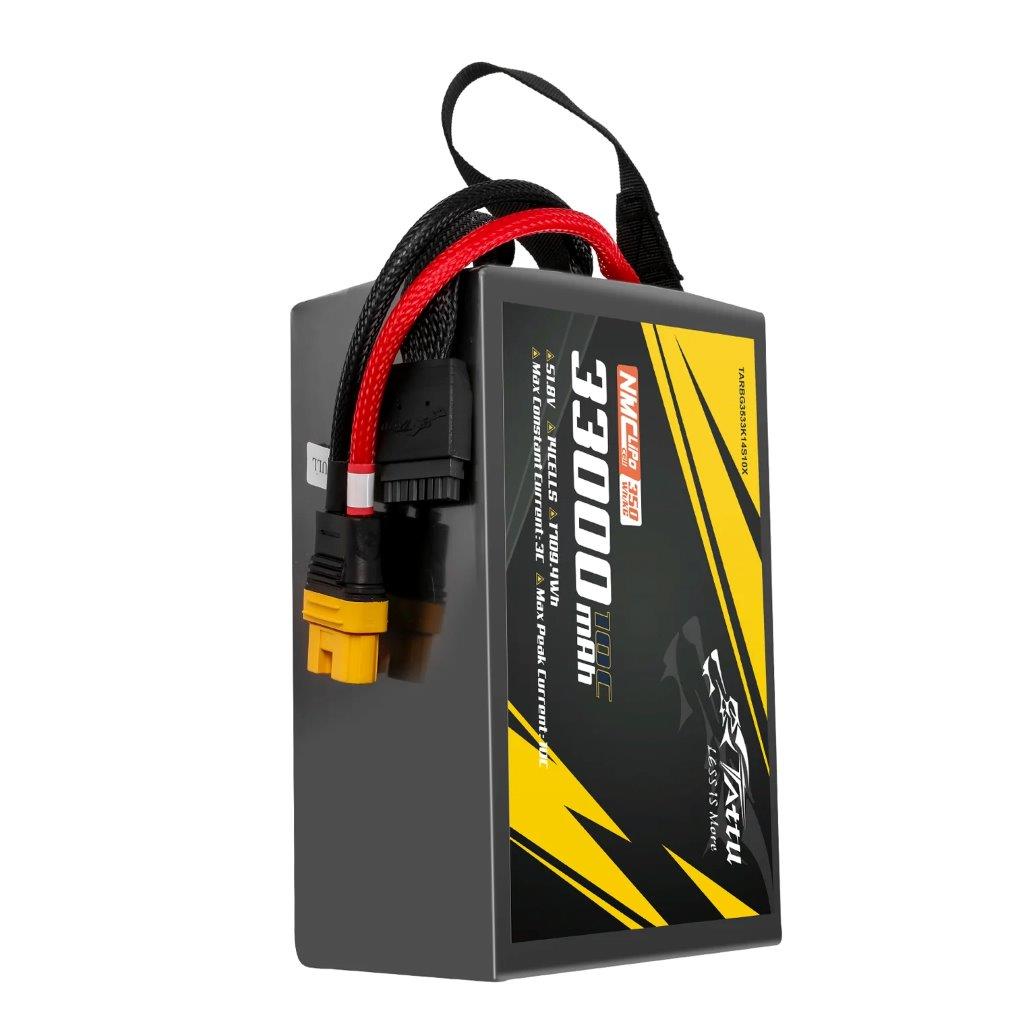

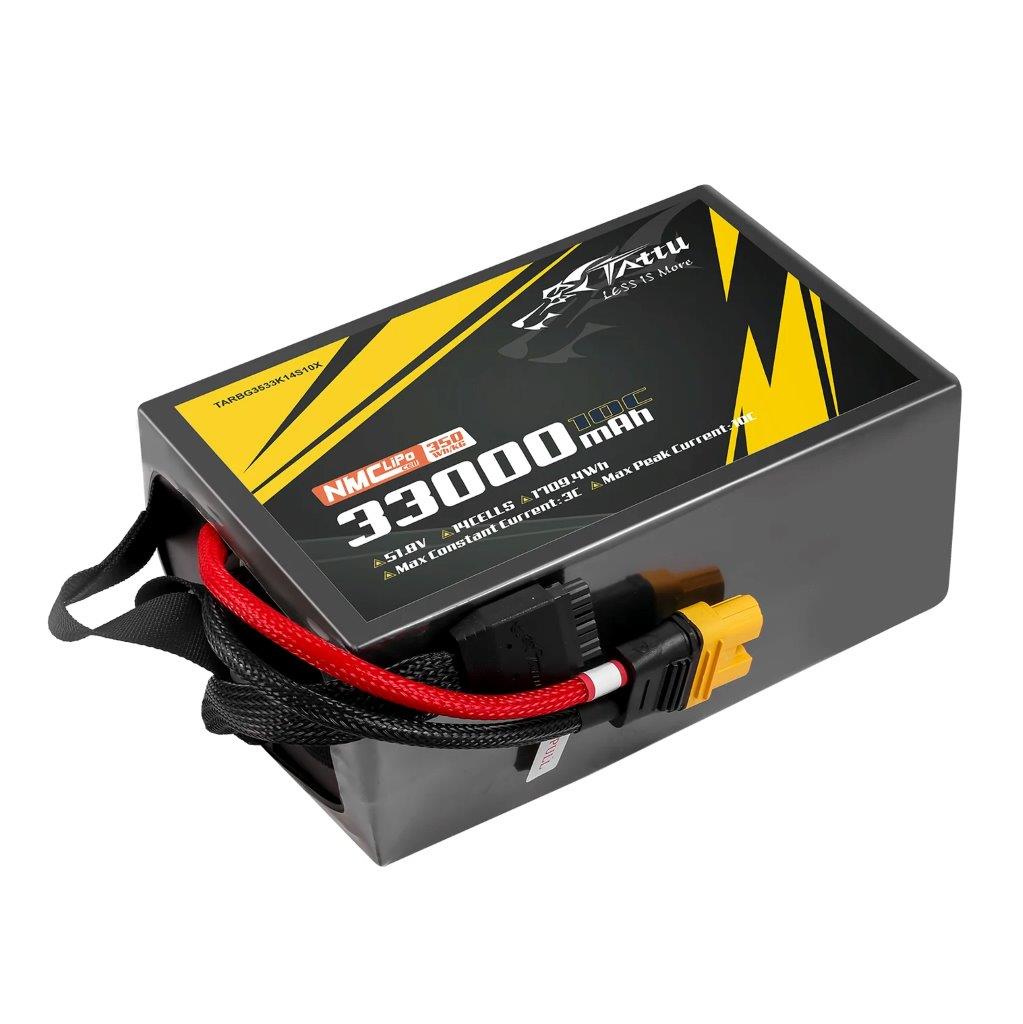

Tattu Semi-solid 350Wh/kg 33000mAh 10C 51.8V 14S1P Lipo Battery Pack w/ AS150U-F
20 179 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: TARBG3533K14S10X
Description
The Tattu Semi-solid state 350Wh/kg 33000mAh 51.8V 10C 14S1P Lipo Battery is a revolutionary semi-solid lithium battery, featuring high energy density and long service life.
Compared with traditional lithium batteries, Tattu Semi-solid State battery has a higher energy and lighter weight, can increase the battery endurance by 30% and cycle life more than of 500 (90% initial capacity). It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications.
These drones typically require a nominal discharge current of 1-3C, and this batterys lightweight design, compact size, and extended flight time fully meet those demands.
Battery Specifications:
1. Capacity: 33000mAh
2. Voltage: 51.8V/14S
3. Max Peak Current: 10C
4. Net Weight: 5486.5g (±20g)
5. Size: 213*91*141mm
6. Discharge Connector Type: AS150U-F
7. Balancer Connector Type: Molex-430251600
Features:
1. Energy Density:
350Wh/kg This is a high energy density, suitable for applications where weight and energy storage are critical.
2. Safety Performance:
Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the batterys operating limits.
3. Discharge Rate:
Max Constant Current: 3C
Max Peak Current: 10C (for < 3 seconds)
These rates indicate the batterys ability to deliver power quickly and efficiently.
4. Cycle Life:
Over 500 cycles The battery maintains its performance over a significant number of charge-discharge cycles.
Technical Features:
1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the batterys capacity and cycling stability.
3. Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Charger:
Recommended use of the Tattu matching charger: TA3200
Tattu TA3200 Dual-channel Smart Charger for 6S-14S LiPo Battery
Caution:
Don't over-charge; or over-discharge batteries.
Don't put it besides the high-temperature condition.
Don't throw it into the fire.
Don't throw it into the water.
