Beskrivning
Art.nr: ECO0024

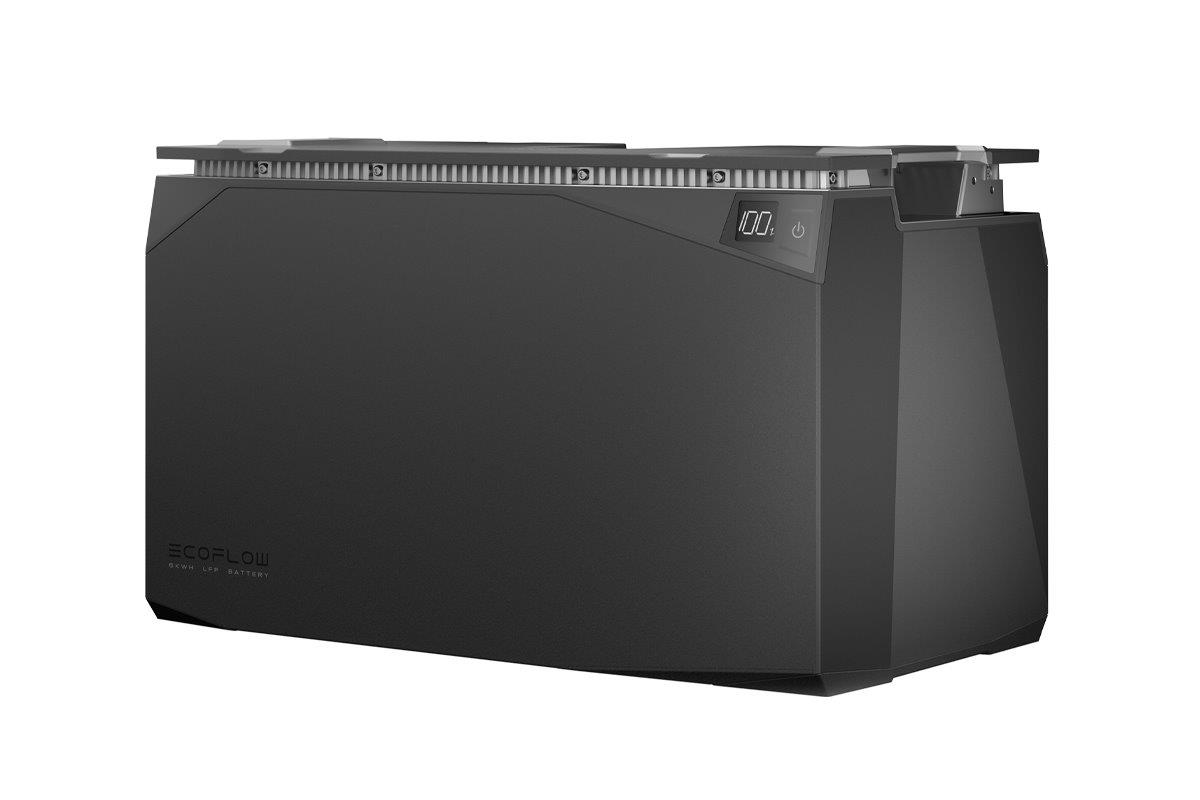

EcoFlow LFP battery 5120Wh (51.2V, 100Ah) for Power Kits
5 kWh LFP battery EcoFlow
Automatic heating:
With built-in auto-heating, you can use the batteries safely in temperatures as low as -4°F (-20°C). Charge heating is automatically activated when ambient temperature is below 0°C (32°F) and thebattery is in charging mode. You can also use the EcoFlow App to turn on auto-heating while discharging. The maximum wattage of the standard AC outlet socket is 2300W, 230V, 10A.
Possibility to expand the capacity:
Up to three 5 kWh EcoFlow accumulators can be connected to the Power Kit system. The basic capacity of 5 kWh can therefore be easily expanded to 10 kWh by connecting another battery module or to 15 kWh by connecting two additional LFP batteries.
note: LFP accumulators with a capacity of 2 kWh are also available. In the case of increasing the capacity, it is always necessary to combine LFP accumulators with the same capacity, i.e. a combination of either 2 kWh modules or 5 kWh modules.
Safety first:
If necessary, it is not a problem to replace the module even during operation of the entire system.
Advanced BMS Protection:
The Power Kits battery management system protects batteries from overvoltage, undervoltage, overcurrent, overheating and low temperature.
EcoFlow LFP batteries are stackable and pre-installed with BMS system and fuse box, saving more space and providing more reliability to your system.
Technical Parameters:
1. Capacity: 5120Wh (51.2V, 100Ah)
2. Cell Chemistry: Lithium Iron Phosphate. (LiFePO4)
3. Storage / Operating Temperature: -20°C 60°C
4. Rated voltage: 51.2V
5. Configuration: 16S1P
6. Max. continuous charging current: 80 A
7. Max. continuous discharge current: 100 A
8. Service life: 3500 cycles until guaranteed degradation to 80% of the originally stated capacity
9. Degree of protection: IP54
10. Tests and Certifications: UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
