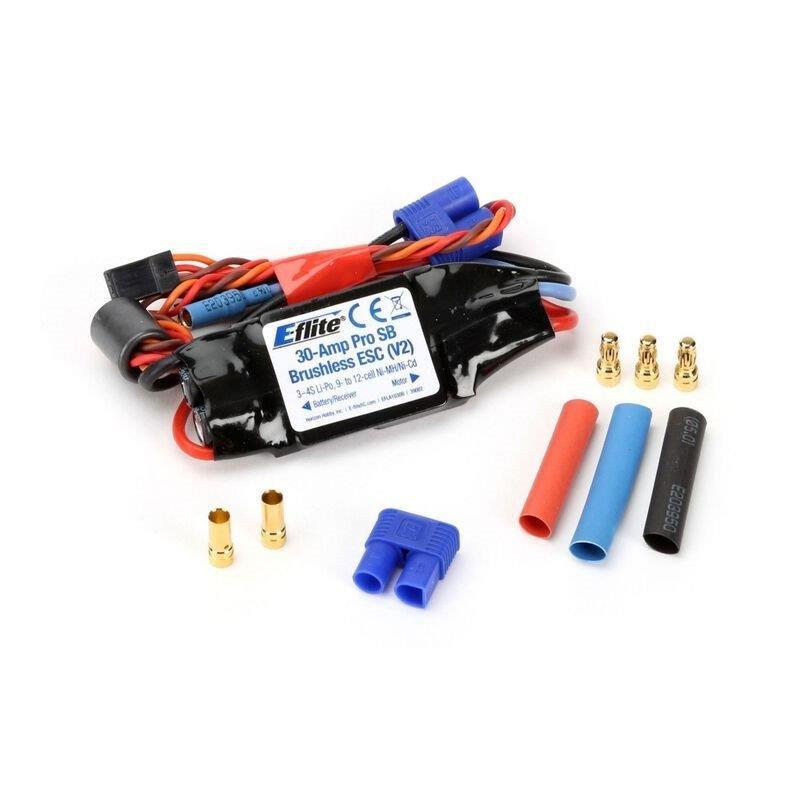

E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC V2: EC3
666,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: EFLA1030B
Product Details
Key Features
Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
3.5A continuous current, 5V Switch-Mode BEC Circuit
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-size servos with the BEC
3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms1.9ms or 1.2ms1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing - 5 user-selectable ranges for use with a large variety of brushless motors
Pre-wired connectorsE-flite EC3 connector on battery input and 3.5mm gold bullet connectors on motor output leads
Overview
The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Product Specifications:
Manufacturer # 605482079164
Maximum Burst Current 35A
Maximum Continuous Current 30A
Output Connector 3.5mm Bullet
BEC Voltage 3.5A continuous
Input Voltage 10.8?14.8V
Part Type Electronics
Brakes Yes
Programmable Yes
Connector Type EC3
Key Features
Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
3.5A continuous current, 5V Switch-Mode BEC Circuit
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-size servos with the BEC
3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms1.9ms or 1.2ms1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing - 5 user-selectable ranges for use with a large variety of brushless motors
Pre-wired connectorsE-flite EC3 connector on battery input and 3.5mm gold bullet connectors on motor output leads
Overview
The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Product Specifications:
Manufacturer # 605482079164
Maximum Burst Current 35A
Maximum Continuous Current 30A
Output Connector 3.5mm Bullet
BEC Voltage 3.5A continuous
Input Voltage 10.8?14.8V
Part Type Electronics
Brakes Yes
Programmable Yes
Connector Type EC3
