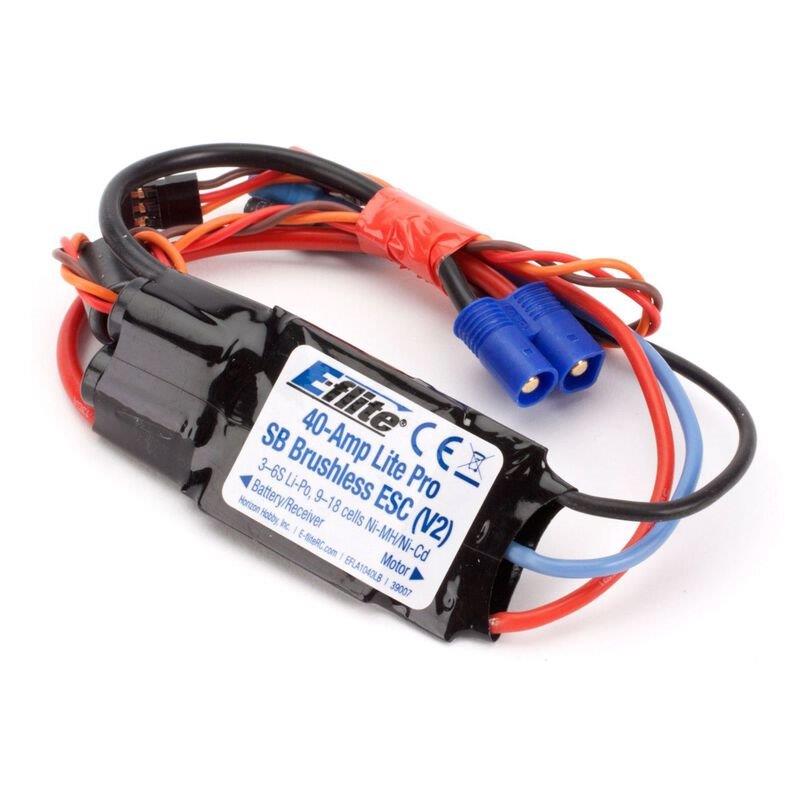

E-flite 40-Amp Lite Pro Switch-Mode BEC Brushless ESC V2: EC3
998,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: EFLA1040LB
Product Details
Key Features
Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
Stronger BEC for support of most 3-axis stabilization systems
Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms1.9ms or 1.2ms1.8ms)
Programmable soft start for helis and airplanes
Auto motor shut down if signal is lost or there is interference
Programmable timing5 user-selectable ranges, use with a large variety of brushless motors
Overview
The E-flite® 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Product Specifications:
BEC Voltage 2.5A continuous
Input Voltage 10.8?22.2V
Part Type Electronics
Output Connector 3.5mm Bullet
Connector Type EC3
Brakes Yes
Programmable Yes
Amperage 40-60
