E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC V2: EC5
1 442,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: EFLA1080B
Product Details
Key Features
Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms1.9ms or 1.2ms1.8ms)
Programmable soft start-up rate - .25 second or 1 second
Auto motor shut down if signal is lost or there is interference
Programmable timing5 user-selectable rangesuse with a large variety of brushless motors
Two operating modesAirplane or Heli

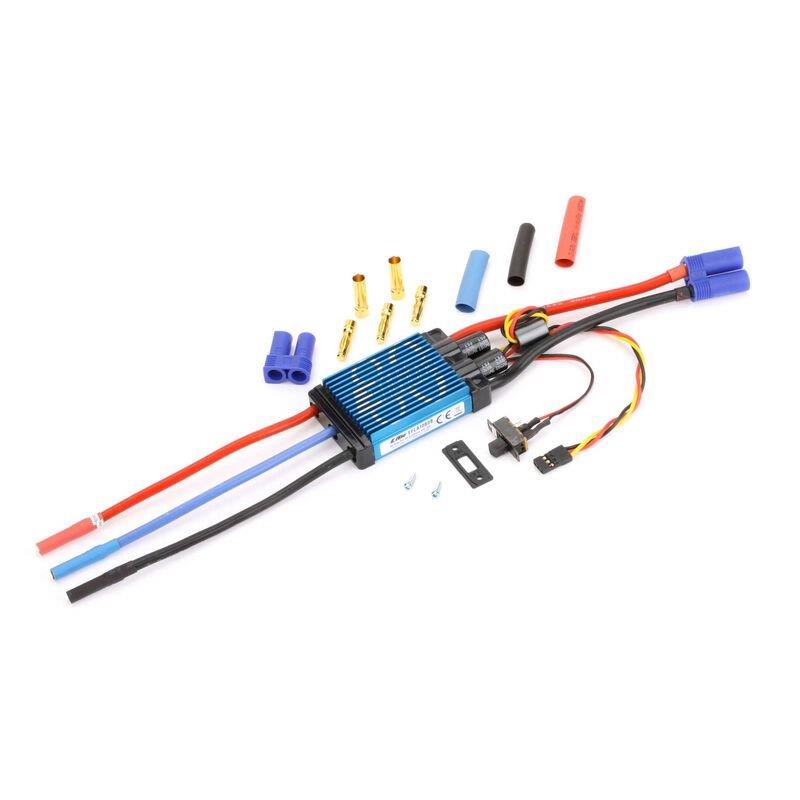

Pre-wired connectorsE-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)
Overview

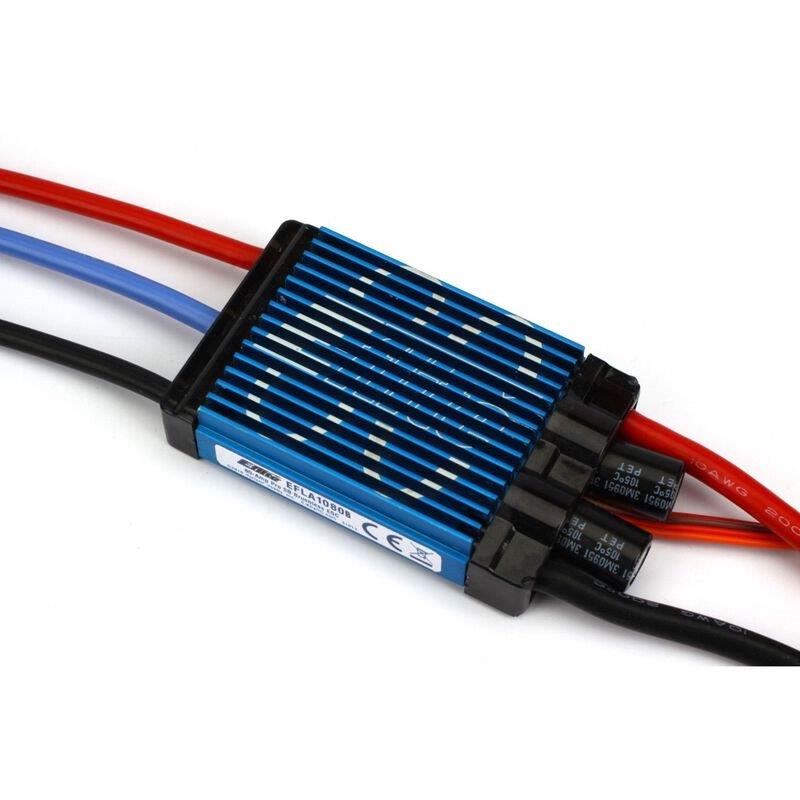

When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a pro series electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
Product Specifications:
Manufacturer # 605482053102
Amperage 60 & Up
Brakes Yes
Programmable Yes
Connector Type EC5
Forward Yes
BEC Voltage 5.5V Switch-mode
Part Type Electronics
Auto Cutoff Yes
BEC Continous Current 5A
Output Connector 4mm Bullet
Overload Protection Yes
Maximum Burst Current 100A
Time Delay Brake Yes
Key Features
Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
Programmable throttle input range (1.1ms1.9ms or 1.2ms1.8ms)
Programmable soft start-up rate - .25 second or 1 second
Auto motor shut down if signal is lost or there is interference
Programmable timing5 user-selectable rangesuse with a large variety of brushless motors
Two operating modesAirplane or Heli
Pre-wired connectorsE-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
NOTE: Not recommended to use with E-flite Power 60 Brushless Outrunner (EFLM4060B)
Overview
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a pro series electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
Product Specifications:
Manufacturer # 605482053102
Amperage 60 & Up
Brakes Yes
Programmable Yes
Connector Type EC5
Forward Yes
BEC Voltage 5.5V Switch-mode
Part Type Electronics
Auto Cutoff Yes
BEC Continous Current 5A
Output Connector 4mm Bullet
Overload Protection Yes
Maximum Burst Current 100A
Time Delay Brake Yes
