Beskrivning
Art.nr: 10024469
Powering LiXX cells 2 - 3
RPM/V [ot./min/V] 1150
Turn count 20
Internal resistance [mOhm] 135
Open-circuit current [mA] 700
Max. efficiency [%] 84
Max. efficiency current (η>75%) [A] 16 - 12
Max. peak current (60 s) [A] 18
Max. power [W] 180

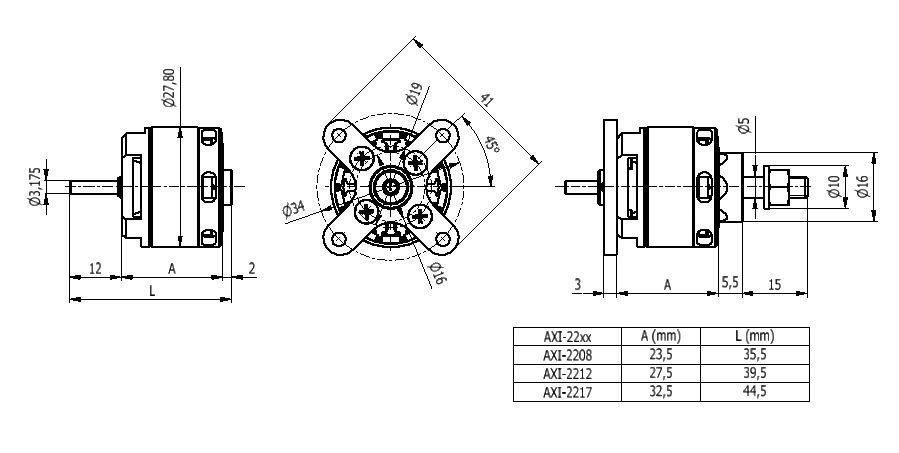

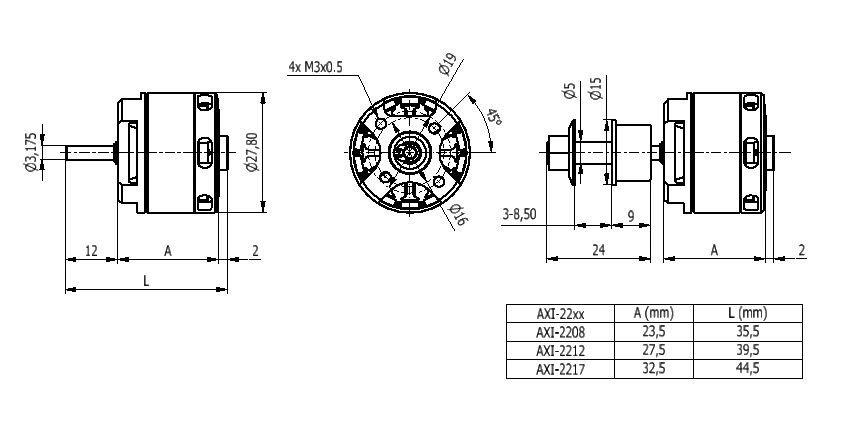

Diameter [mm] 27.7
Length [mm] 29.5
Shaft diameter [mm] 3.17
Weight [g] 56
Poles count 14
Timing [°] 15 - 25
ESC [A] 18 - 30
Weight of glider (up-to) [g] 800
Weight of trainer (up-to) [g] 750
Weight of acrobat (up-to) [g] 600
Weight of 3D (up-to) [g] 400
Doporučená vrtule 2S: 10x5"
Doporučená vrtule 3S: 9x4,5", 9x5", 10x4"
