Beskrivning
Art.nr: 10024613
Powering LiXX cells 2 - 3
RPM/V [ot./min/V] 1490
Turn count 20
Internal resistance [mOhm] 105
Open-circuit current [A] 1.3
Max. efficiency [%] 82
Max. efficiency current (η>75%) [A] 10 - 15
Max. peak current (60 s) [A] 26
Max. power [W] 256

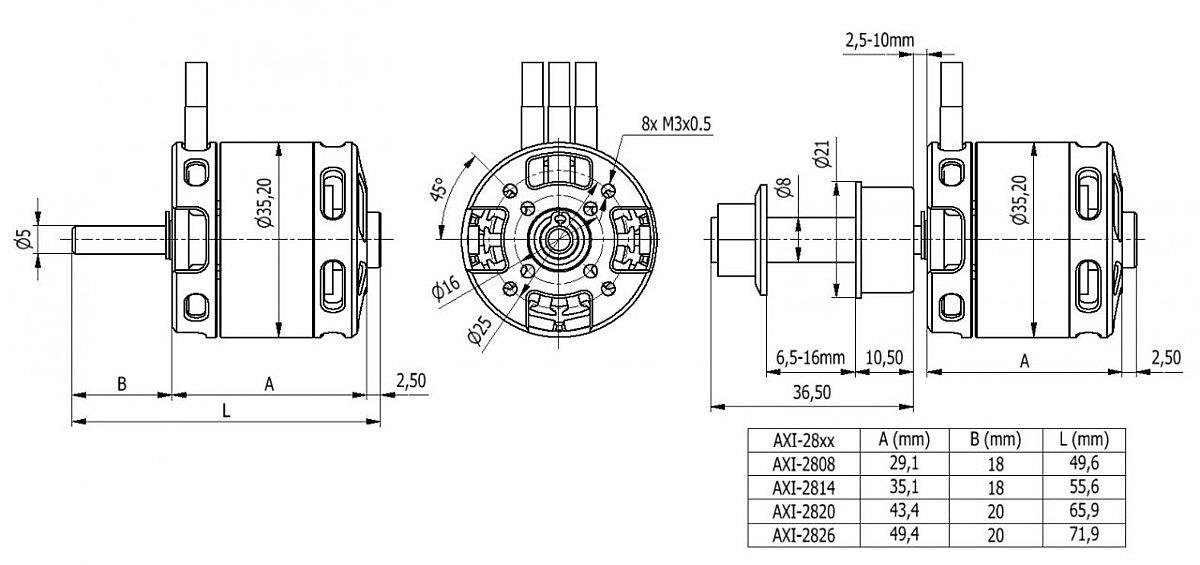

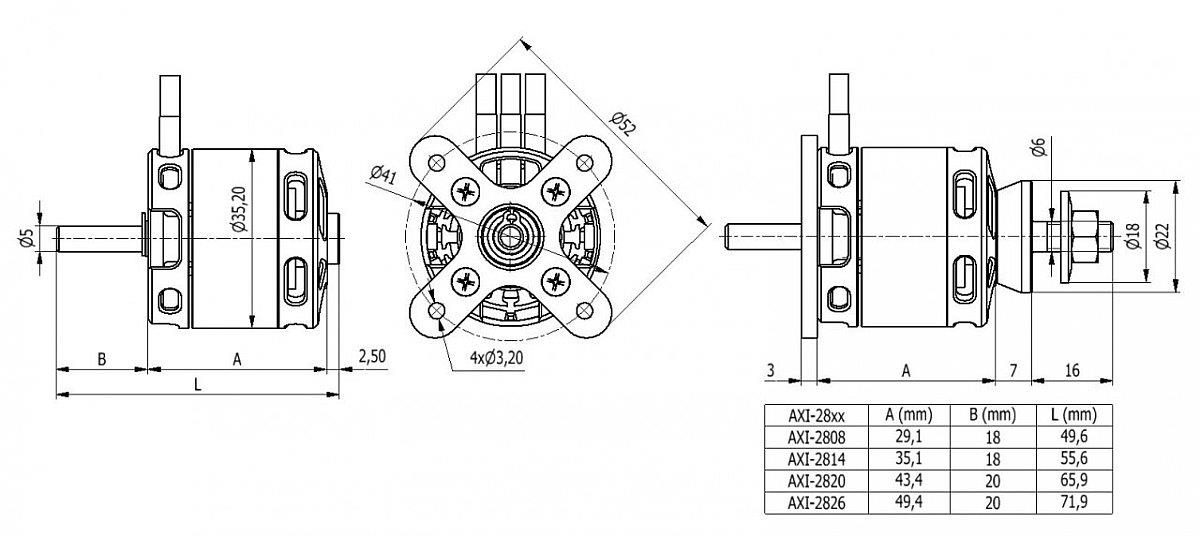

Diameter [mm] 35
Length [mm] 31.5
Shaft diameter [mm] 5
Weight [g] 77
Poles count 14
Timing [°] 15 - 25
ESC [A] 30 - 35
Weight of glider (up-to) [g] 1200
Weight of trainer (up-to) [g] 1200
Weight of acrobat (up-to) [g] 950
Weight of 3D (up-to) [g] 750
Doporučená vrtule 2S: 9,5x5"
Doporučená vrtule 3S: 7x7", 8x4"
