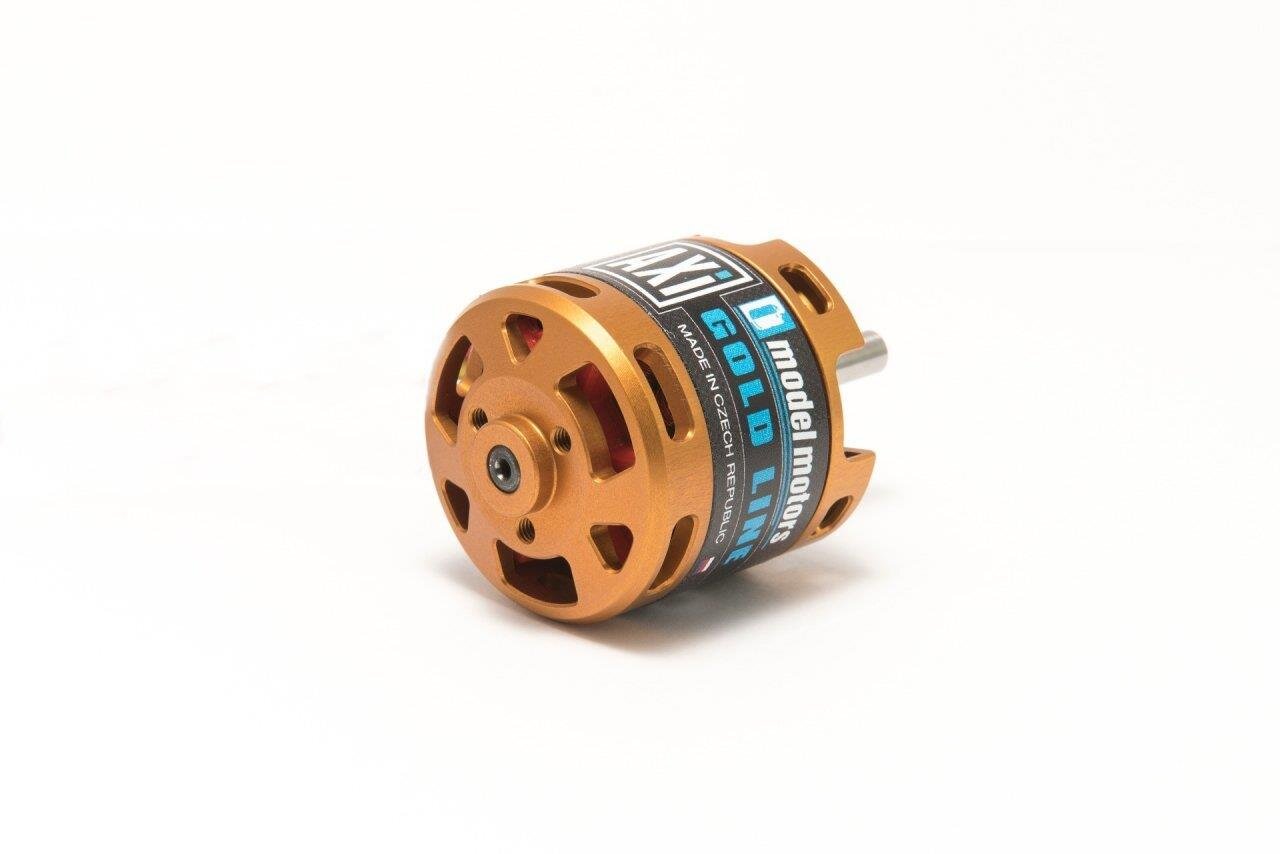

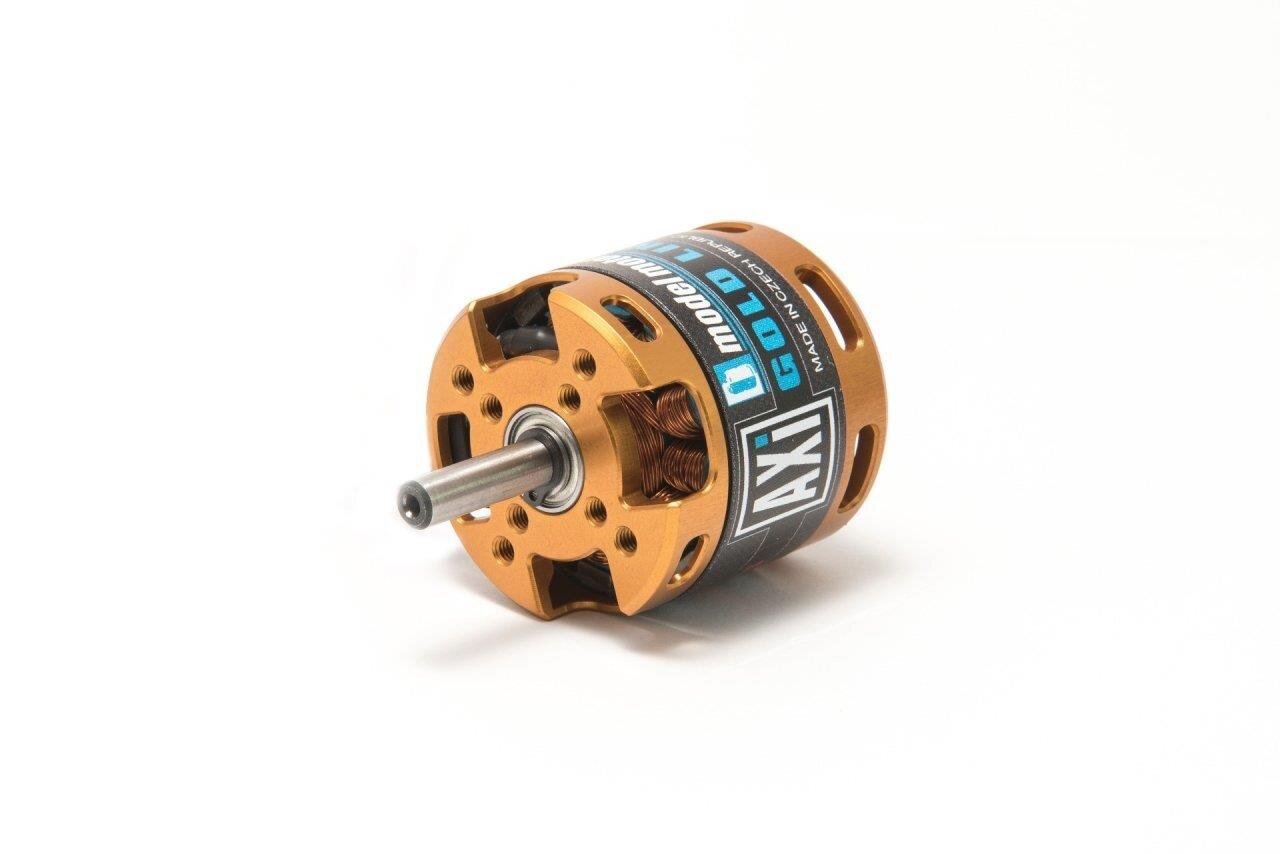

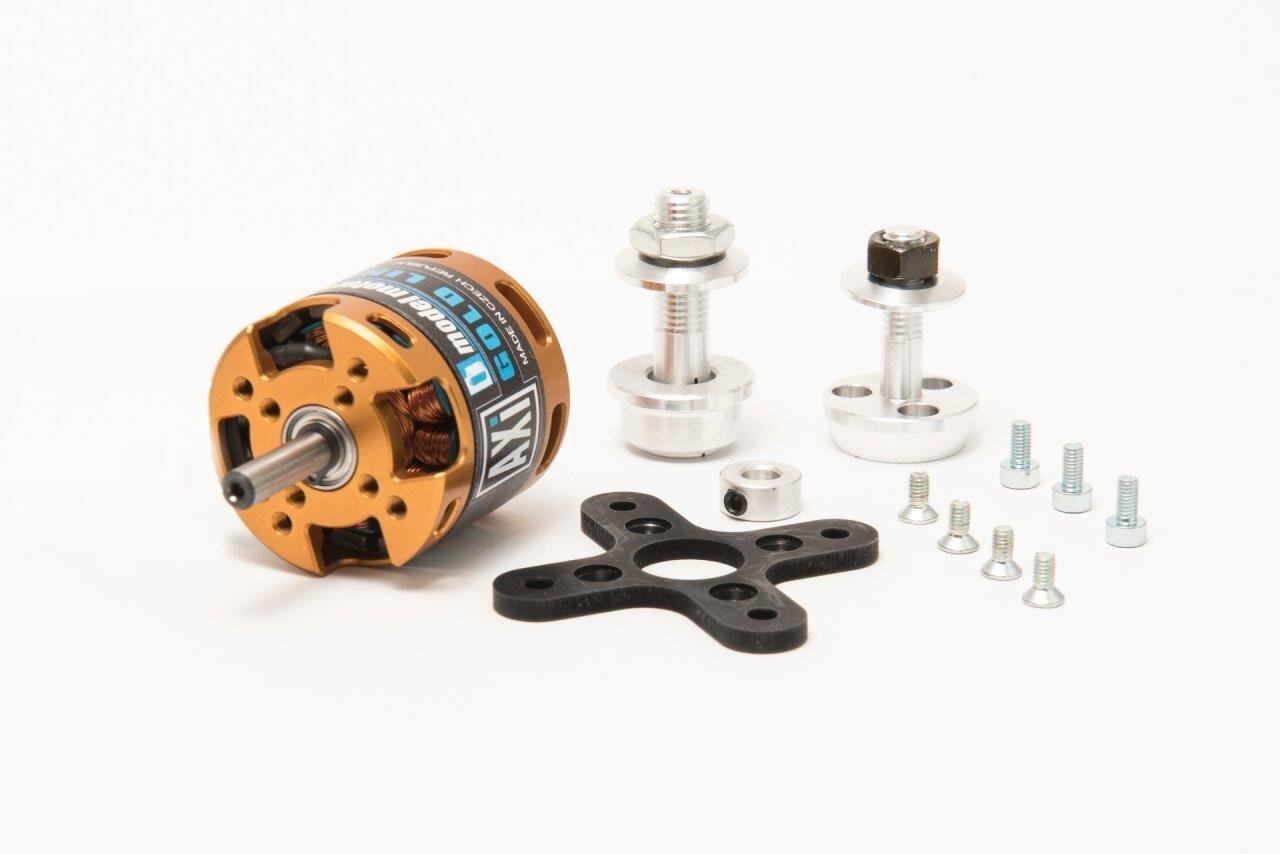

AXI 2814/10 V2 Borstlös motor
1 149 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 3EL10531V2
Powering LiXX cells 2 - 3
RPM/V [ot./min/V] 1640
Turn count 10
Internal resistance [mOhm] 37
Open-circuit current [A] 2.3
Max. efficiency [%] 83
Max. efficiency current (η>75%) [A] 20 - 30
Max. peak current (60 s) [A] 46
Max. power [W] 460

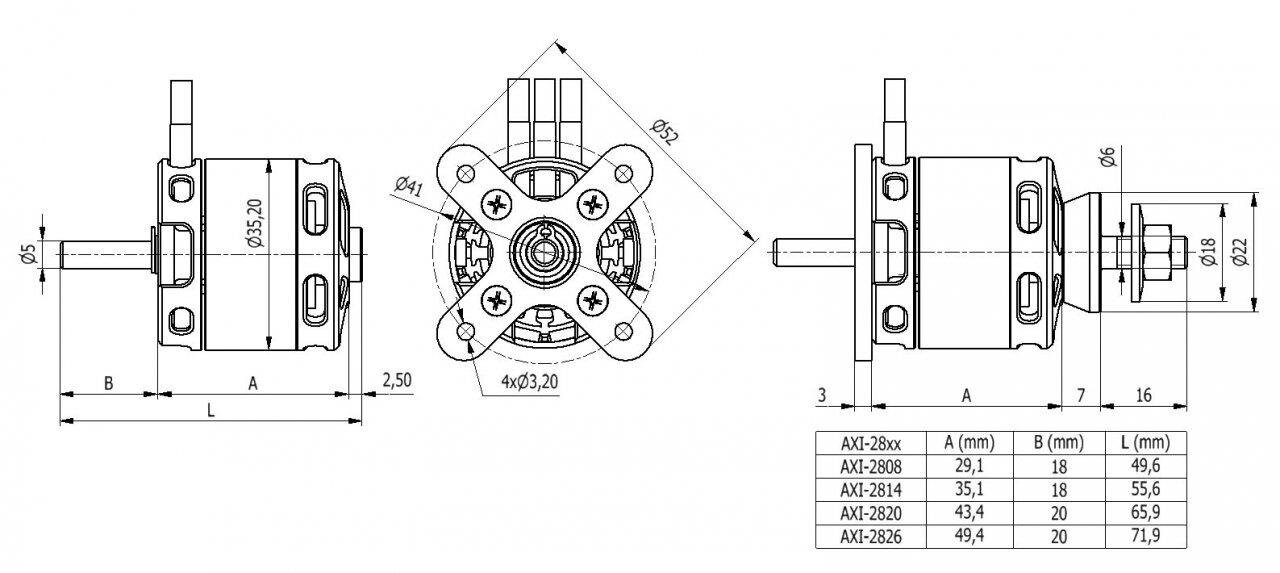

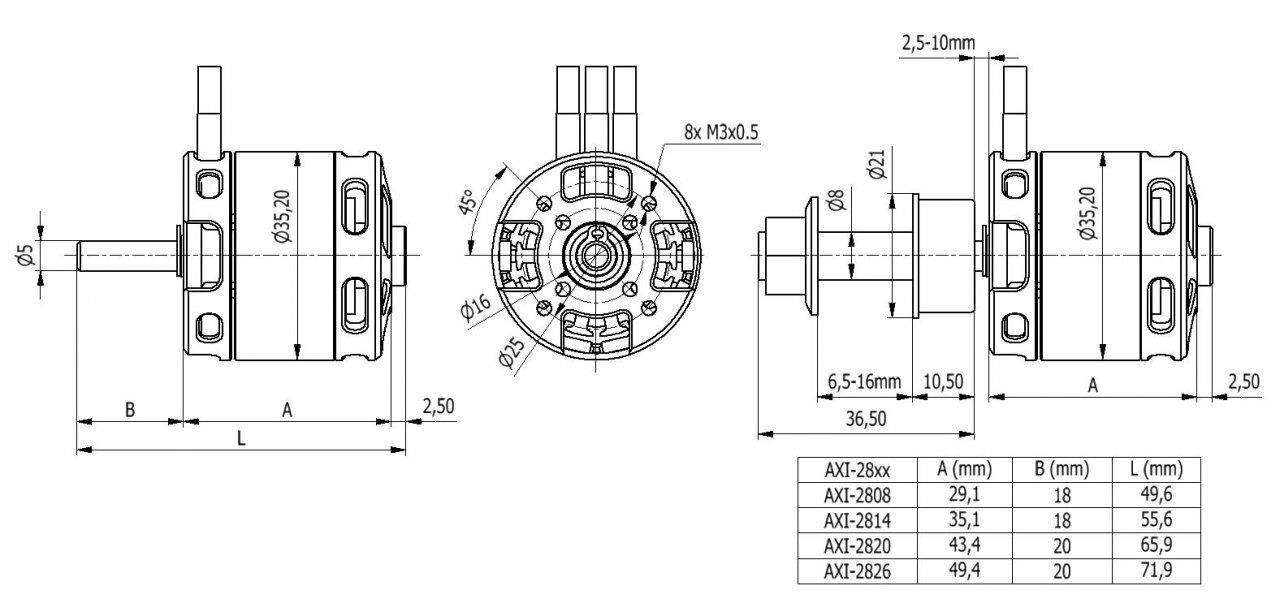

Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 50 - 70
Weight of glider (up-to) [g] 1500
Weight of trainer (up-to) [g] 1500
Weight of acrobat (up-to) [g] 1200
Weight of 3D (up-to) [g] 900
Doporučená vrtule 2S: 9x6", 9,5x5", 10x6"
Doporučená vrtule 3S: 8x4"
RPM/V [ot./min/V] 1640
Turn count 10
Internal resistance [mOhm] 37
Open-circuit current [A] 2.3
Max. efficiency [%] 83
Max. efficiency current (η>75%) [A] 20 - 30
Max. peak current (60 s) [A] 46
Max. power [W] 460
Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 50 - 70
Weight of glider (up-to) [g] 1500
Weight of trainer (up-to) [g] 1500
Weight of acrobat (up-to) [g] 1200
Weight of 3D (up-to) [g] 900
Doporučená vrtule 2S: 9x6", 9,5x5", 10x6"
Doporučená vrtule 3S: 8x4"
