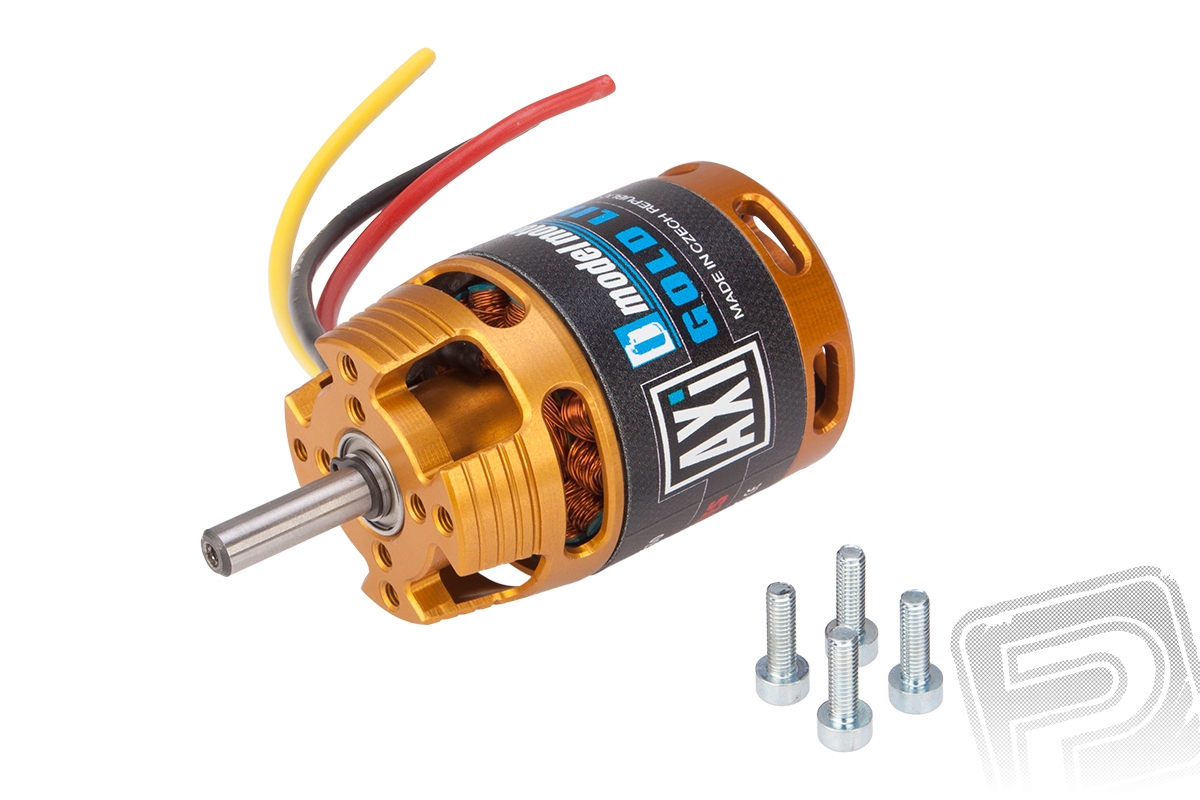

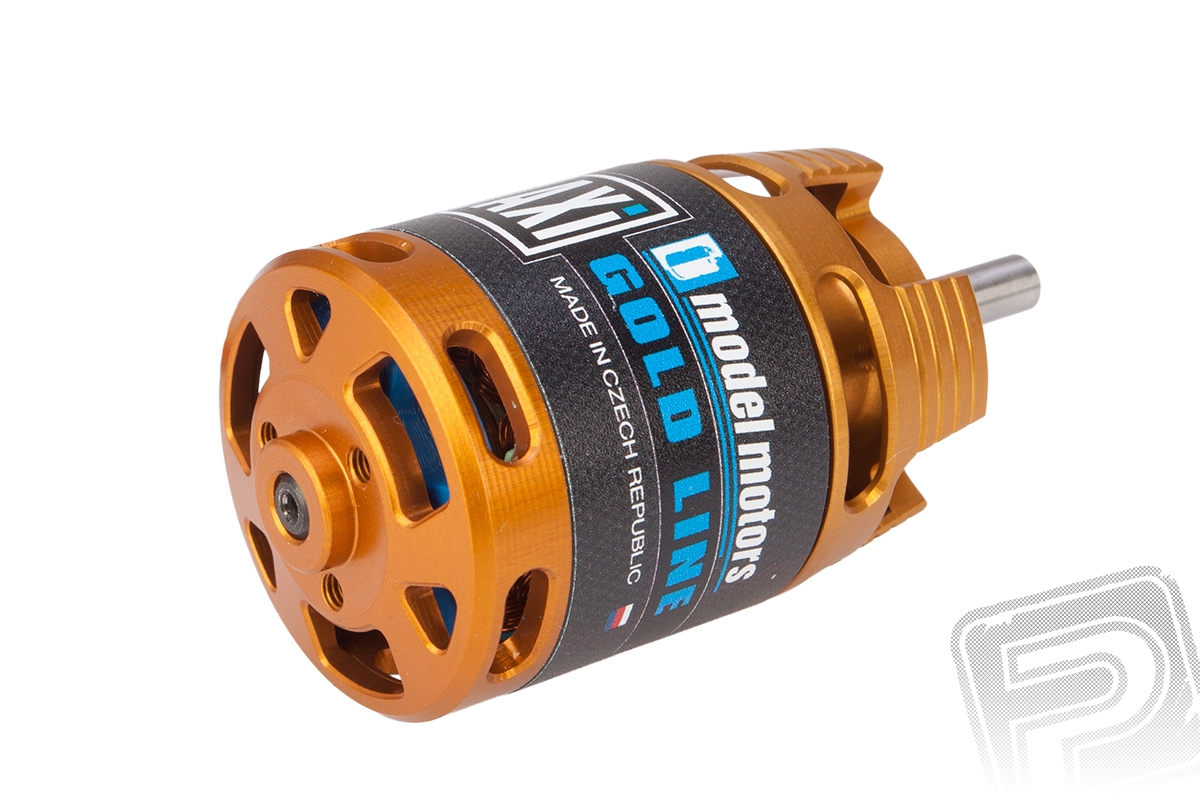

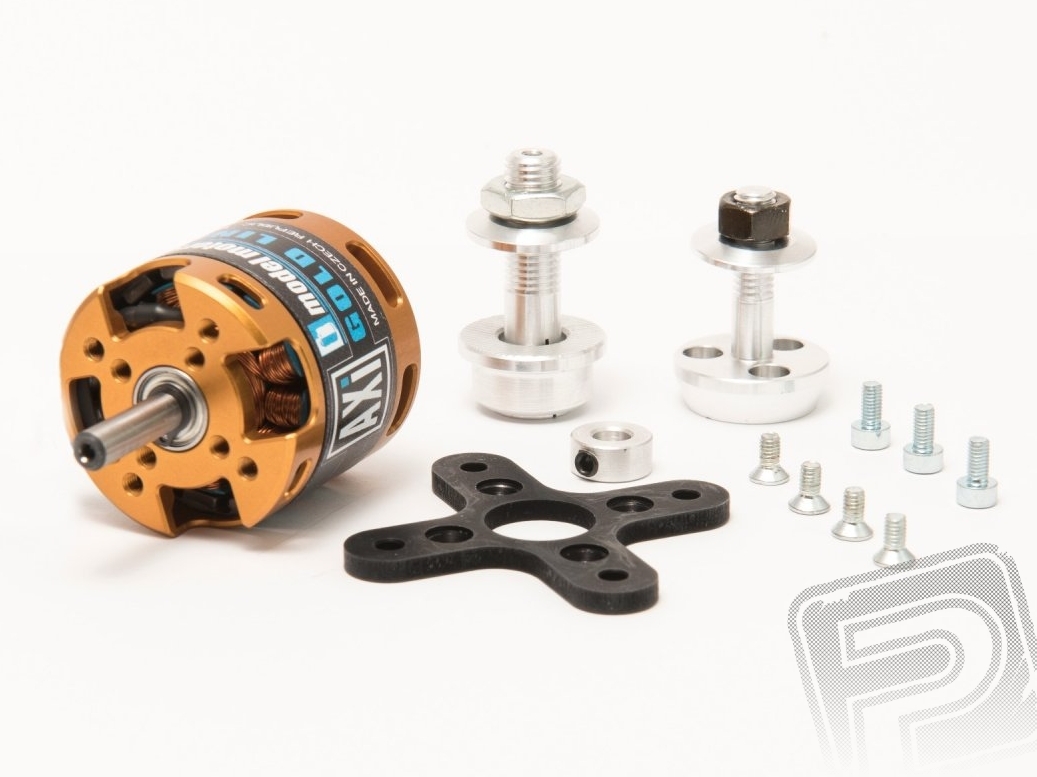

AXI 2814/16 V2 Brushless Motor
1 299 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 10027287
Powering LiXX cells 3
RPM/V [ot./min/V] 1035
Turn count 16
Internal resistance [mOhm] 85
Open-circuit current [A] 1
Max. efficiency [%] 84
Max. efficiency current (η>75%) [A] 12 - 20
Max. peak current (60 s) [A] 32
Max. power [W] 325
Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 35 - 45
Weight of glider (up-to) [g] 1700
Weight of trainer (up-to) [g] 1600
Weight of acrobat (up-to) [g] 1400
Weight of 3D (up-to) [g] 1100
Doporučená vrtule 3S: 9,5x5", 10x6", 11x5"
RPM/V [ot./min/V] 1035
Turn count 16
Internal resistance [mOhm] 85
Open-circuit current [A] 1
Max. efficiency [%] 84
Max. efficiency current (η>75%) [A] 12 - 20
Max. peak current (60 s) [A] 32
Max. power [W] 325
Diameter [mm] 35
Length [mm] 37.5
Shaft diameter [mm] 5
Weight [g] 107
Poles count 14
Timing [°] 15 - 25
ESC [A] 35 - 45
Weight of glider (up-to) [g] 1700
Weight of trainer (up-to) [g] 1600
Weight of acrobat (up-to) [g] 1400
Weight of 3D (up-to) [g] 1100
Doporučená vrtule 3S: 9,5x5", 10x6", 11x5"
