Beskrivning
Art.nr: 3EL10529V2
Powering LiXX cells 3 - 5
RPM/V [ot./min/V] 990
Turn count 12
Internal resistance [mOhm] 59
Open-circuit current [A] 1.7
Max. efficiency [%] 85
Max. efficiency current (η>76%) [A] 15 - 25
Max. peak current (60 s) [A] 38
Max. power [W] 650

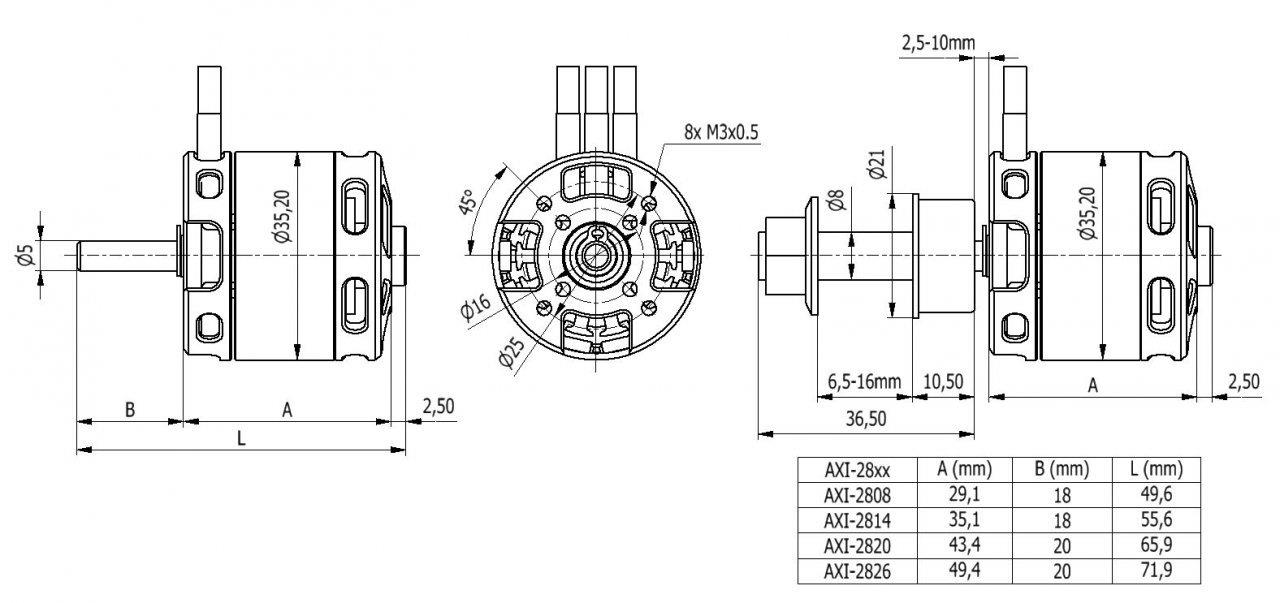

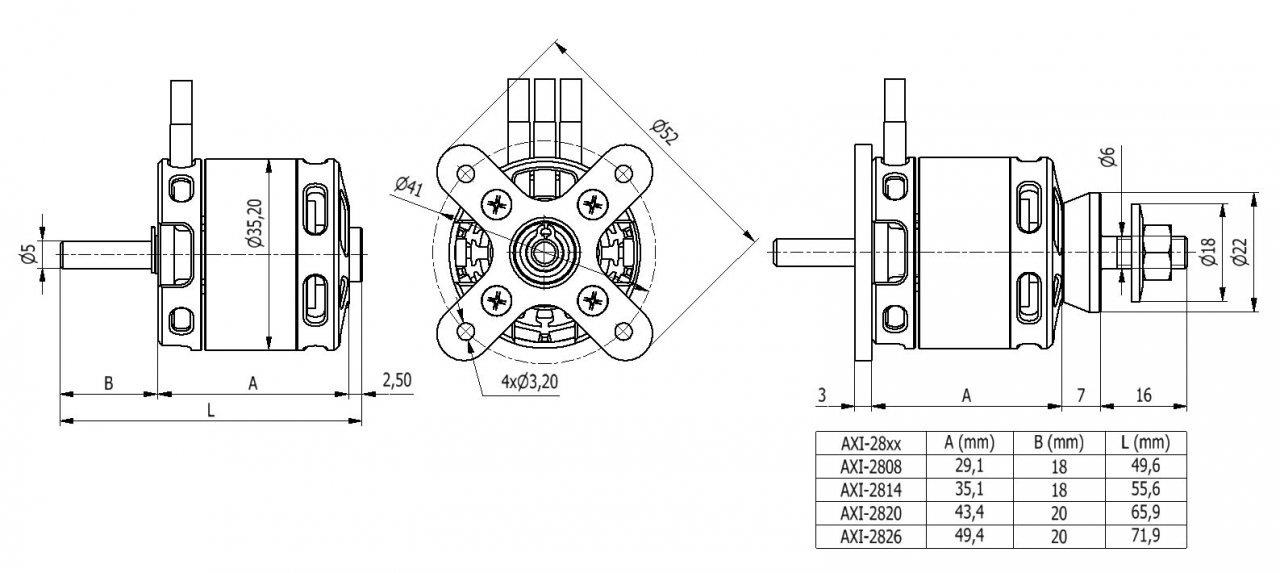

Diameter [mm] 35
Length [mm] 46
Shaft diameter [mm] 5
Weight [g] 148
Poles count 14
Timing [°] 15 - 25
ESC [A] 40 - 60
Weight of glider (up-to) [g] 2400
Weight of trainer (up-to) [g] 2400
Weight of acrobat (up-to) [g] 2000
Weight of 3D (up-to) [g] 1500
Doporučená vrtule 2S: 13x8"
Doporučená vrtule 3S: 12x5", 12x6", 12x6,5", 13x4"
RPM/V [ot./min/V] 990
Turn count 12
Internal resistance [mOhm] 59
Open-circuit current [A] 1.7
Max. efficiency [%] 85
Max. efficiency current (η>76%) [A] 15 - 25
Max. peak current (60 s) [A] 38
Max. power [W] 650
Diameter [mm] 35
Length [mm] 46
Shaft diameter [mm] 5
Weight [g] 148
Poles count 14
Timing [°] 15 - 25
ESC [A] 40 - 60
Weight of glider (up-to) [g] 2400
Weight of trainer (up-to) [g] 2400
Weight of acrobat (up-to) [g] 2000
Weight of 3D (up-to) [g] 1500
Doporučená vrtule 2S: 13x8"
Doporučená vrtule 3S: 12x5", 12x6", 12x6,5", 13x4"
