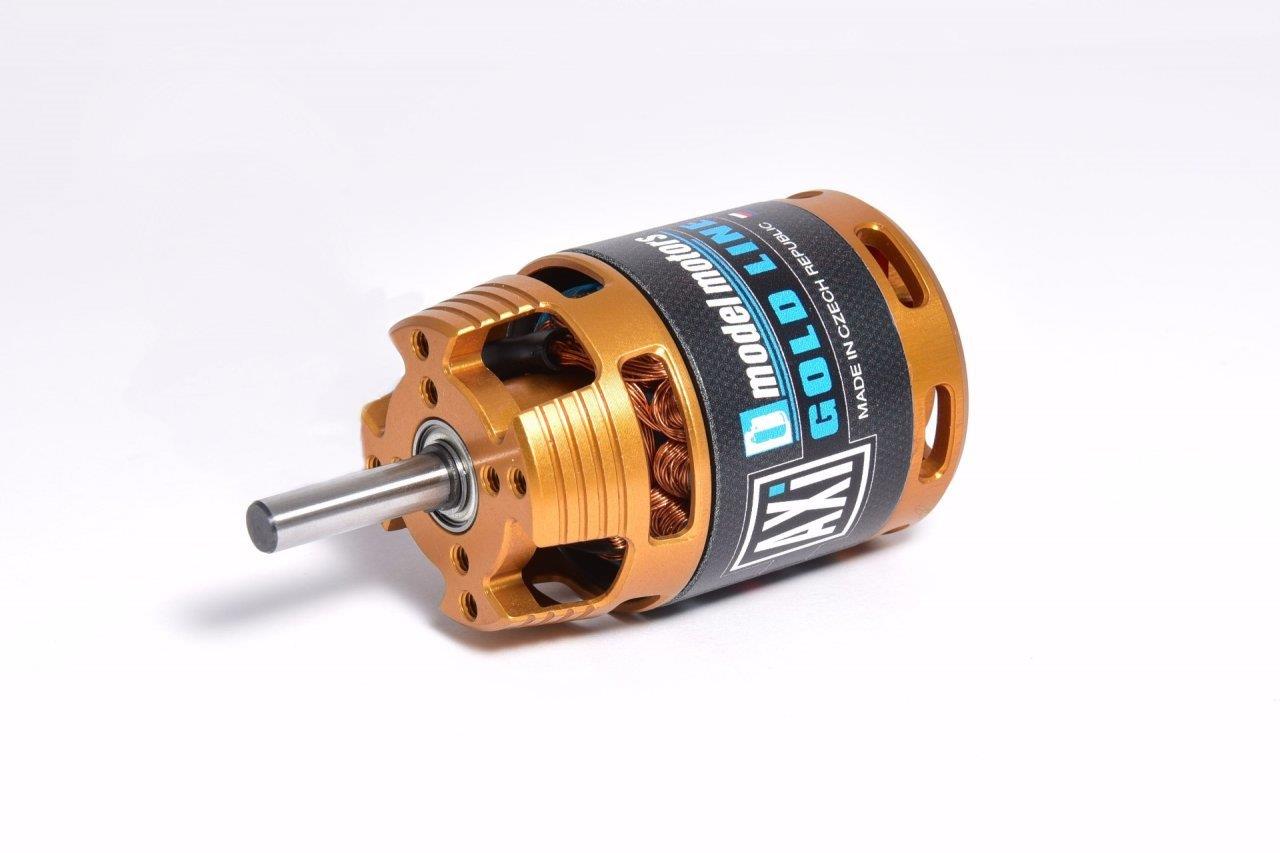

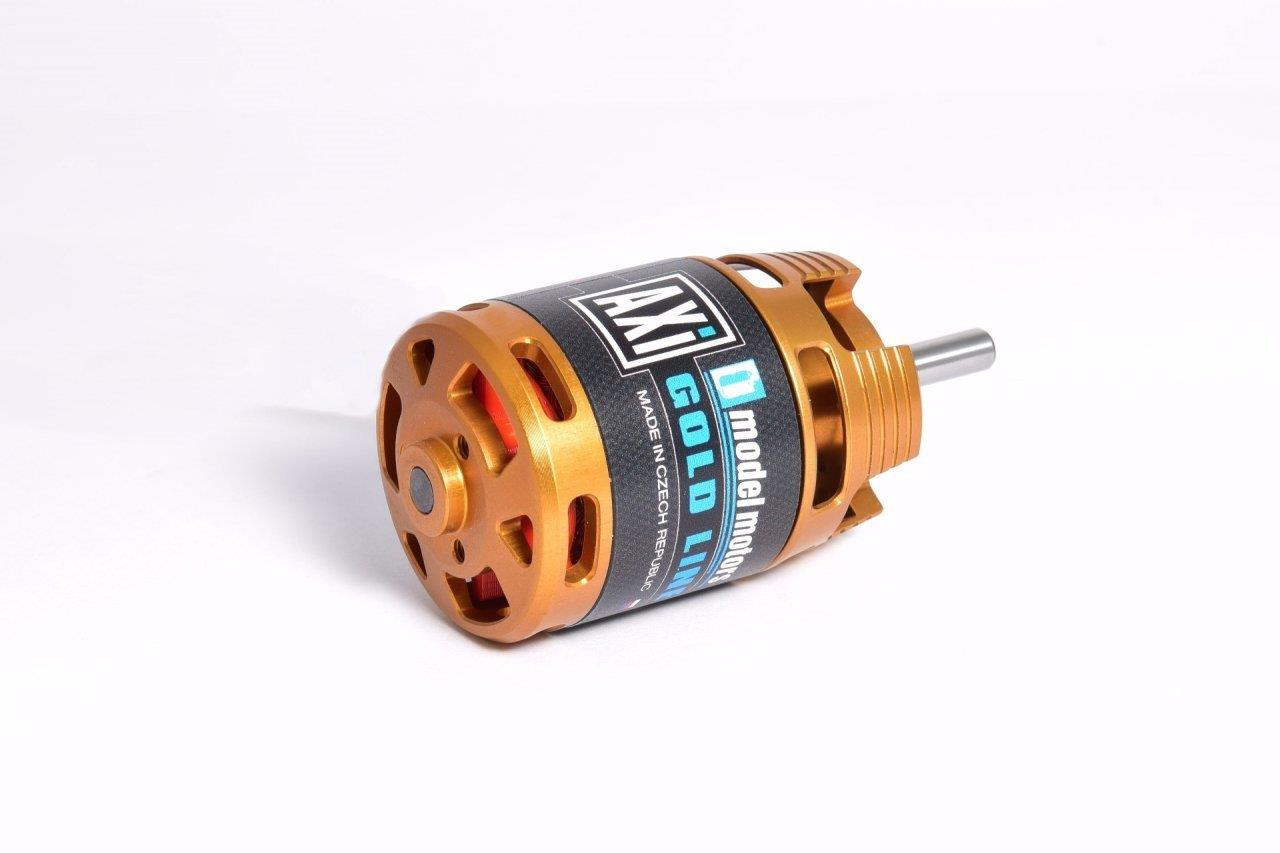

AXI 2820/8 V2 LONG Brushless Motor
1 075 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 3EL10528V2L
Powering LiXX cells 2 - 3
RPM/V [ot./min/V] 1500
Turn count 8
Internal resistance [mOhm] 26
Open-circuit current [A] 3.3
Max. efficiency [%] 84
Max. efficiency current (η>75%) [A] 25 - 37
Max. peak current (60 s) [A] 56
Max. power [W] 565

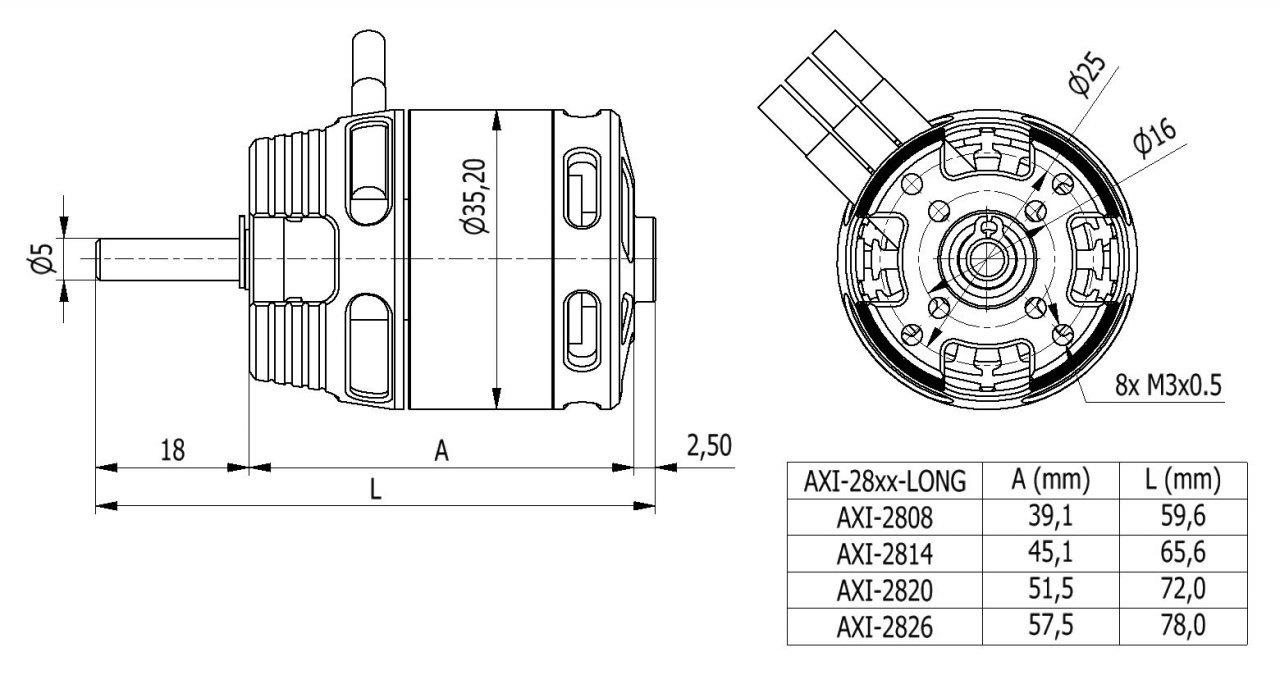

Diameter [mm] 35
Length [mm] 52
Shaft diameter [mm] 5
Weight [g] 158
Poles count 14
Timing [°] 15 - 25
ESC [A] 60 - 70
Weight of glider (up-to) [g] 2000
Weight of acrobat (up-to) (hotliner) [g] 1400
Doporučená vrtule 3S: 8x7", 9x5"
RPM/V [ot./min/V] 1500
Turn count 8
Internal resistance [mOhm] 26
Open-circuit current [A] 3.3
Max. efficiency [%] 84
Max. efficiency current (η>75%) [A] 25 - 37
Max. peak current (60 s) [A] 56
Max. power [W] 565
Diameter [mm] 35
Length [mm] 52
Shaft diameter [mm] 5
Weight [g] 158
Poles count 14
Timing [°] 15 - 25
ESC [A] 60 - 70
Weight of glider (up-to) [g] 2000
Weight of acrobat (up-to) (hotliner) [g] 1400
Doporučená vrtule 3S: 8x7", 9x5"
