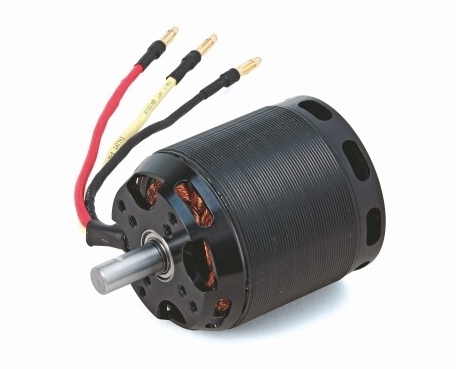

Borstlös motor COMPACT HPD 6443-220 29.6V brushless M

Graupner HPD high-performance motors

The new Graupner HPD external rotor motor can be optimally used both in glider models and in motor models as a direct drive.

New Graupner HPD motor series
High-precision manufacturing quality
Effective cooling system integrated
Finely ribbed surface supports optimal heat dissipation
Delivery including accessory set
Operating instructions in German, English and French
Recommended controller: BRUSHLESS CONTROL HV + T 160 G 6
Recommended propeller: Graupner E-PROP 22x10

Technical specifications:

Operating voltage range: 22.2 - 37V
Nominal voltage: 29.6v
Revolutions/Volt: 220KV
Perfomance: 1500W
Max. power at rated voltage: 2960W
Highest efficiency: 90%
Number of poles: 14
Current consumption max.: 100A
Weight approx.: 860g
Case diameter: 64mm
case length: 72mm
Free wavelength: 22mm
Shaft Diameter: 10mm
Overall length: 94mm
length a.o. approx.: 98mm
Width o.a.: 72mm
Idle speed: 6512 rpm
Permitted direction of motor rotation: CW / CCW
Motor type: brushless
Connection plug: G4
Magnet: neodymium
Area of ​​application: flight models
Brand Name: Graupner


Delivery content:

1x COMPACT HPD 6443-220 29.6V brushless M.
1x operating instructions in German, English and French
1x accessory set
