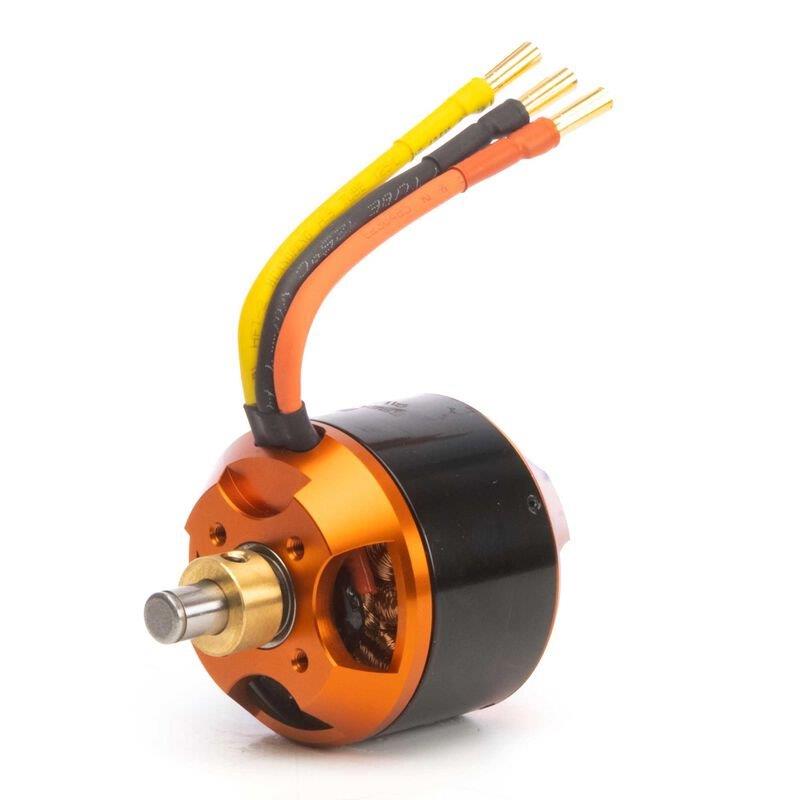

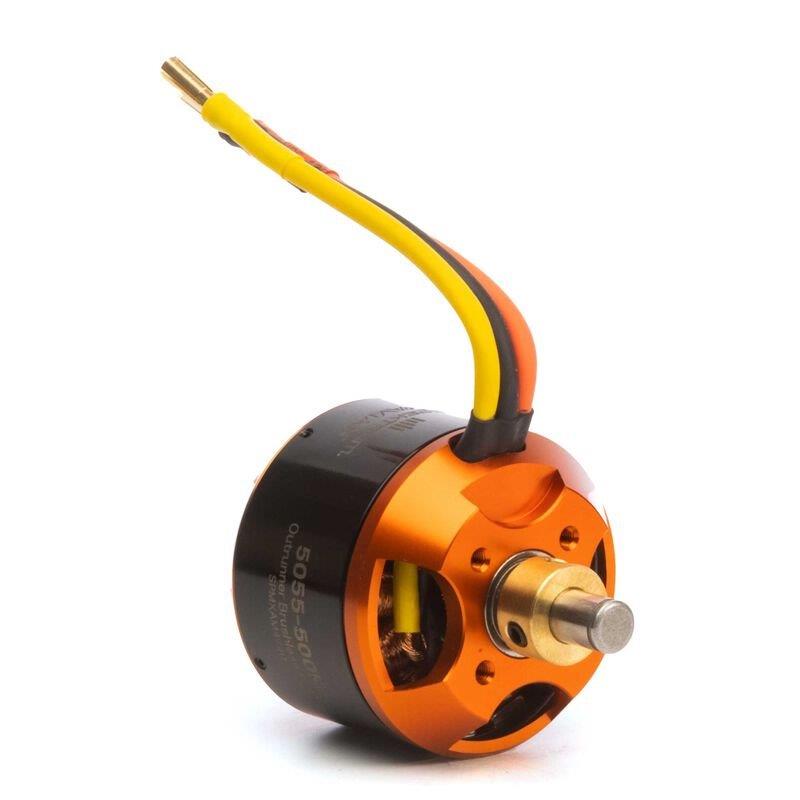

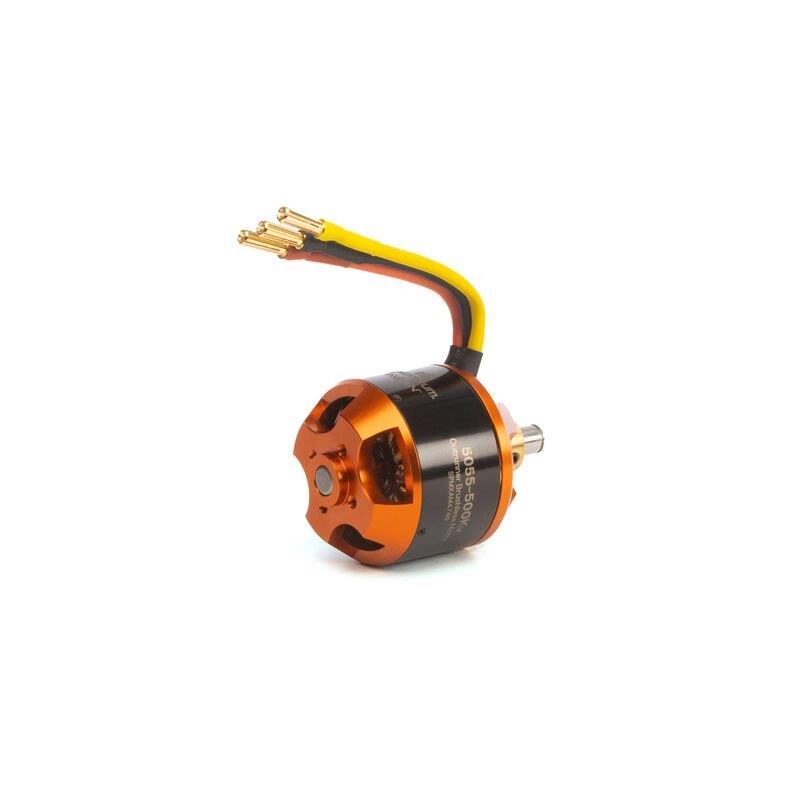

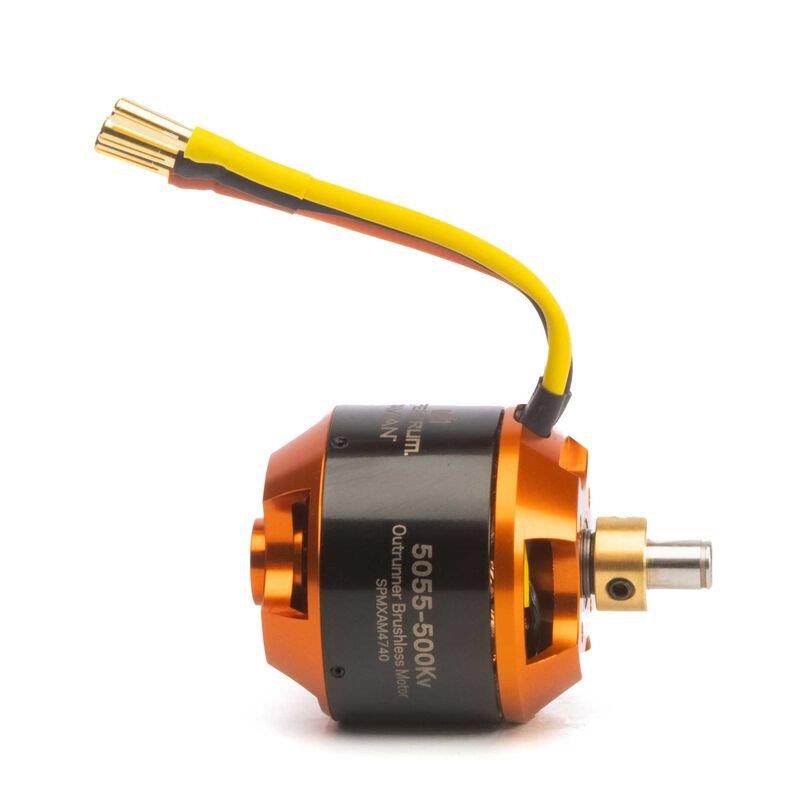

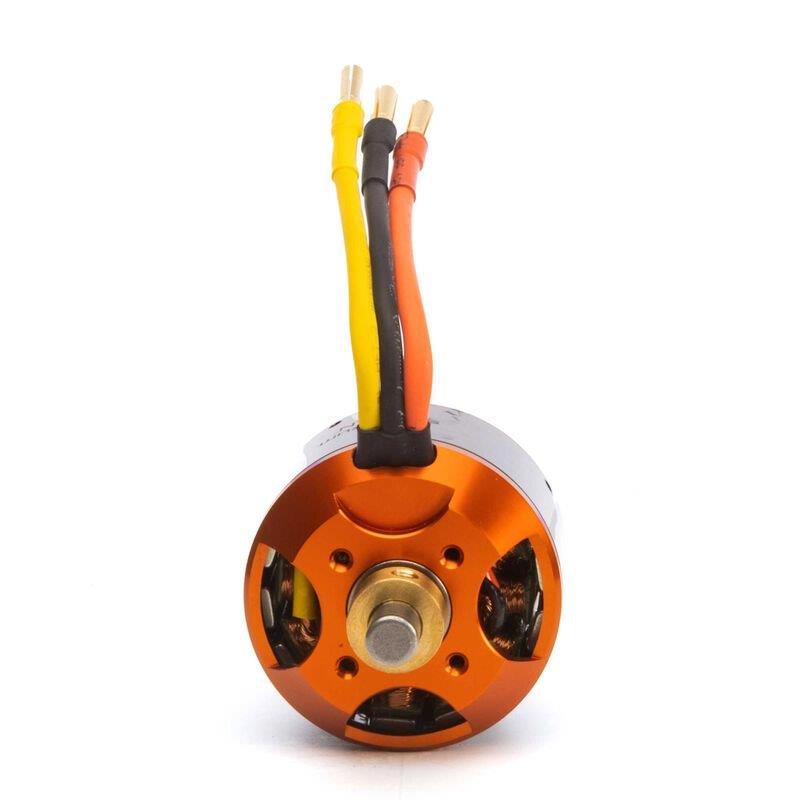

Spektrum Avian 5055-500Kv Brushless Outrunner Motor
1 499 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXAM4740
Product Details
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

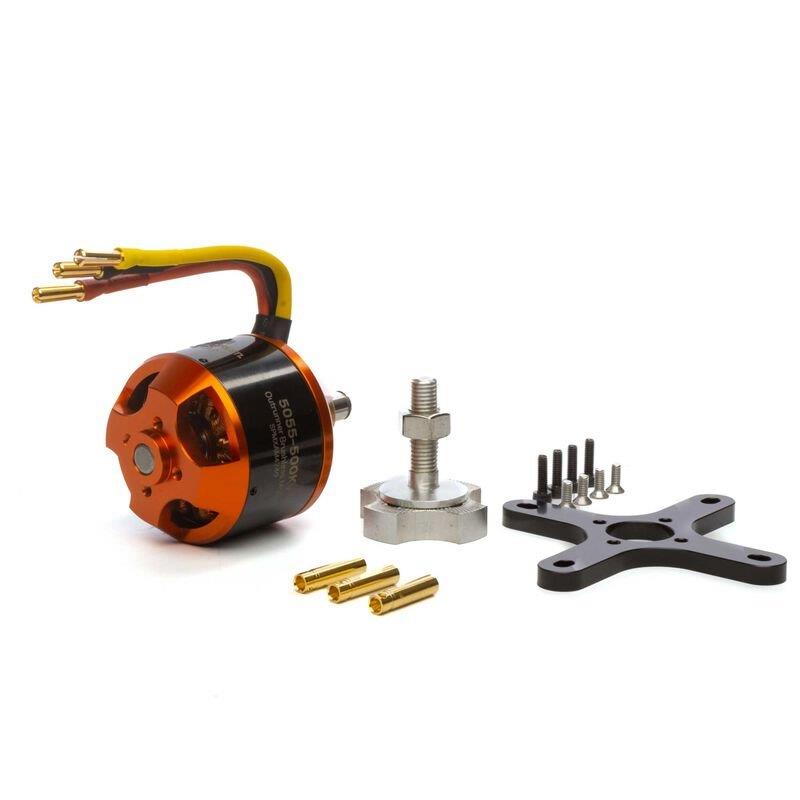

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 60 amp ESC
Perfect electric conversion upgrade for .80 size glow combustion power systems
Important Specs
Recommended Voltage Range 18.5 - 22.2V / 5-6S LiPo
Recommended Propeller Range 15x6 to 15x8 Electric Propeller
Recommended Model Flying weight 3D 3175g (7 lbs) - 5215g (11.5 lbs)
Max Wattage 900w
Max Current Max Burst Amps (65A) Max Continuous Amps (55A)
Product Specifications:
Adjustable Timing: No
Connector Type: 4mm Bullet
Constant Wattage: 750-999W
Input Voltage: 18.5-22.2V (5-6S LiPo)
Integrated ESC: No
Kv Rating: 500-749Kv
Motor Class: Mid Size
Motor Design: Outrunner
Motor Output Lead: 4
Motor Type: Brushless

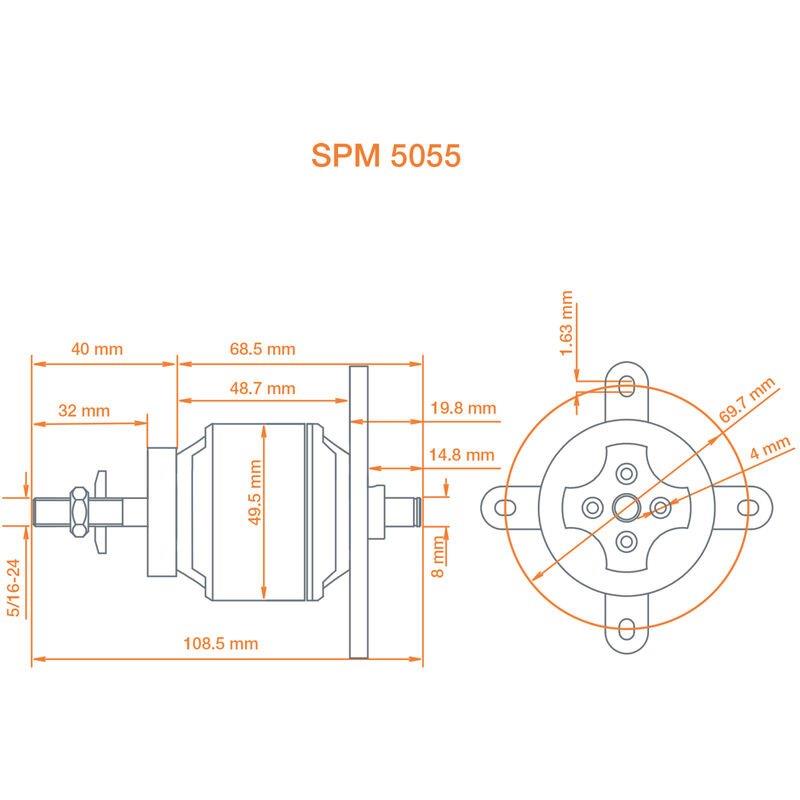

Outer Diameter: 1.97" (50 mm)
Product Length: 2.17" (55 mm)
Product Weight: 10.5oz (298g)
RPM/Volt (Kv): 500
Sensor Type: Sensorless
Shaft Diameter: 0.32" (8 mm)
Shaft Length: 0.79" (20 mm)
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion
Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 60 amp ESC
Perfect electric conversion upgrade for .80 size glow combustion power systems
Important Specs
Recommended Voltage Range 18.5 - 22.2V / 5-6S LiPo
Recommended Propeller Range 15x6 to 15x8 Electric Propeller
Recommended Model Flying weight 3D 3175g (7 lbs) - 5215g (11.5 lbs)
Max Wattage 900w
Max Current Max Burst Amps (65A) Max Continuous Amps (55A)
Product Specifications:
Adjustable Timing: No
Connector Type: 4mm Bullet
Constant Wattage: 750-999W
Input Voltage: 18.5-22.2V (5-6S LiPo)
Integrated ESC: No
Kv Rating: 500-749Kv
Motor Class: Mid Size
Motor Design: Outrunner
Motor Output Lead: 4
Motor Type: Brushless
Outer Diameter: 1.97" (50 mm)
Product Length: 2.17" (55 mm)
Product Weight: 10.5oz (298g)
RPM/Volt (Kv): 500
Sensor Type: Sensorless
Shaft Diameter: 0.32" (8 mm)
Shaft Length: 0.79" (20 mm)
