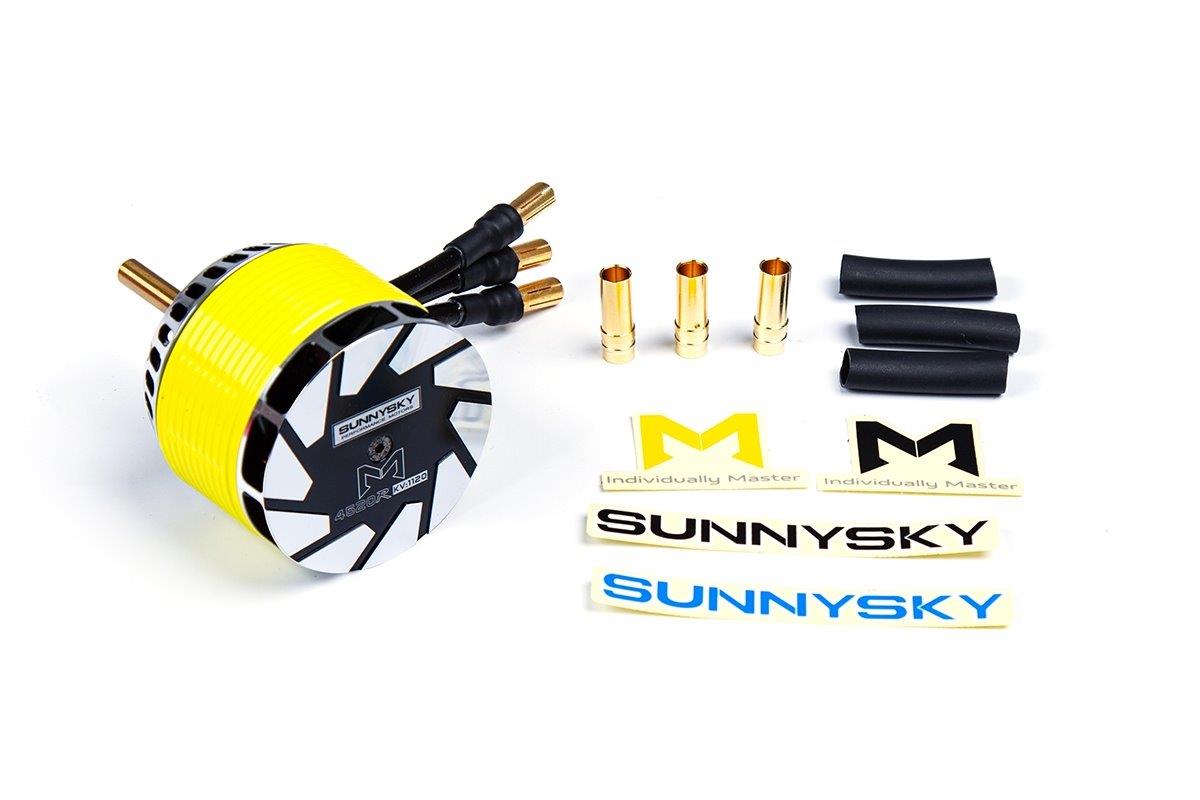

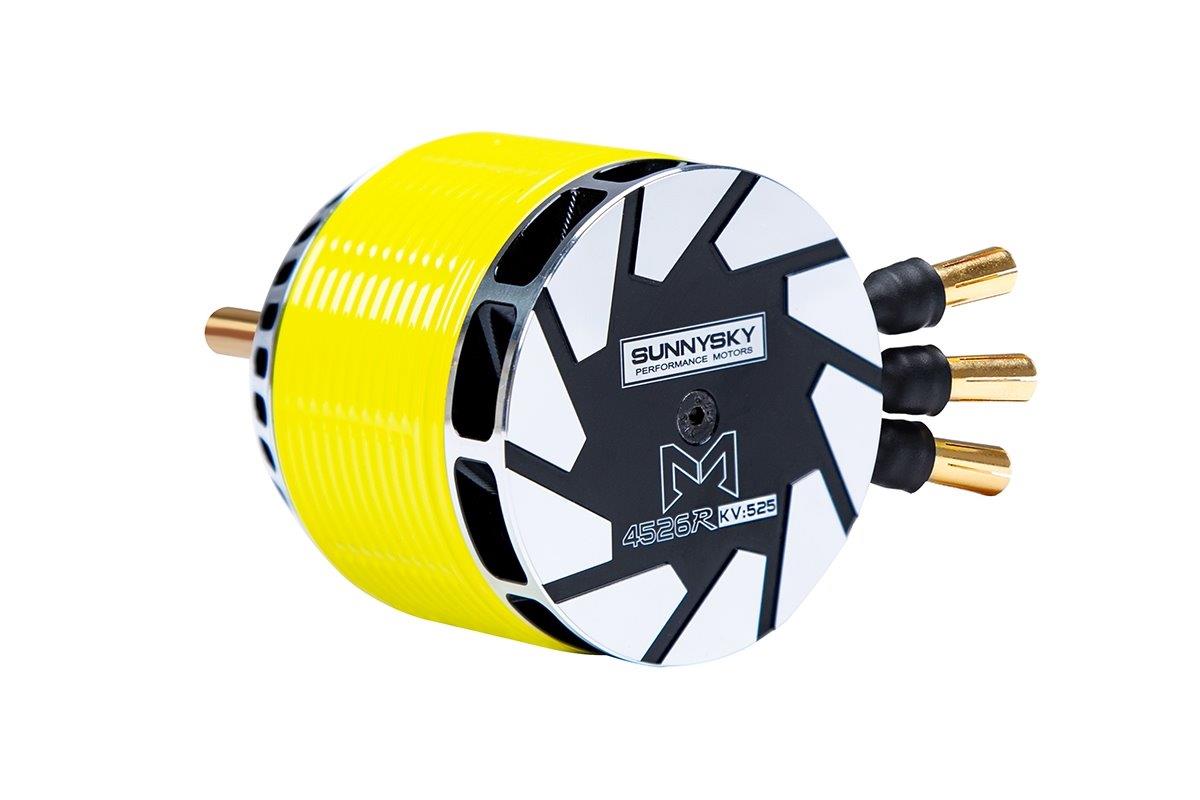

Sunnysky M4526R 540kV Heli BLS motor
3 505 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SUN0003
Top-class AC electric motor with rotating casing for competition helicopter models of size 600-700. KV540 rpm at V, power supply max. 12S LiPo. Shaft 6.0mm, weight 485g, free shaft length 36mm.
Powering LiXX cells: 10 - 12
RPM/V [ot./min/V]: 540
Max. power (constant) [W]: 5200
Max. power (top-notch) [W]: 8000
Internal resistance [mOhm]: 9.8
Open-circuit current (at 10 V) [A]: 2.5
Max. current (constant) [A]: 110
Max. peak current [A]: 170

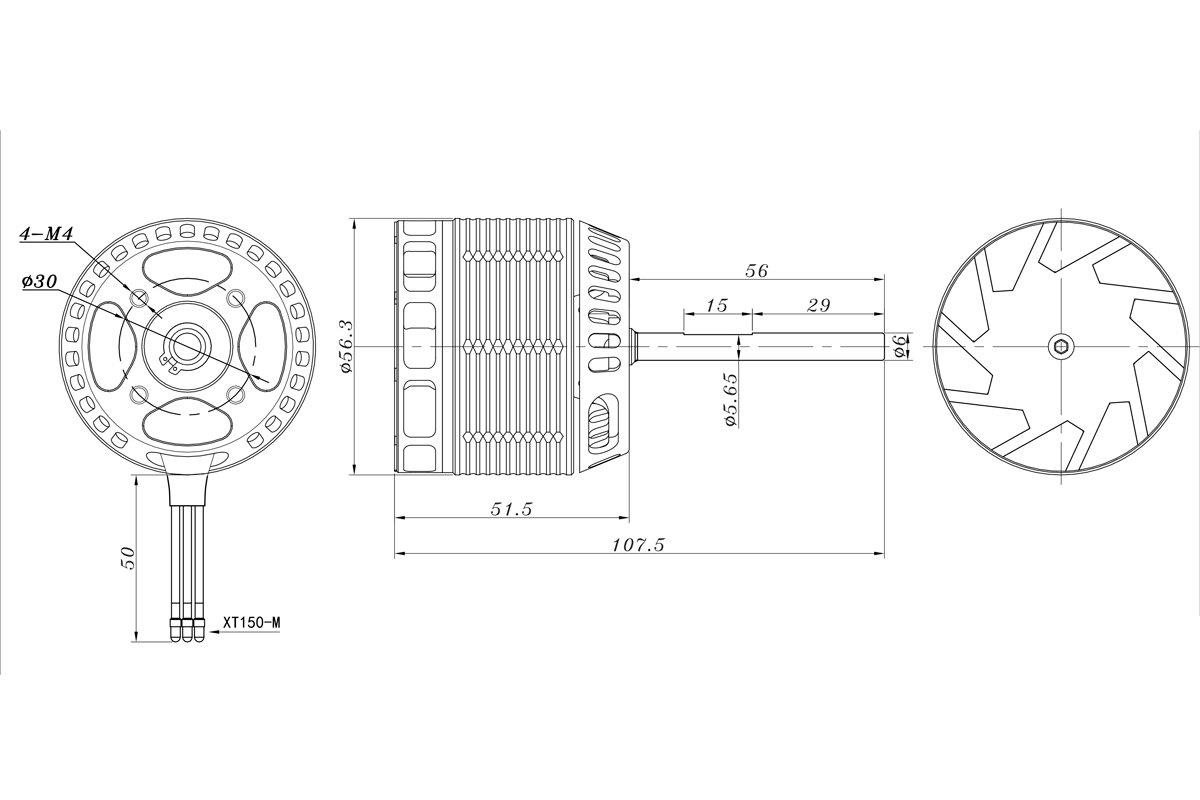

Diameter [mm]: 56.3
Length [mm]: 52
Length loose shafts [mm]: 36
Shaft diameter [mm]: 6
Weight [g]: 485
Poles count: 10
ESC [A]: 200 - 300
Helicopter Class [mm]: 600 - 700
Powering LiXX cells: 10 - 12
RPM/V [ot./min/V]: 540
Max. power (constant) [W]: 5200
Max. power (top-notch) [W]: 8000
Internal resistance [mOhm]: 9.8
Open-circuit current (at 10 V) [A]: 2.5
Max. current (constant) [A]: 110
Max. peak current [A]: 170
Diameter [mm]: 56.3
Length [mm]: 52
Length loose shafts [mm]: 36
Shaft diameter [mm]: 6
Weight [g]: 485
Poles count: 10
ESC [A]: 200 - 300
Helicopter Class [mm]: 600 - 700
