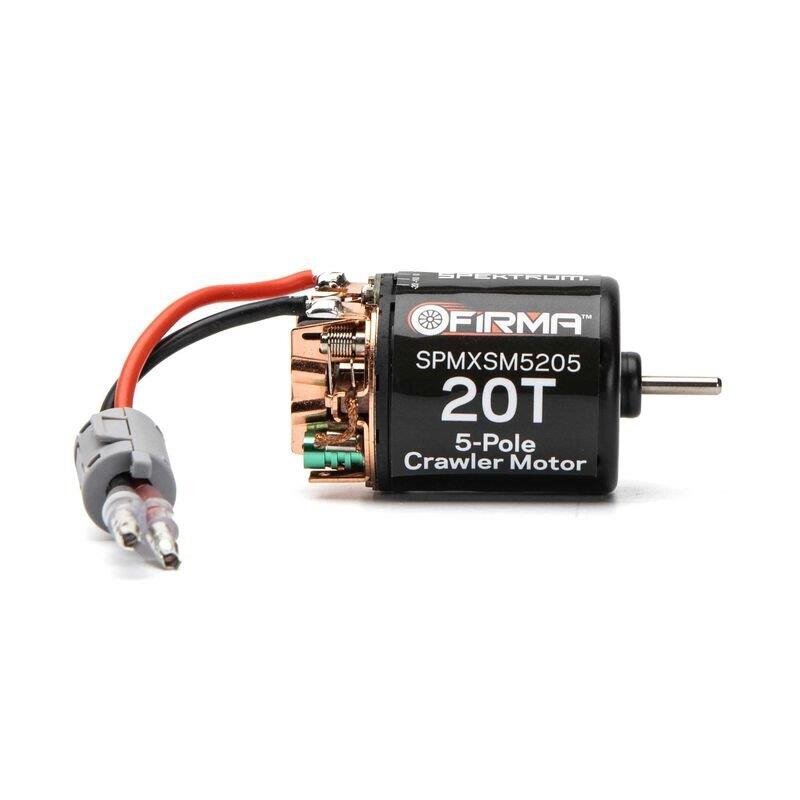

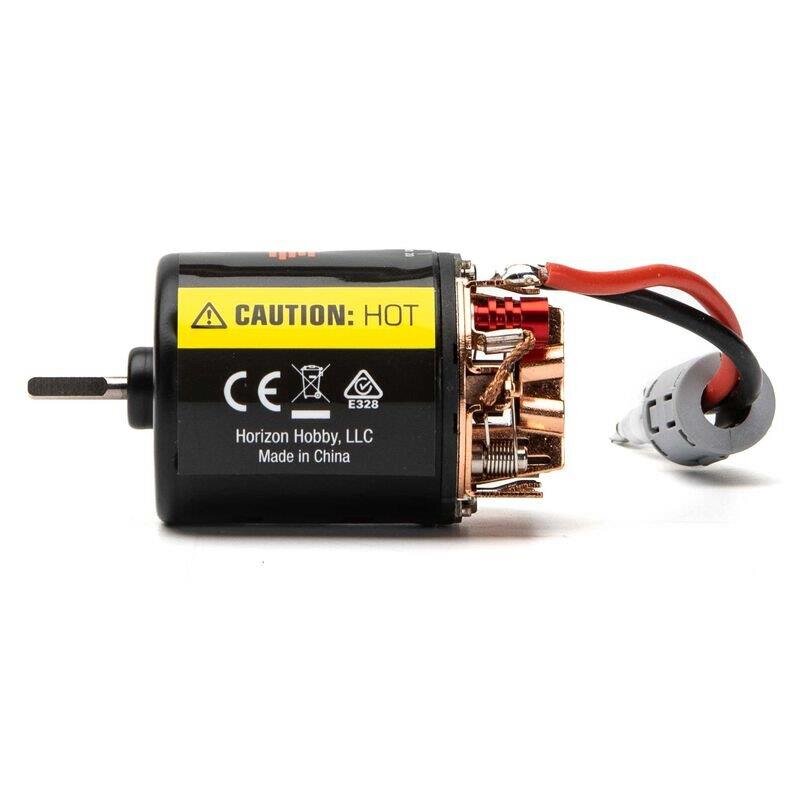

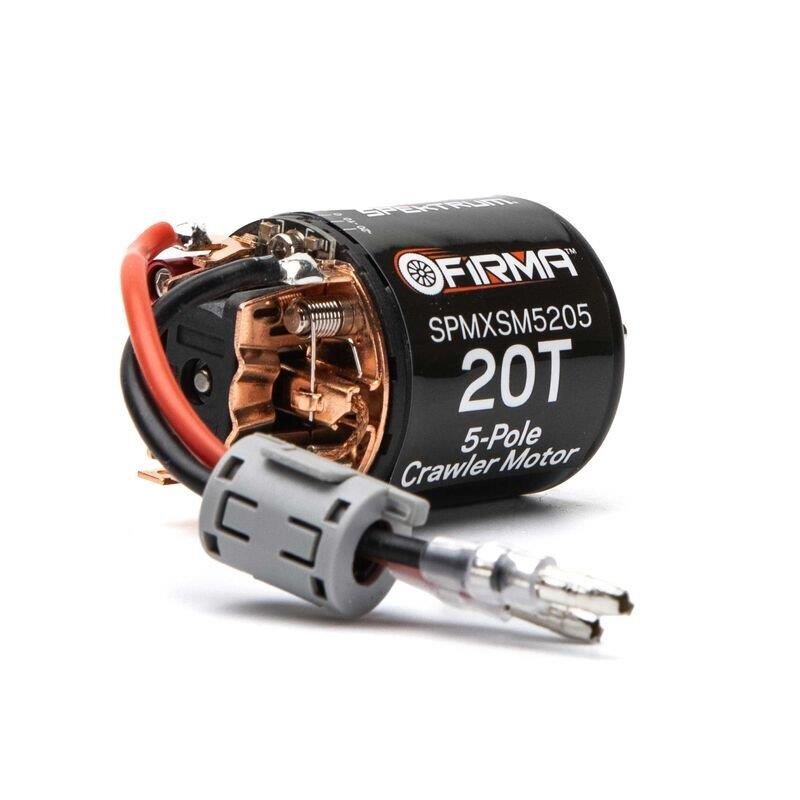

Spektrum Firma 20T Rebuildable 5 Pole Brushed Crawler Motor
359 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSM5205
Product Details
The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring fully rebuildable design, impressive low-end torque and control, and excellent efficiency.
Key Features
5-pole design provides half the speed of 3-pole design counterparts
Adjustable timing for clockwise and counterclockwise motor rotation
540 can size perfect upgrade for most 1/10th scale
Pre-shaped curved face brushes No break-in period required!
Wires and 3.5mm bullets installed No soldering required!
In The Box
(1) Spektrum Firma 5Pole Rebuildable Brushed 20 Turn Motor
(1) Product Manual
Needed to Complete
(1) Brushed ESC 40 Amp or Higher
Next-level Slow Speed Control
The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring a fully rebuildable design, impressive low-end torque and control, and excellent efficiency.
Key Benefits
5Pole design Maximizes smooth throttle control at low speeds and efficiency
Fully Rebuildable Easy to replace parts for simple maintenance and increased motor lifespan
Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance
Features
Available in 16T and 20T configurations
5-pole design provides half the speed of 3-pole design counterparts
Adjustable timing for clockwise and counterclockwise motor rotation
540 can size perfect upgrade for most 1/10th scale
Pre-shaped curved face brushes No break-in period required!
Wires and 3.5mm bullets installed No soldering required!
Dual rubber sealed bearings
Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings
2S LiPo/6Cell NiMH recommended battery
Product Specifications:
Motor Type: Brushed
Bushing Or Bearing: Bearing
Forward: Yes
Reverse: Yes
Adjustable Timing: Yes
Connector Type: 3.5mm Bullet
Motor Size: 540-Size
Product Length: 2.1" (53 mm)
Product Application: Crawling, Surface
Application: 1/10 Scaler/Crawler
Number of Poles: 5
Product Weight: 169g (6.0 oz)
Shaft Diameter: 0.125" (3 mm)
Water-Resistant: No
Outer Diameter: 1.4" (36 mm)
Turns: 20T
