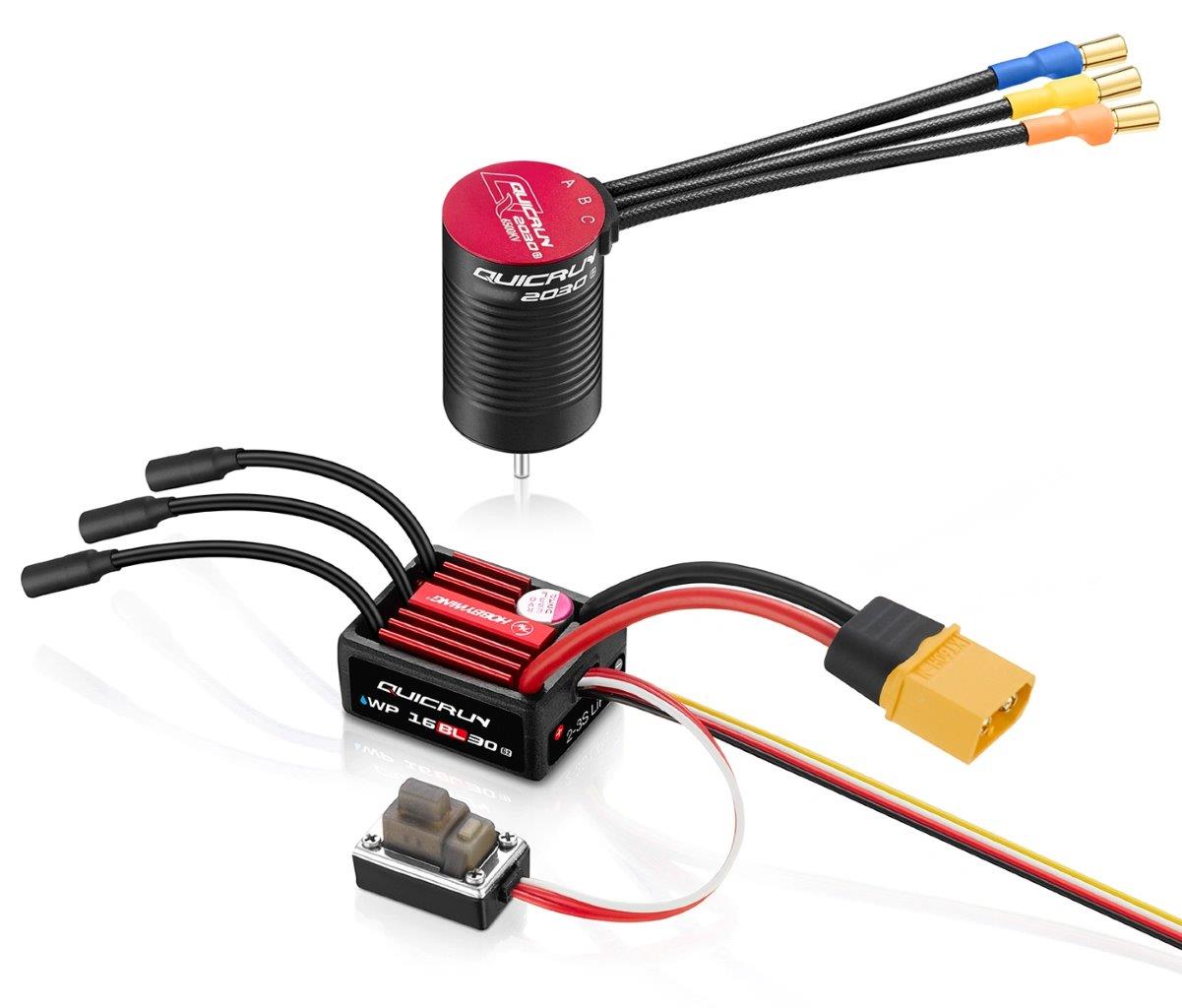

Hobbywing QuicRun Combo WP 16BL30 G2 - 2030SL 5000kV G2 1/16
535 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW38030004
Product Info:
Hobbywing HW38030004 - QuicRun Combo WP 16BL30 G2 - 2030SL 5000kV G2 1/16
Intelligent Freewheeling for Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
Upgraded BEC
Compared to the G1 ESC, The BECs continuous current has been upgraded from 1A to 2A & a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V.
High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.
ESC Specs:
Name: QuicRun WP 16BL30 G2
Type: 1/16-1/18, Brushless, Sensorless, Waterproof
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S LiPo
BEC Output: 6V/7.4V, 2A
Input Wires: 16AWG-75mm
Output Wires: 16AWG-60mm
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
Size: 33.4x26.8x15.1mm
Weight: 38.5g (Included wires & connectors)
Motors: Sensorless Brushless Motor
Vehicles: 1/16、1/18 On-Road & Off-Road & Short Course Truck & Monster Trucks
Applicable Motors: QUICRUN 2030 G2 & 2435 G3
Firmware Upgrade: Not Supported
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Throttle Wire + yellow signal wire
Motor Specs:
Name: QuicRun 2030SL G2 5000KV
Type: Brushless, Sensorless
Application: 1/18 On-Road & Off-Road & Short Course Truck & Monster Trucks
KV Rating: 5000KV
LiPo Cells: 2-3S
No-load Current: 1.05A
O.D.: 20mm
Length: 31mm
Shaft Diameter: 2mm
Connectors: 3.5mm (male)
Wire: 75mm
Weight: 42g
Front Bearing: D8xD3xT4mm
Rear Bearing: D8xD3xT4mm
ESC: QUICRUN WP 16BL30
Partistorlek: 5
Ursprungsland: CN
