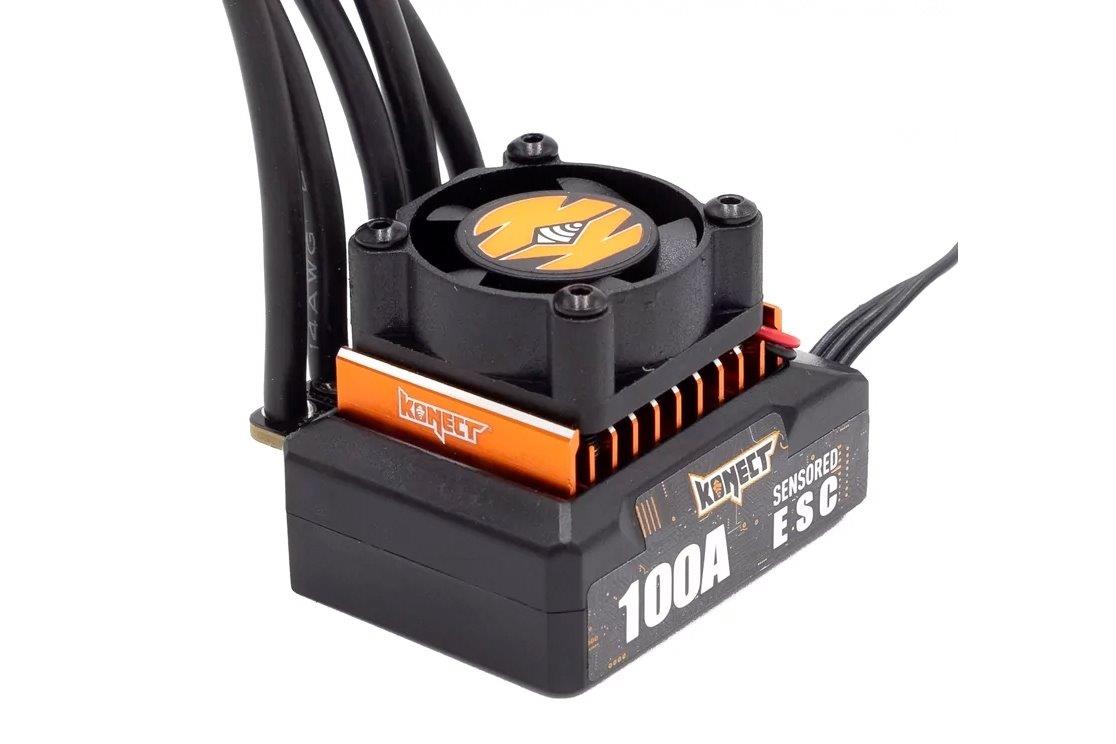

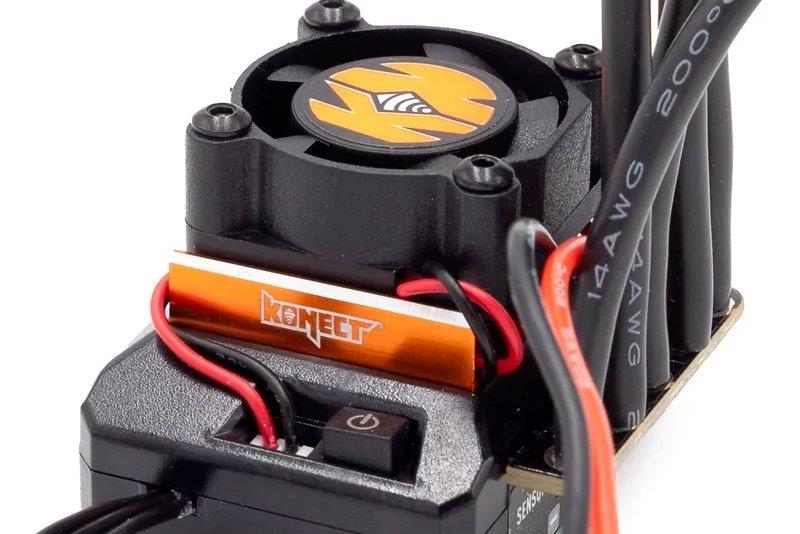

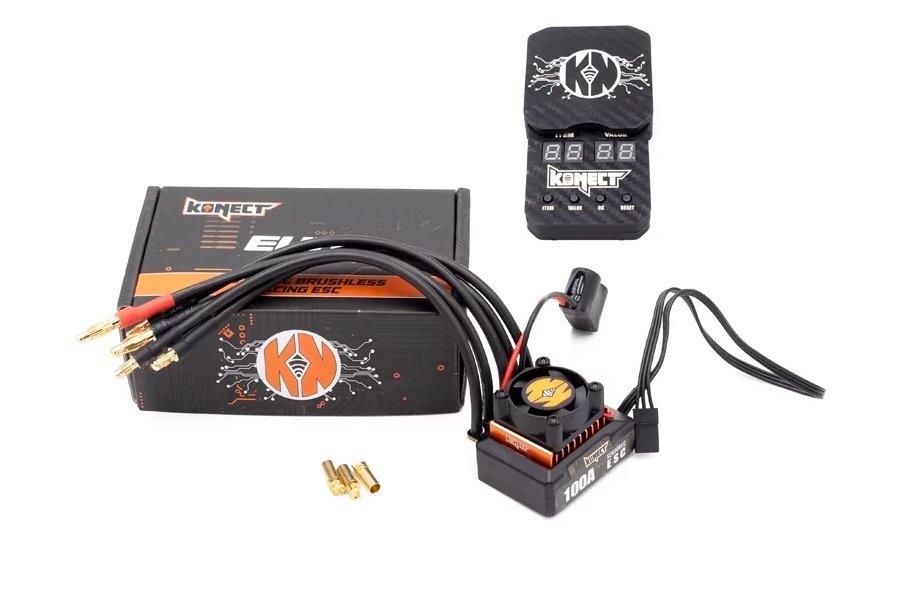

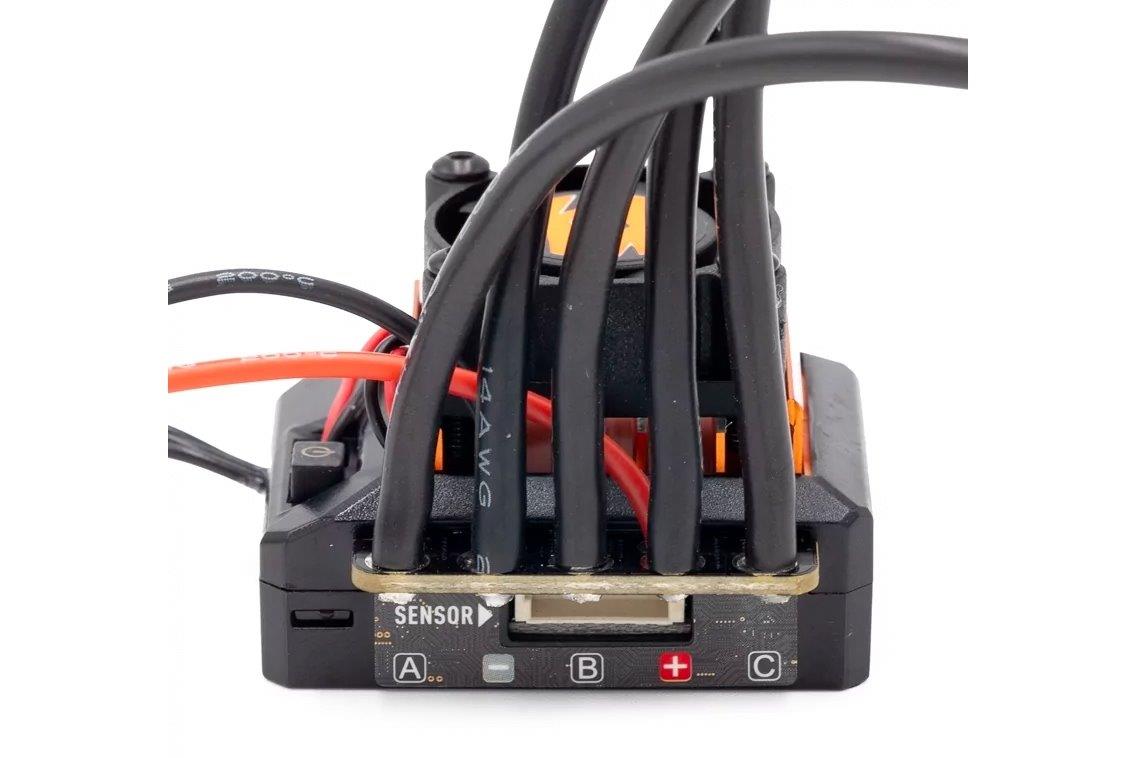

KONECT 1/10 Konect Elite 100 Amp 2S racing ESC with program card

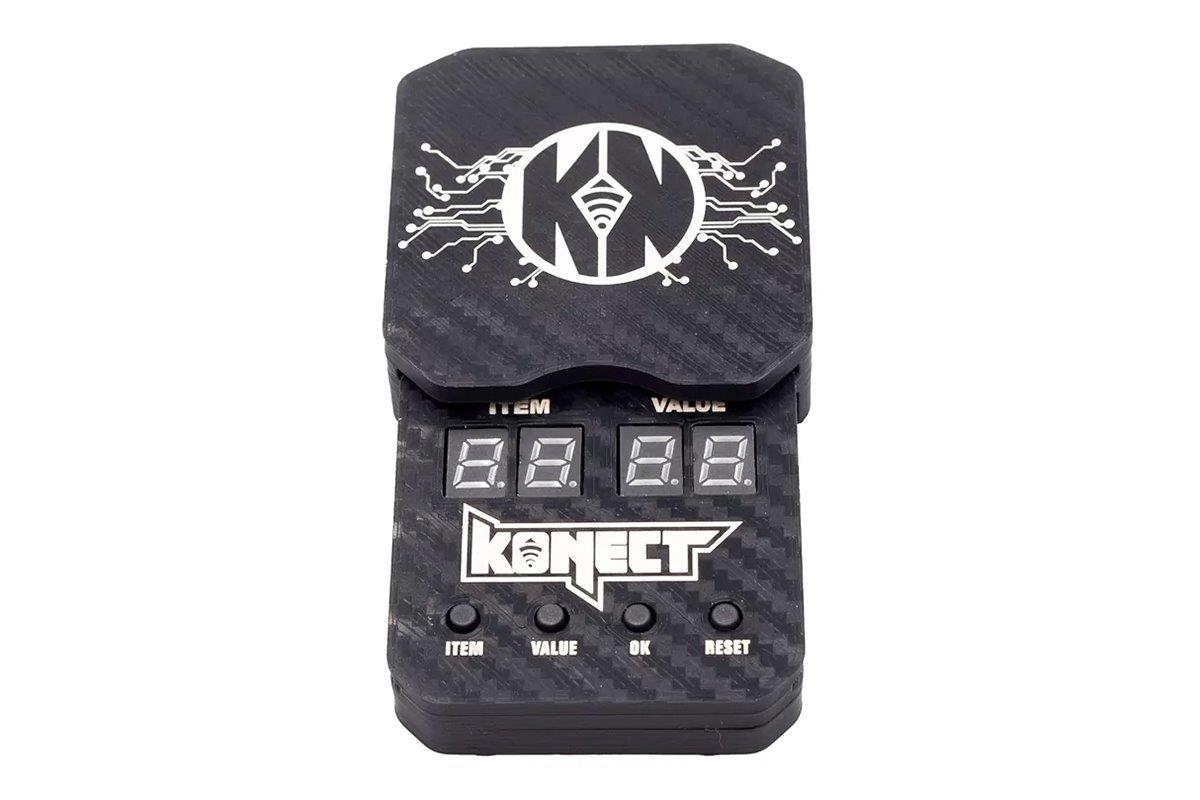

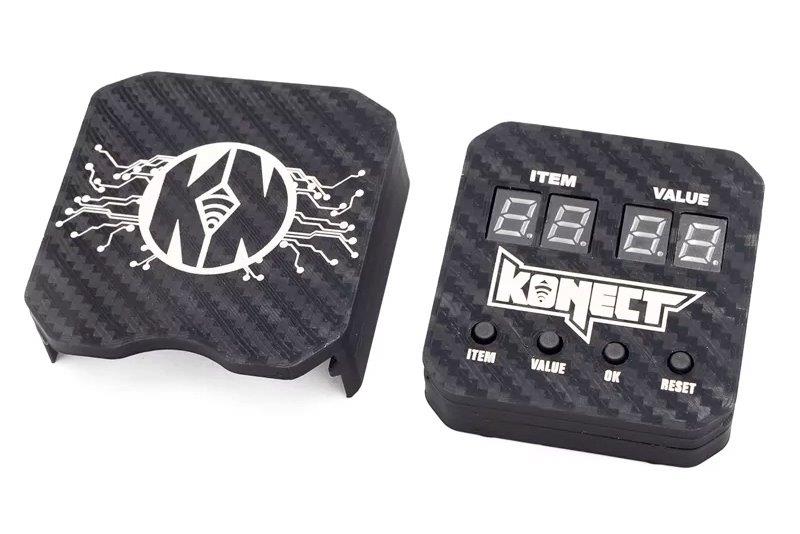

The Konect Elite 100A 2S ESC offers everything you need to fully unlock the potential of your 1:10 RC racing car with a sensored brushless motor. It is particularly suitable for stock on-road and off-road categories, but thanks to its adjustable boost and turbo timing, it can also be used in modified categories or drift cars. It offers a wide range of 16 programmable parameters for perfect adaptation to the motor, chassis, and track, and a practical programming card is included in the package.

Specifications:
• 32-bit processor
• Low resistance FET (field effect transistor)
• Direct current
• Dimensions: 44.5 × 39.5 × 31 mm (fan included)
• Weight: 73 g (cables included)
• Battery: 2S – 2S HV
• Continuous current: 100A
• Peak current: 180A
• Motor limit: >= 8.5T
• Motor type: Sensored 380 / 390 / 540 brushless motors
• BEC: 6V – 7.4V / 4A

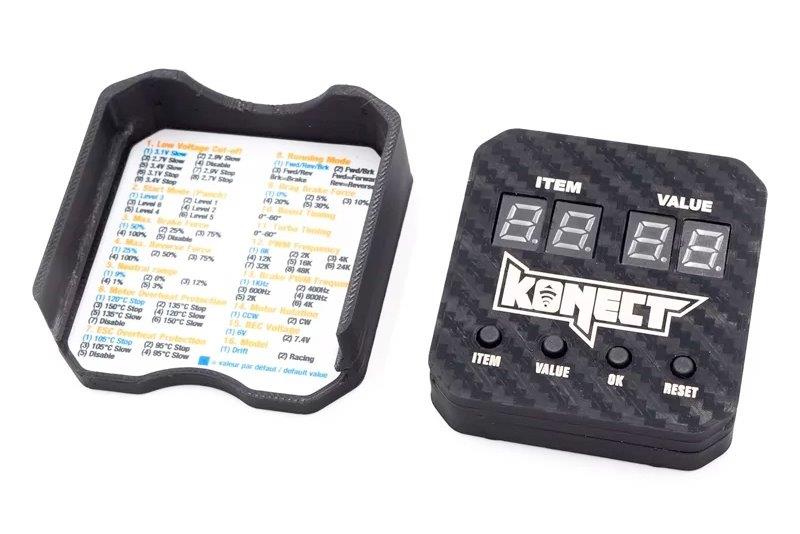

PROGRAMMABLE PARAMETERS:
• 1. Low Voltage Cut-off
• 2. Start Mode (Punch): Level 1 - 6
• 3. Max. Brake Force: 0 - 100%
• 4. Max. Reverse Force: 25 - 100%
• 5. Neutral Range: 1 - 12%
• 6. Motor Overheat Protection
• 7. ESC Overheat Protection
• 8. Running Mode: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
• 9. Drag Brake Force: 0 - 30%
• 10. Boost Timing: 0 - 60 deg.
• 11. Turbo Timing: 0 - 60 deg.
• 12. PWM Frequency: 2 - 48 kHz
• 13. Brake PWM Frequency: 400 Hz - 4 kHz
• 14. Motor Rotation: CCW, CW
• 15. BEC Voltage: 6V, 7.4 V
• 16. Model: Drift, Racing
