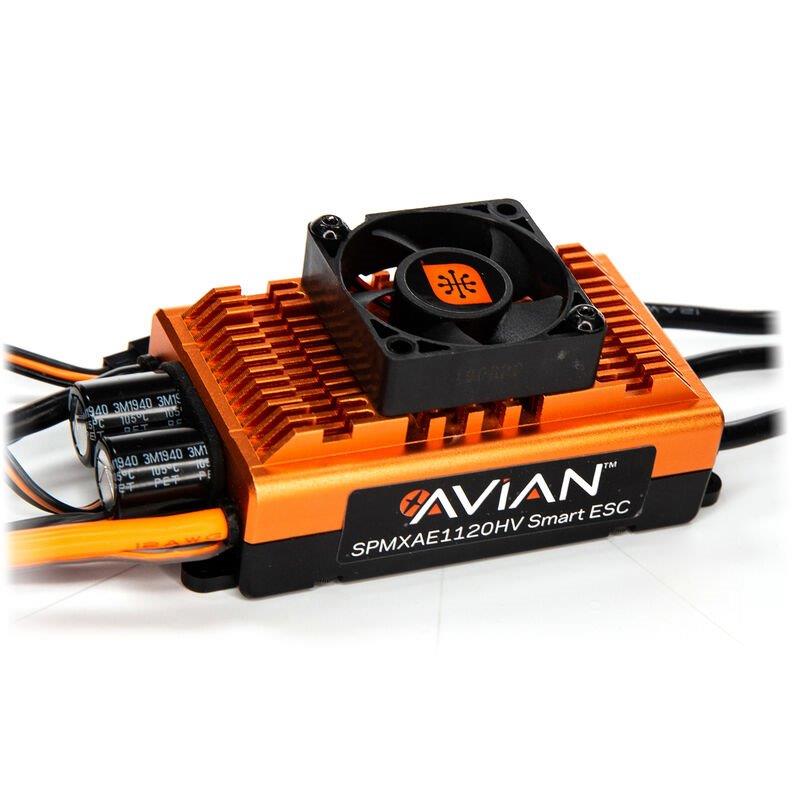

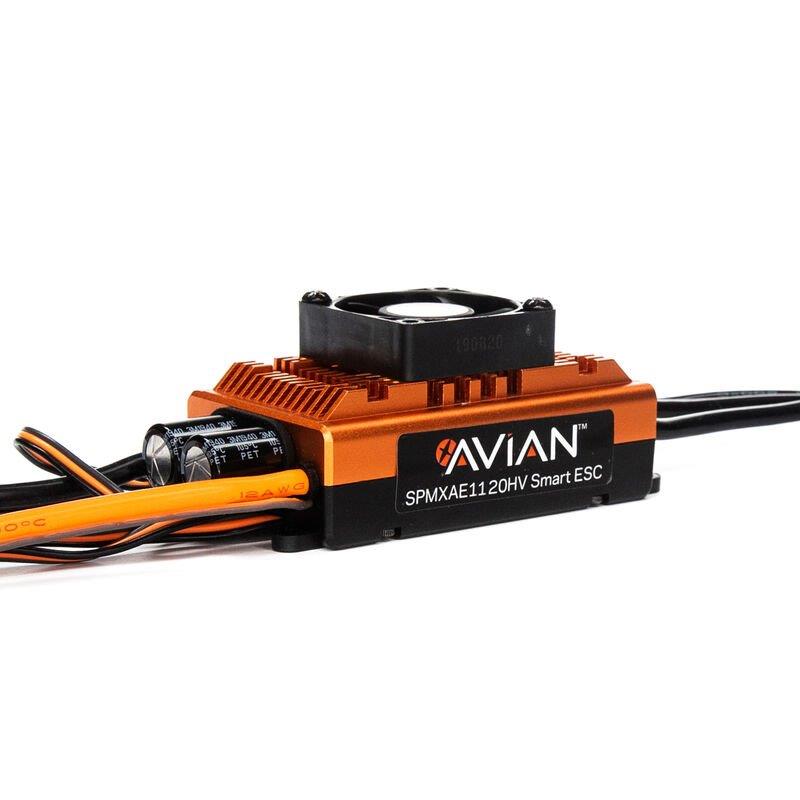

Spektrum Avian 120 Amp Brushless Smart ESC 6S - 12S
2 775 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXAE1120HV
Product Details
Key Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming
Up to 12S input voltage for high speed and top performance
Ideal for giant scale fixed wing aircraft and 600 sized and above helicopters
In The Box
(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
o Throttle stick programming
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required

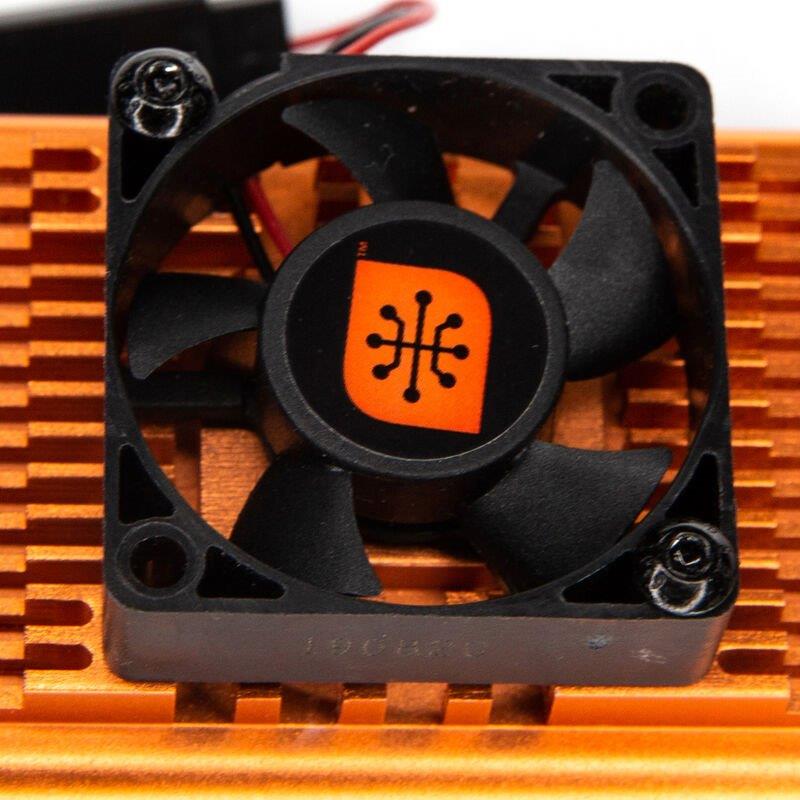

Heat dissipating design
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Amperage: 120A or larger
BEC Type: Switch mode
Max Input Voltage: 50.4V
Battery Input Lead: IC5
Product Width: 1.8" (46 mm)
Technology: Smart
Forward: Yes
Reverse: Yes
Wire Gauge: 12 AWG
Adjustable Timing: Yes
Brakes: Yes
Programmable: Yes
Programming Options: Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Connector Type: IC5
ESC Type: Brushless
Product Length: 3.5" (89 mm)
Application: Air
Auto Cutoff: Yes
BEC Continous Current: 8
Low-Voltage Cutoff Programmable: Yes
Output: 120A

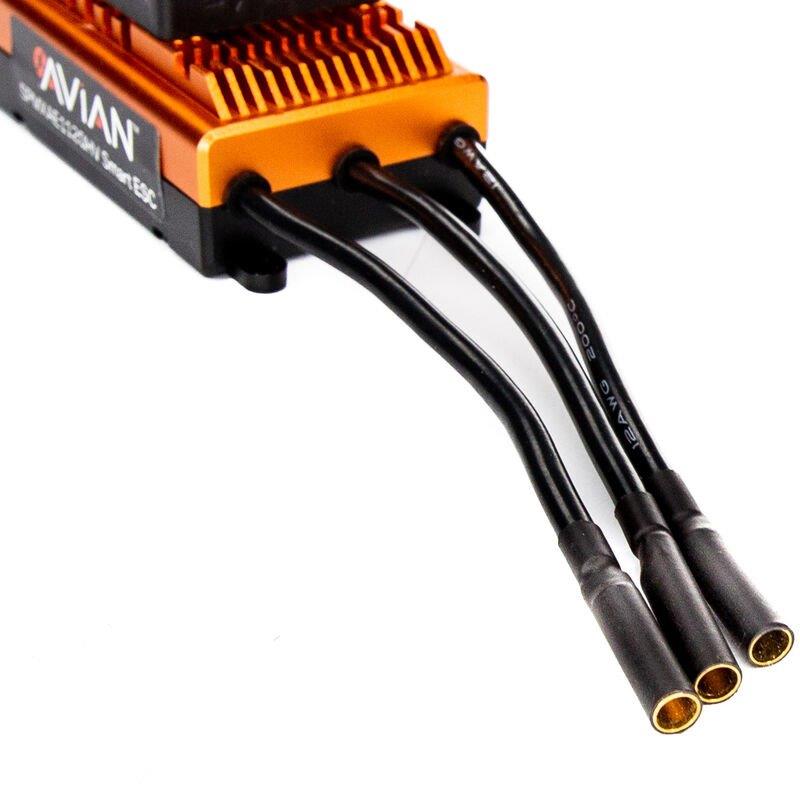

Output Connector: 6mm Bullet
Overload Protection: Yes
Product Weight: 0.43
Maximum Burst Current: 140A
Maximum Continuous Current: 120A
BEC: Yes
BEC Maximum Burst Current: 25A
BEC Voltage: 6.0V / 7.4V / 8.4V
Input Voltage: 22.2 - 50.4V
Part Type: Electronics
Product Application: Air
Product Height: 1.1" (28 mm)
Key Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming
Up to 12S input voltage for high speed and top performance
Ideal for giant scale fixed wing aircraft and 600 sized and above helicopters
In The Box
(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
o Throttle stick programming
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Heat dissipating design
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Avian Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Amperage: 120A or larger
BEC Type: Switch mode
Max Input Voltage: 50.4V
Battery Input Lead: IC5
Product Width: 1.8" (46 mm)
Technology: Smart
Forward: Yes
Reverse: Yes
Wire Gauge: 12 AWG
Adjustable Timing: Yes
Brakes: Yes
Programmable: Yes
Programming Options: Transmitter Stick Input, Programming Box, On Screen Text Gen, Smartlink App
Connector Type: IC5
ESC Type: Brushless
Product Length: 3.5" (89 mm)
Application: Air
Auto Cutoff: Yes
BEC Continous Current: 8
Low-Voltage Cutoff Programmable: Yes
Output: 120A
Output Connector: 6mm Bullet
Overload Protection: Yes
Product Weight: 0.43
Maximum Burst Current: 140A
Maximum Continuous Current: 120A
BEC: Yes
BEC Maximum Burst Current: 25A
BEC Voltage: 6.0V / 7.4V / 8.4V
Input Voltage: 22.2 - 50.4V
Part Type: Electronics
Product Application: Air
Product Height: 1.1" (28 mm)
