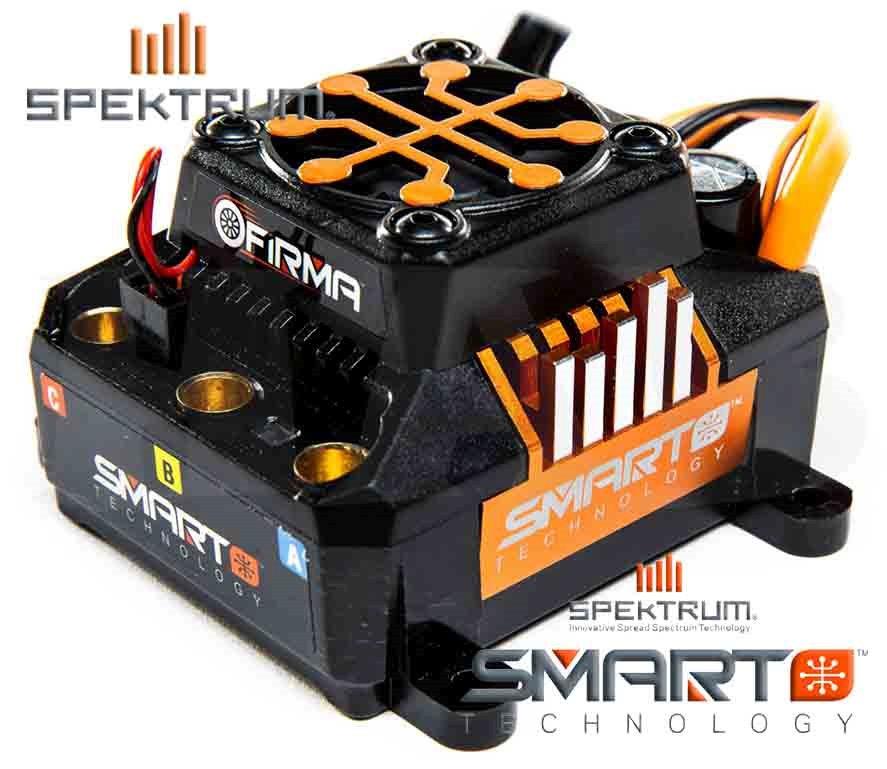

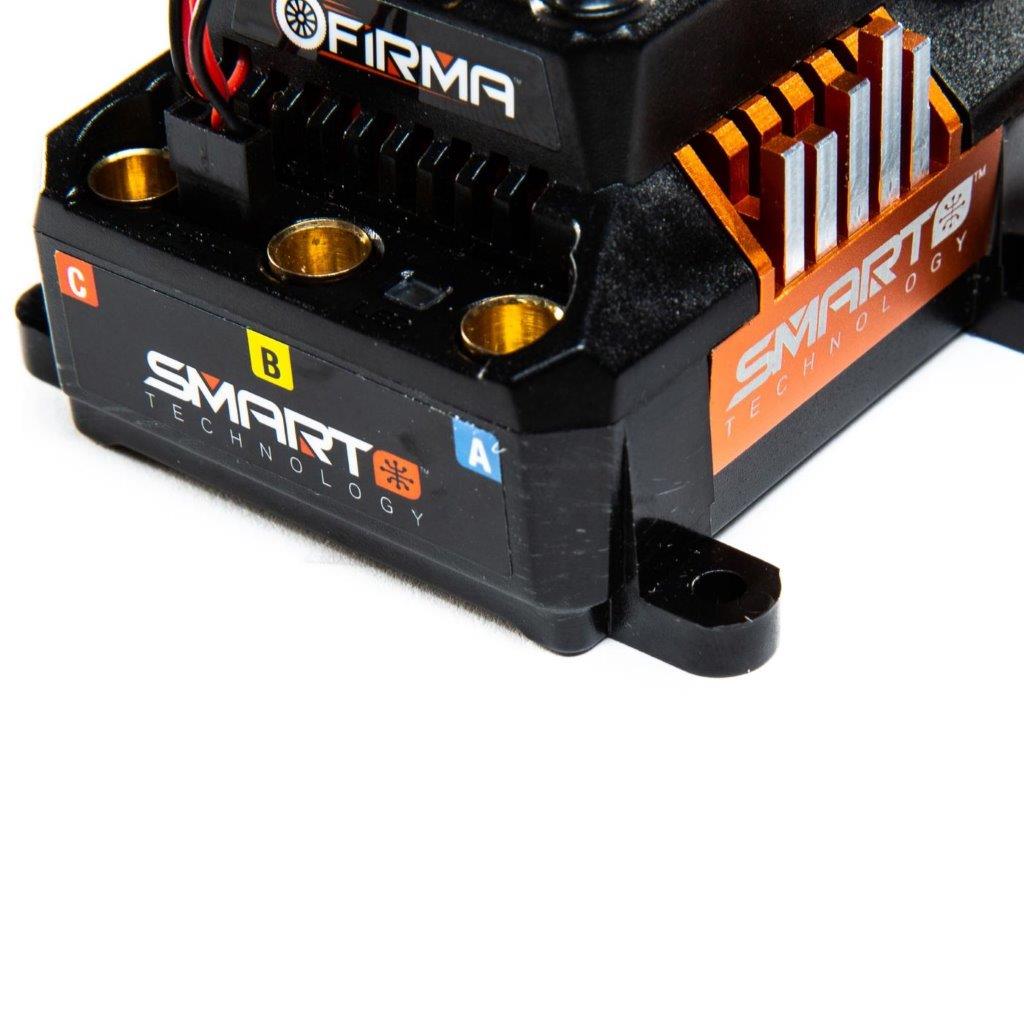

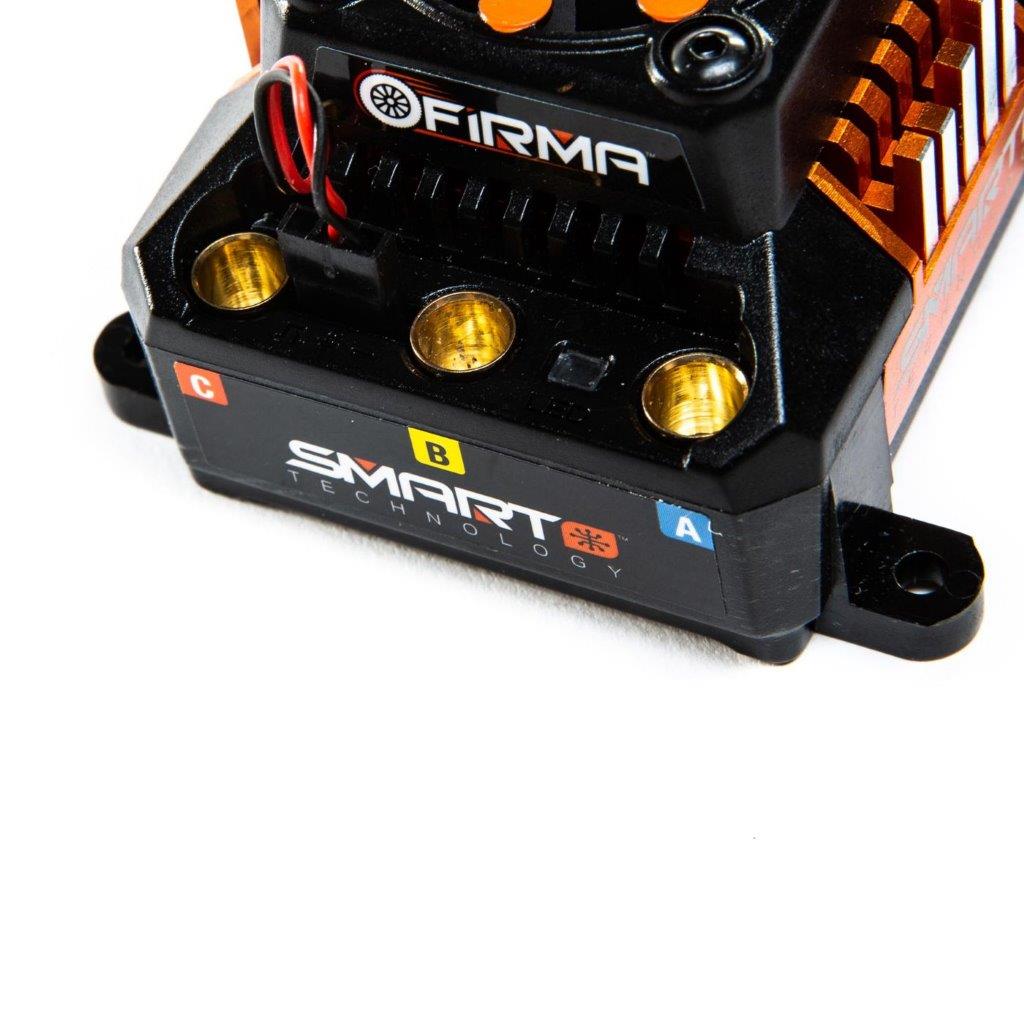

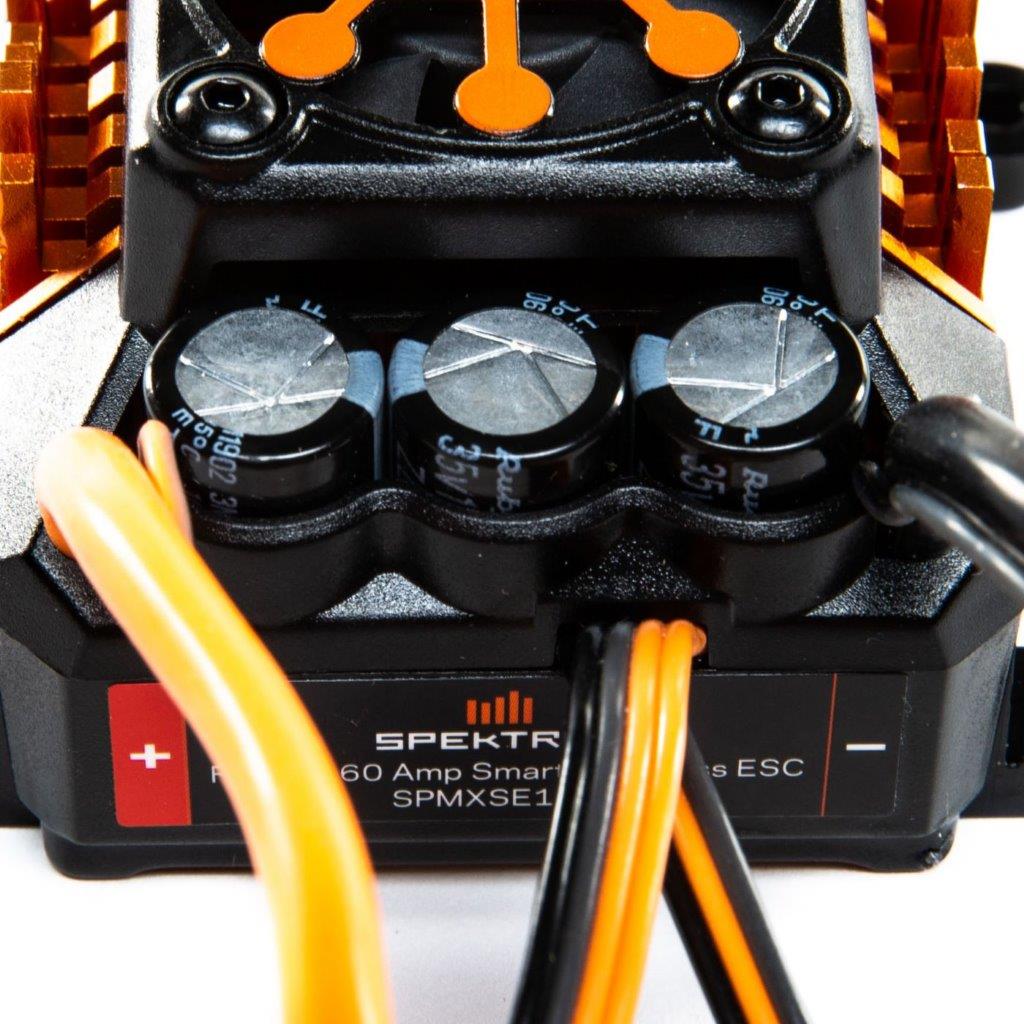

Spektrum Firma 160 Amp Brushless Smart ESC 3S - 8S
2 775 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSE1160
Product Details
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:

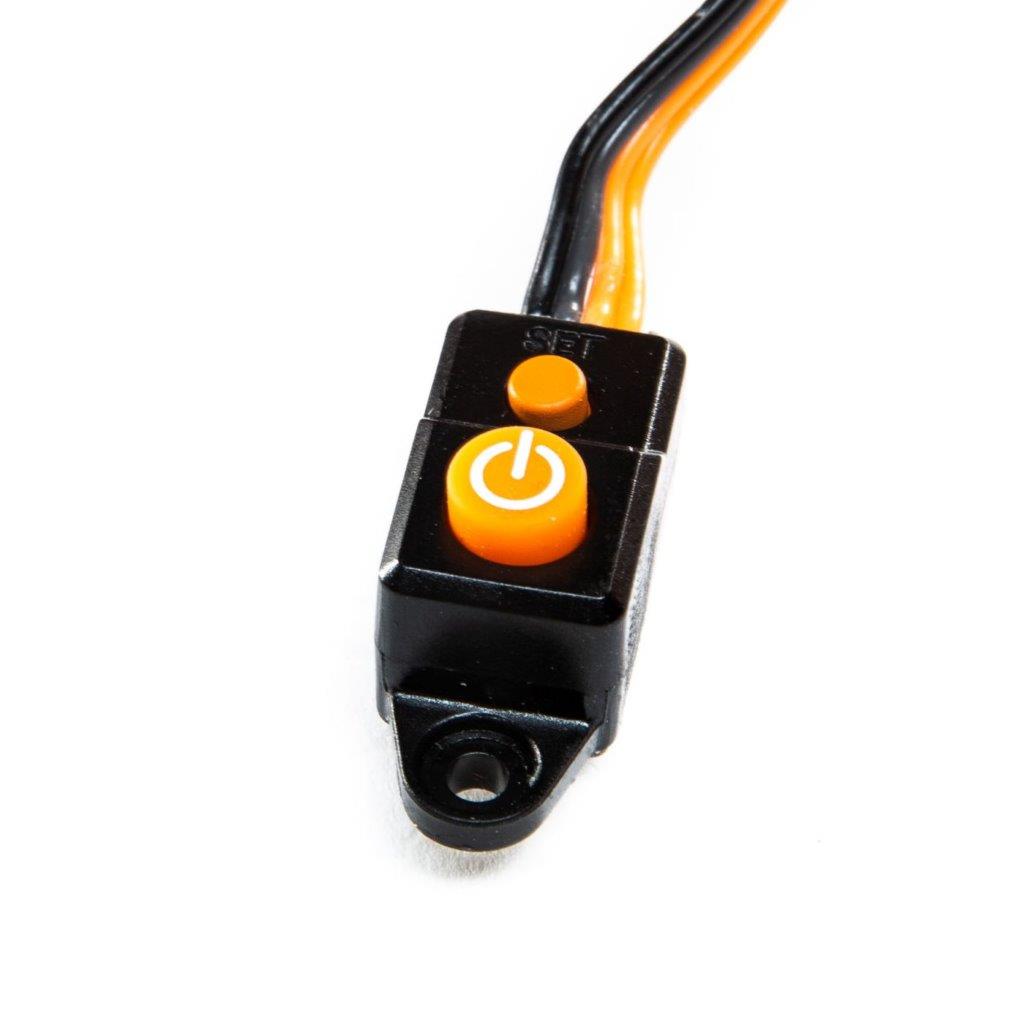

o Button programming
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency

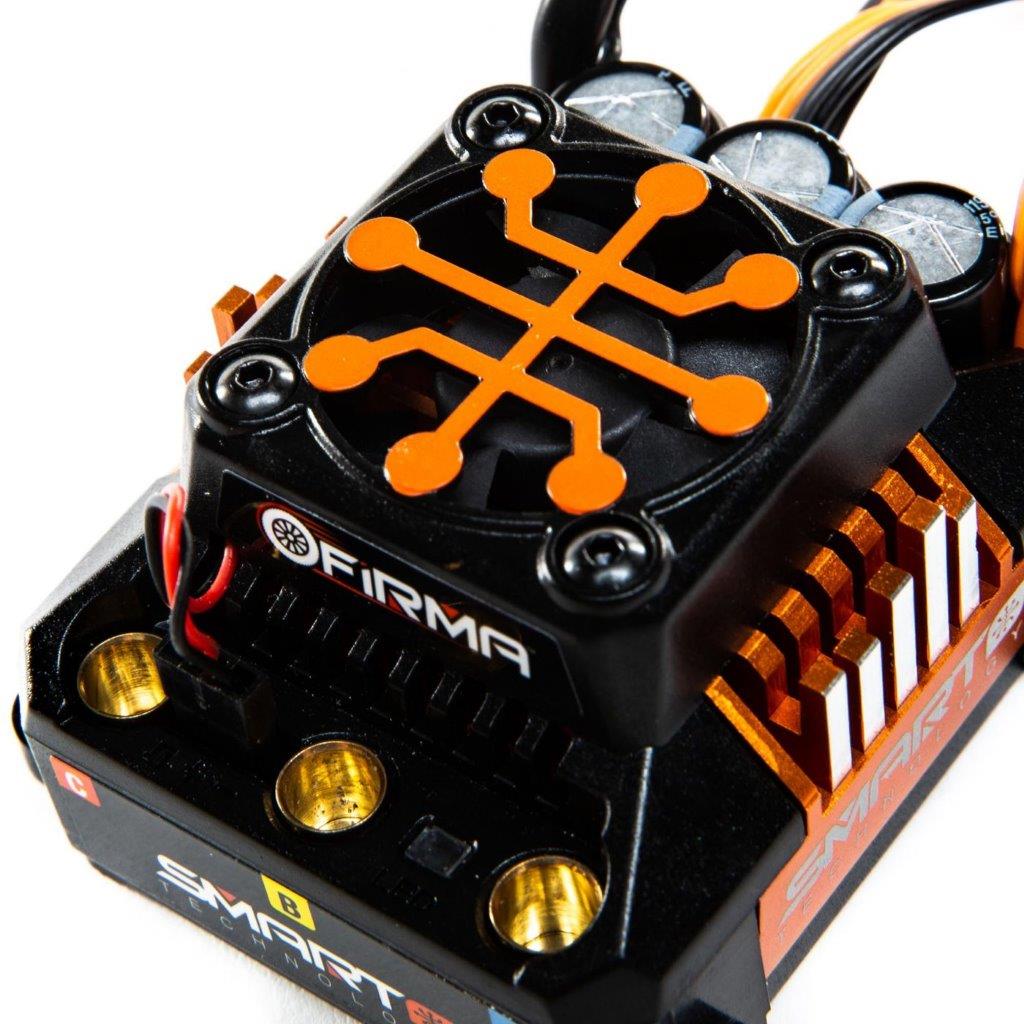

Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box

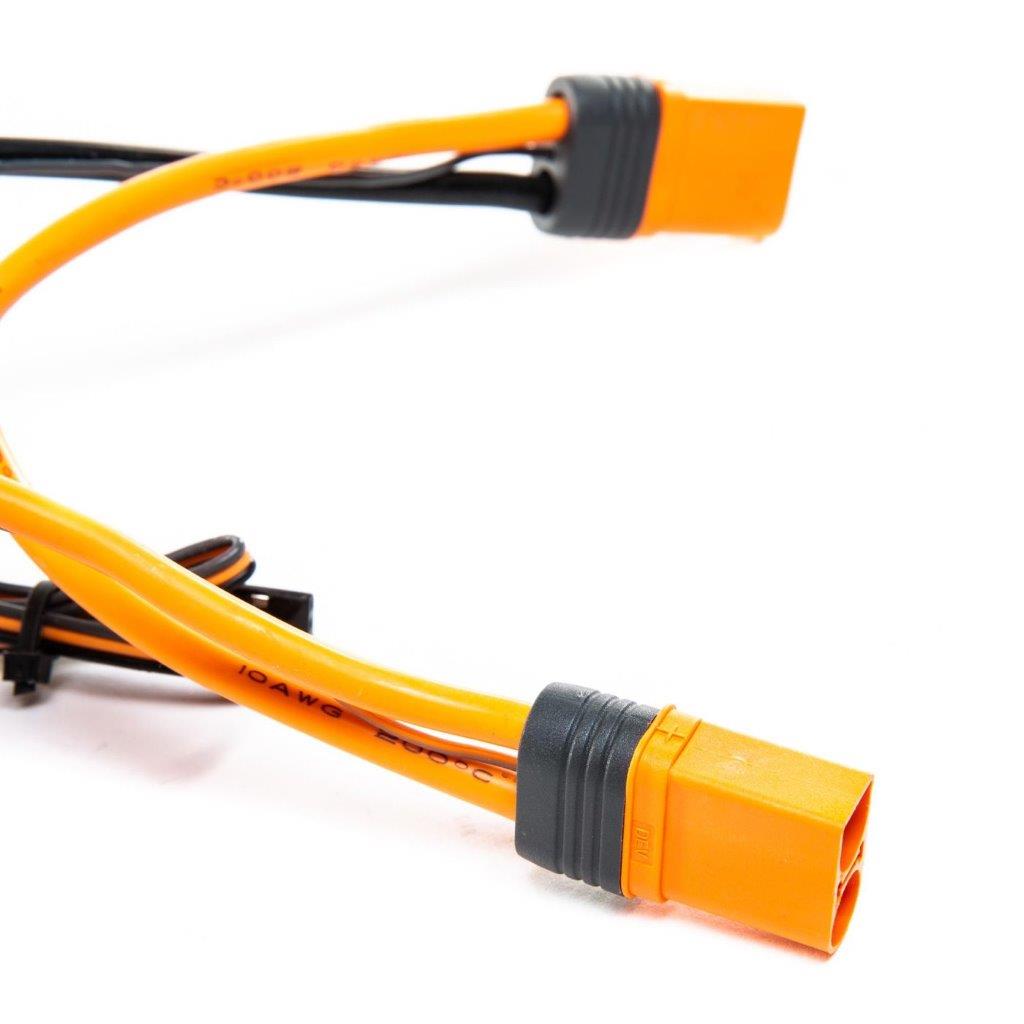

High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Forward: Yes
Reverse: Yes
Brakes: Yes
Programmable: Yes
Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
Product Weight: 9.9oz (280g)
Application: Surface
Auto Cutoff: Yes
BEC Continous Current: 5
Low-Voltage Cutoff Programmable: Yes
Overload Protection: Yes
Amperage: 120A or larger
BEC Type: Switch Mode
Max Input Voltage: 29.V
Connector Type: IC5
ESC Type: Brushless
Product Length: 2.7" (70mm)
BEC: Yes
BEC Voltage: 6V
Input Voltage: 3S - 8S LiPo
Motor Output Lead: 6.5mm
Product Application: Surface
Product Height: 1.8" (44mm)
Maximum Burst Current: 1050A
Maximum Continuous Current: 160A
Battery Input Lead: IC5
Product Width: 3.03" (77mm)
Technology: Smart
