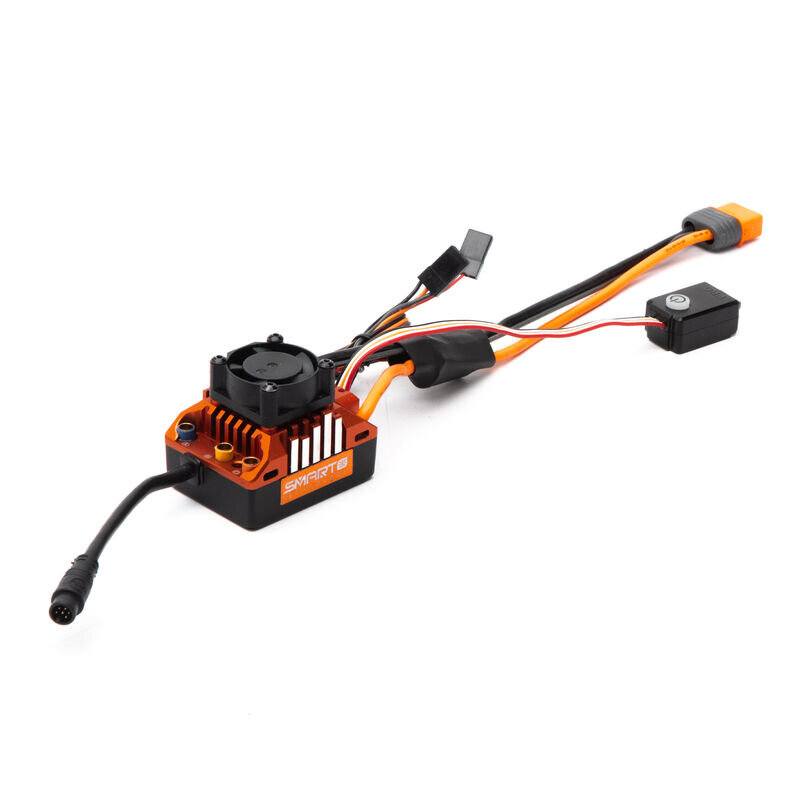

Spektrum Firma Crawler 120A Sensored BL Smart ESC
3 107,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSE1080
Product Details
The Spektrum Firma Sensored Smart ESC is specifically engineered to be used with 6th scale Crawlers and Scalers, such as the Axial® SCX6. Featuring advanced Smart connectivity, professional drag brake performance and torque control, all while being fully waterproof.
Key Features
2S-4S LiPo Compatible
Waterproof ESC
Smart All-in-one Telemetry
Pro-level Drag Brake Performance and Adjustability
120 Amp Power for Giant Scale Crawlers and Extremely Heavy Crawlers
In The Box
(1) Spektrum Firma 120A Sensored Brushless Crawler ESC
(1) Product Manual
(1) Sticker Sheet and Mounting Tape
(1) Optional ESC Fan
Needed to Complete
(1) Spektrum Firma Sensored Brushless Crawler Motor
(1) 2S or 4S Lipo Battery with EC5 or IC5 Connector
(1) Spektrum Transmitter
(1) Spektrum Surface Receiver
Key Benefits
Smart: Integrated Smart Technology
Sensored: Great for slow speed driving and next level drag brake performance
Program Via Transmitter: Proprietary Text Gen programming allows for programming the ESC from the transmitter
Features
Smart all-in-one telemetry
Pro-level drag brake performance and adjustability
RPM/Throttle matching enabled
FOC (Field-Oriented Control) equipped
120 Amp power for giant scale crawlers and extremely heavy crawlers
2S-4S LiPo compatible
Fast, powerful 32-bit ARM M4 processor
Waterproof ESC

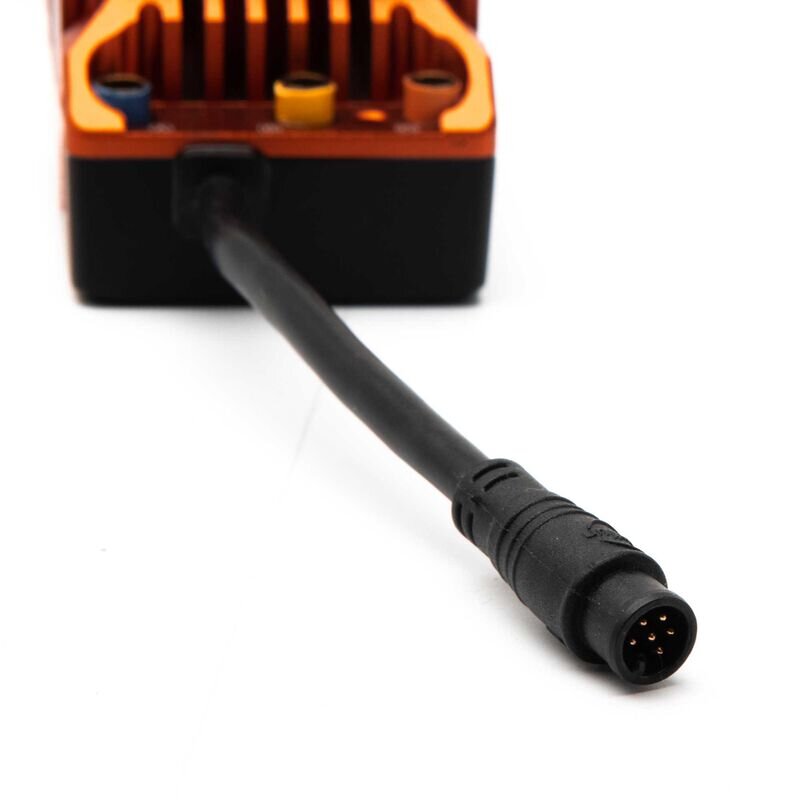

Waterproof sensor wire with locking plug and gasket
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Aluminum heat sink for high efficiency
Includes optional cooling fan
Adjustable high-power BEC (6V or 7.4V)
Firmware updatable through the Smart ESC Programming Box

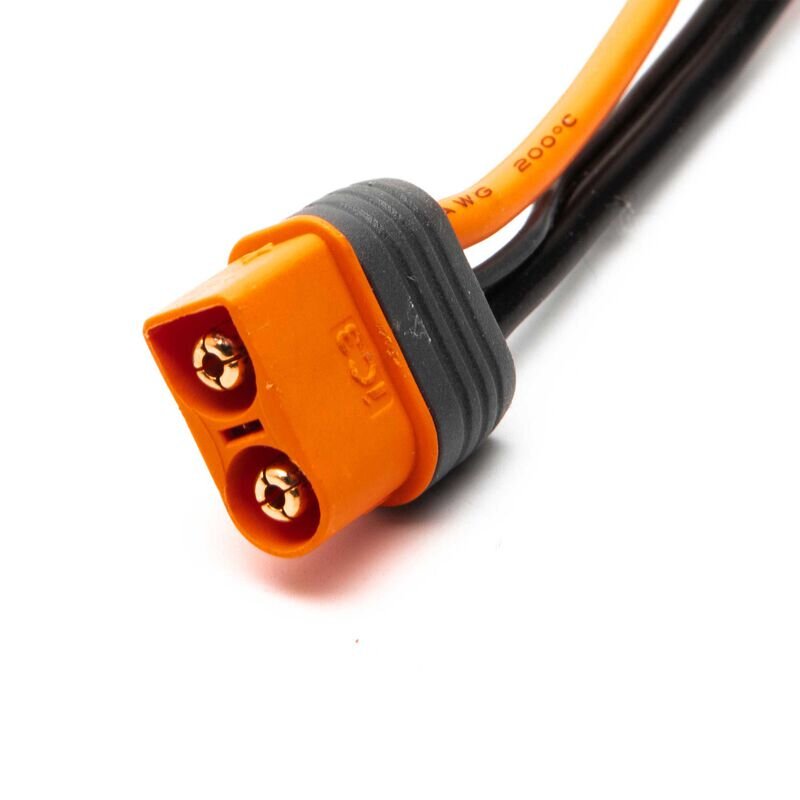

High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Multiple Options For Easy Programming
Smart ESC Programming Box (V2 Programming Box Required)
SmartLink USB Updating and Programmer application
Programming from Transmitter via Text Gen Telemetry
Multi-point Protection
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Overview
The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 6th scale Crawlers and Scalers, such as the Axial® SCX6. Featuring advanced Smart connectivity, professional drag brake performance and torque control, all while being fully waterproof.
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data, but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Product Width: 1.4" (36 mm)
Technology: Smart
Connector Type: IC5
ESC Type: Brushless Sensored
Product Length: 1.9" (48 mm)
Amperage: 120A or larger
BEC Type: Switchable
Max Input Voltage: 14.8V
Maximum Burst Current: 360A
Maximum Continuous Current: 120A
BEC: Yes
BEC Voltage: 6V/7.4V
Motor Limit: Only Spektrum sensorless motors
Motor Output Lead: 3.5mm
Product Application: Crawling, Surface
Product Height: 0.96" (24 mm)
Brakes: Adjustable drag brake force
Programmable: Yes
Programming Options: Programming Box, Smartlink App, On Screen Text Gen
Forward: Yes
Reverse: Yes
Application: Crawling
BEC Continous Current: 3
Low-Voltage Cutoff Programmable: Yes
Output Connector: 3.5mm Bullet
Overload Protection: Yes
Product Weight: 2.89oz (82g)
Water-Resistant: Yes
