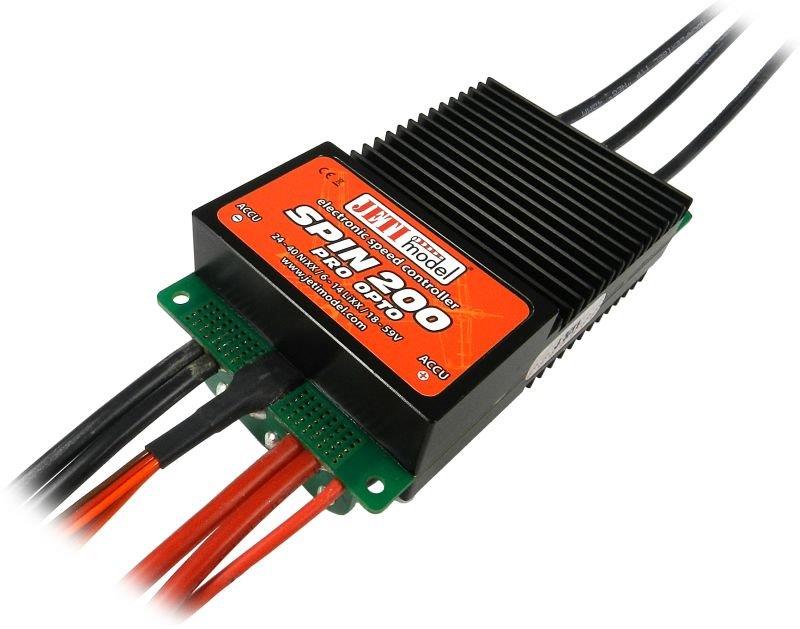

SPIN 200 PRO opto ESC JETI
4 885 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 10026884.1
Description
Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).
SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.
Parameters:
Weight [g]: 326
Dimensions [mm]: 63 x 120 x 27
Sustained current [A]: 170
Supply Voltage [V]: 18 to 59
Batteries LiXX: 6 to 14
Max. Current BEC [A]: -
OPTO (optically separated radio signal from the power management): Yes
Voltage BEC [V]: -
Telemetry: Yes
Operational temperature [°C]: -10 to 85
Max. number of servos: -
Resistance in conducting state [mΩ]: 2 x 1.00
Number of power transistors: 30
Cable crossection (input/output) [mm²]: 2 x 4.0 / 4.0
Input capacitance [µF]: 6 x 820
Batteries NiXX: -
