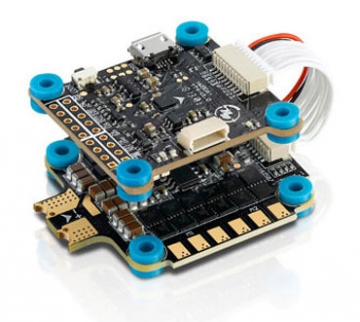

Fartreglage Xrotor MicroCube FC och 45A 3-6S 4-in-1 ESC Combo
859 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW38040300
Hobbywing XRotor MicroCube FC & 45A 4in1 BLHeli32 6S ESC Combo
This new 4-in-1 ESC is designed for competition FPV racing - small in size and loaded with features. This combo set is also including the matching XRotor Micro-F4-G2 Flight Control unit.
Features:
High performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.
BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work
excellently in normal operating environments.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
On board 10V &5V BEC , powering different accessories such as FC , VTx ,Camera and LED lights and etc.
Firmware: Hobbywing_XRotor_BLHeli_32 Version
ESC Programming: BLHeliSuite32
Stick Programming: Supported
DEO: Supported
Throttle Range Calibration: Supported
Oneshot125 Mode: Supported
Oneshot42 Mode: Supported
MultiShot Mode: Supported
DShot150/300/600/1200: Supported
Timing: Supported
Motor Rotation: Supported
ESC 4in1 Specifications:
Applications: 130-300mm FPVs
Size: 32.7 x 18.4 x 6.2 mm
Mounting holes: 30.5 x 30.5 mm
Weight: 11.5g
Cont./Peak Current: 4x 45A / 4x 60A
Input Voltage: 3-6S LiPo
BEC output: 5V@1.5A & 10V@1.5A
Input Wires: 12AWG 130 mm
Output Wires: No wires but solder tabs
Input Connectors: XT60 (w/ Wires Soldered on)
Output Connectors: No
XRotor Micro-F4-G2 Flight Control Unit Specs:
Compatible with (Multirotors): Quadcopter
Firmware: OMNIBUSF4SD
FC Programming: Supported
Programming via: Betaflight / Cleanflight-configurator or Others
Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200 & Proshot1000 etc
Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF & SRXL etc
OSD: Built-in
Voltage Monitoring: Supported
Current Monitoring: Supported
External Buzzer: Supported
LED Control: Supported
BEC: No
USB Port: MicroUSB
Size: 36 x 36 mm
Mounting holes: 30.5 x 30.5 mm
Weight: 6g
Applications: 130-300 mm FPVs
