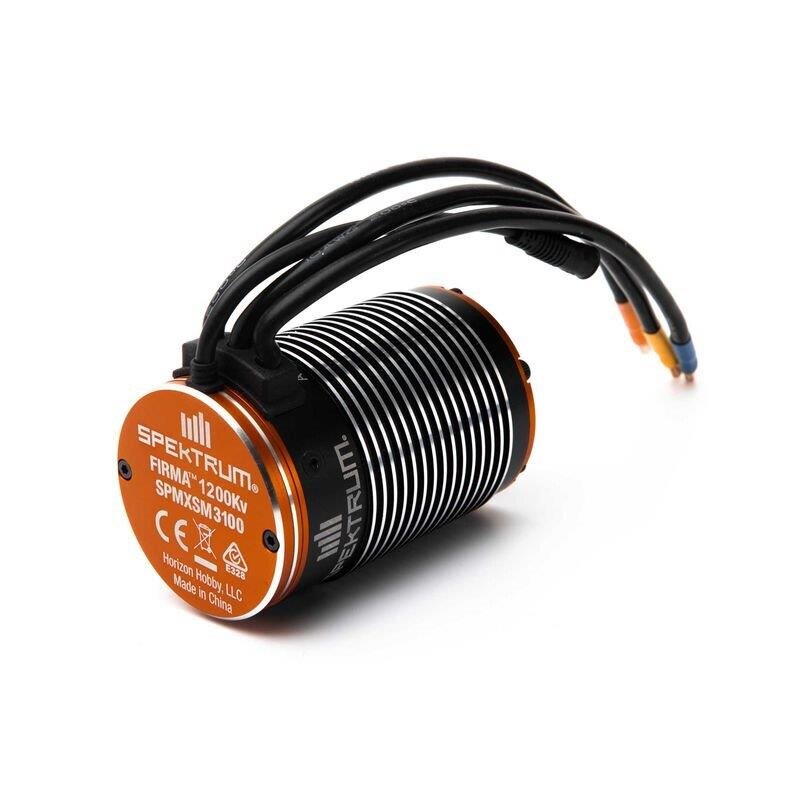

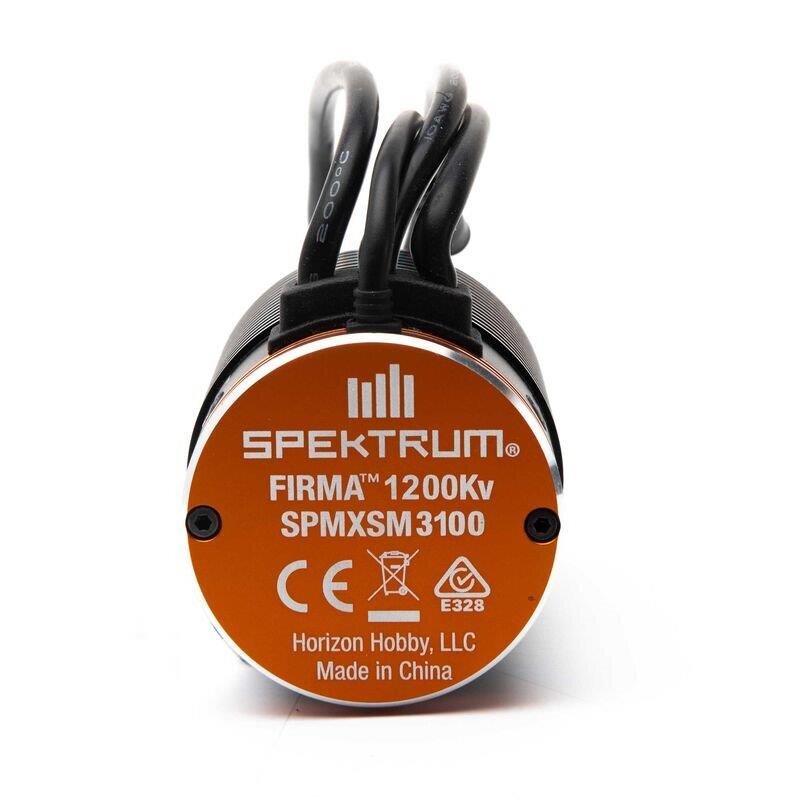

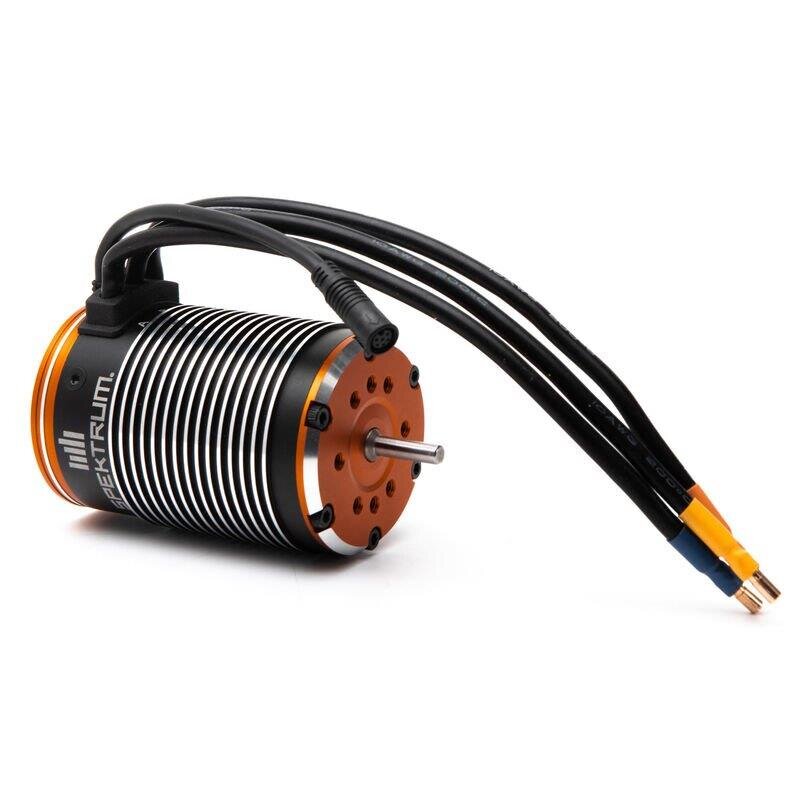

Spektrum FIRMA 1200Kv 1/6 BL Sensored Crawler Motor
3 107,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSM3100
Product Details
Features
Large 5684 can size to fit the demands of giant scale crawlers and scalers
FOC (Field-Oriented Control) equipped
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
3.5mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 5mm output shaft
Overview
The Firma 1200Kv Sensored Brushless Motor is a great choice for giant scale crawlers, rock racers, and trailers running on 2S 4S LiPo power. Specificly sourced for the Axial® SCX6 platform to provide the ultimate performance for maximum power and realism. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation.
The SPEKTRUM FIRMA 120A SENSORED BRUSHLESS SMART CRAWLER ESC IS REQUIRED
Product Specifications:
Application: 1/6 Rock Crawling
Output: 750W (3S)
Outer Diameter: 2.2" (56 mm)
Voltage: 4S/15V
Connector Type: 3.5mm Bullet
Product Length: 3.3" (84 mm)
Maximum Continuous Current: 80A
Motor Type: Brushless
Forward: Yes
Reverse: Yes
Product Application: Crawling, Surface
RPM/Volt (Kv): 1160
Features
Large 5684 can size to fit the demands of giant scale crawlers and scalers
FOC (Field-Oriented Control) equipped
High-quality 4-pole sintered rotor
Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
3.5mm gold plated bullet connectors
Waterproof sensor wire with locking plug and gasket
High-quality construction with precision ball bearings and hardened steel 5mm output shaft
Overview
The Firma 1200Kv Sensored Brushless Motor is a great choice for giant scale crawlers, rock racers, and trailers running on 2S 4S LiPo power. Specificly sourced for the Axial® SCX6 platform to provide the ultimate performance for maximum power and realism. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation.
The SPEKTRUM FIRMA 120A SENSORED BRUSHLESS SMART CRAWLER ESC IS REQUIRED
Product Specifications:
Application: 1/6 Rock Crawling
Output: 750W (3S)
Outer Diameter: 2.2" (56 mm)
Voltage: 4S/15V
Connector Type: 3.5mm Bullet
Product Length: 3.3" (84 mm)
Maximum Continuous Current: 80A
Motor Type: Brushless
Forward: Yes
Reverse: Yes
Product Application: Crawling, Surface
RPM/Volt (Kv): 1160
