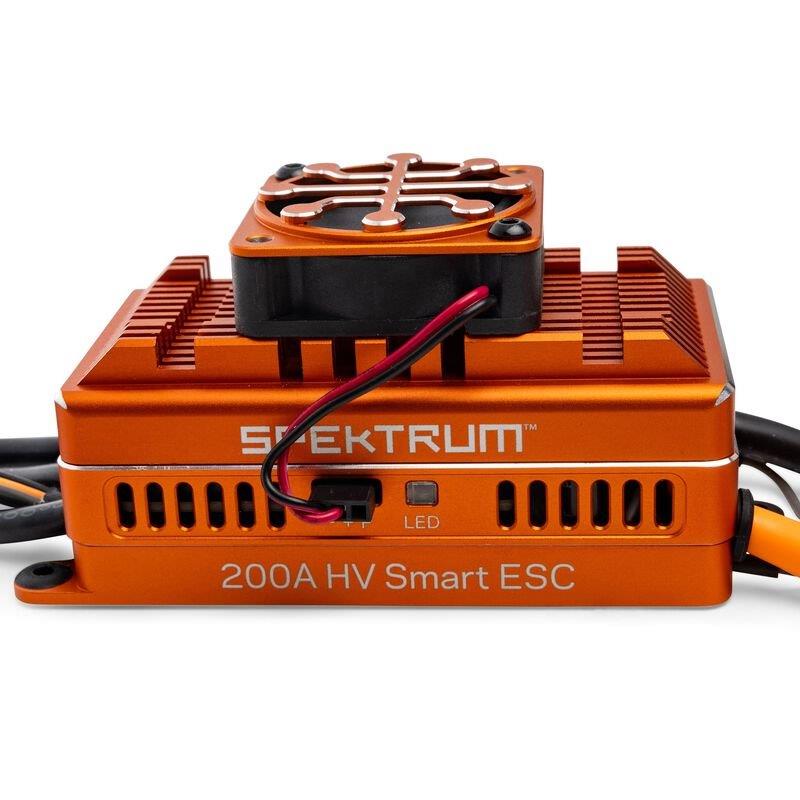

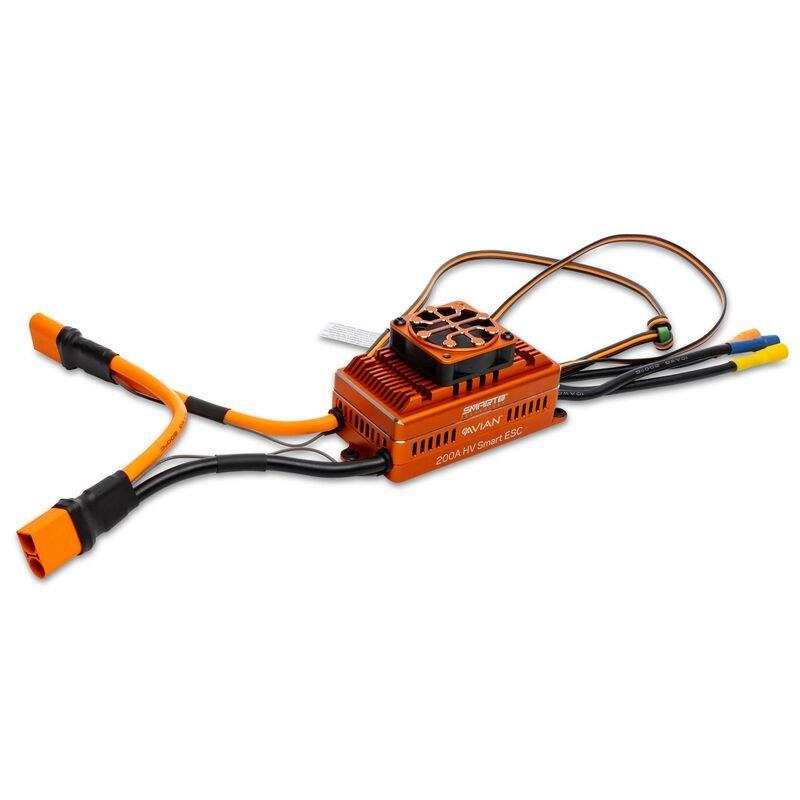

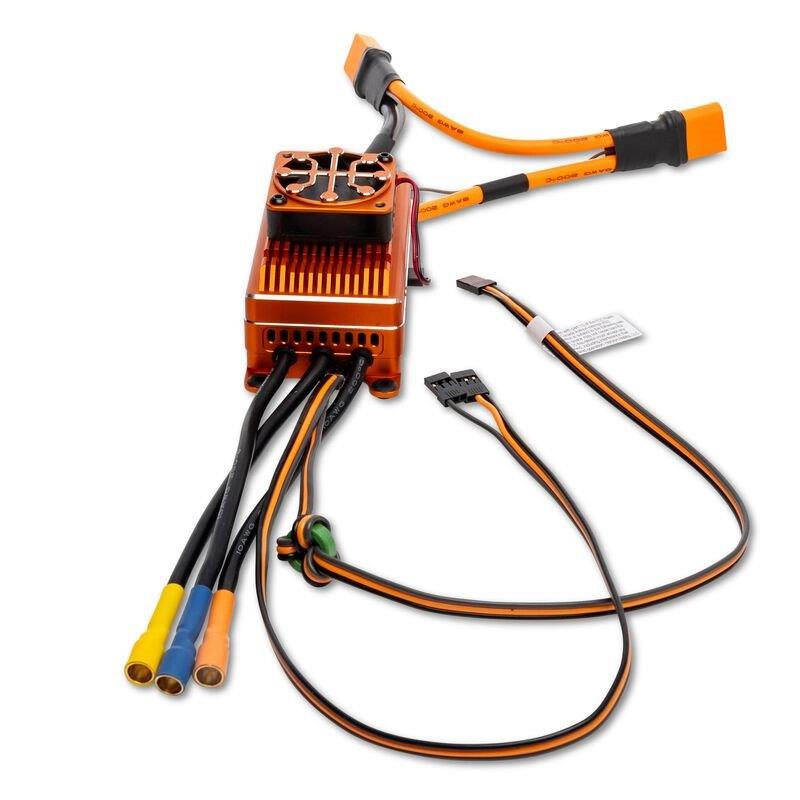

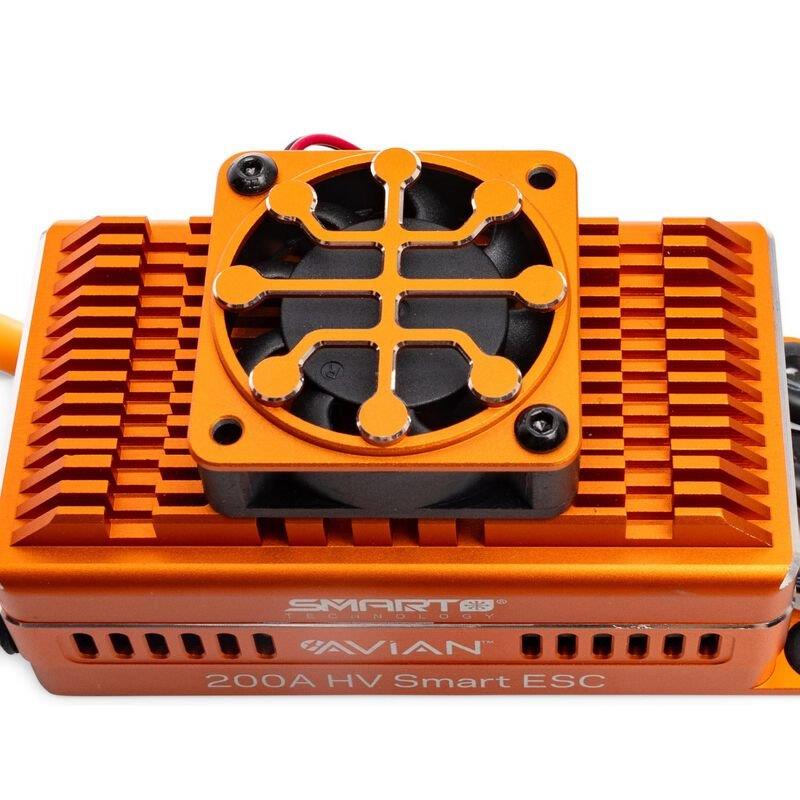

Spektrum Avian 200A HV Brushless Smart ESC 6S-14S
6 479 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXAE1200HV
Product Details
Key Features
Smart All-in-one Telemetry
Fast, Powerful 32-bit ARM M4 Processor
Compact For Easy Installation In Most Applications
Ready To Install No Soldering Required
Limited 1-year Warranty
In The Box
(1) Spektrum Avian Smart 200A HV Brushless ESC
(1) Spektrum Smart Sticker Sheet
(1) Product Manual
Needed to Complete
Spektrum Aircraft Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
o Throttle stick programming
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Heat dissipating design
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Overview
Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Manufacturer # 605482179864
Forward Yes
Reverse Yes
Product Width 1.96" (50 mm)
Technology Smart
Connector Type IC5
Product Length 3.5" (89 mm)
BEC Type Adjustable
Programmable Yes
Maximum Burst Current 300A
Maximum Continuous Current 200A
Motor Type Brushless
Product Weight 376g (13.3oz)
Application Air Motor
Auto Cutoff Yes
BEC Continous Current 10A
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
BEC Yes
BEC Maximum Burst Current 25A
BEC Voltage 6.0V/7.4V/8.4V
Input Voltage 6S - 14S LiPo
Product Height 1.4" (36 mm)
