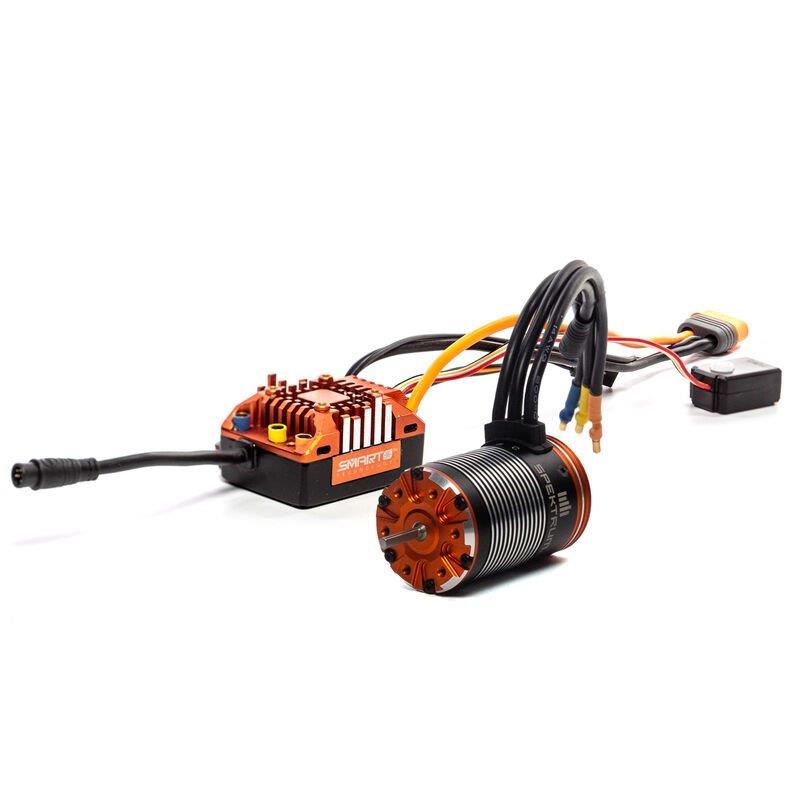

Spektrum Firma 60A Brushless Smart ESC / 2100Kv Sensored Motor Crawler Combo
3 119 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSEMC08
Product Details
The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.
Key Features
Pro-level Performance Sensored Motor and ESC
Multiple options for easy programming
Multi-point protection
Waterproof System
Includes Optional Cooling fan
Introduction
The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Smart connectivity, professional Drag Brake Performance and torque control, all while being fully waterproof.
Features
Smart all-in-one telemetry
Pro-level Performance Sensored Motor and ESC
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
o Smart ESC Programming Box (V2 version required)
o SmartLink USB Updating and Programmer application
o Programming from Transmitter via Text Gen Telemetry
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install no soldering required
Waterproof System
Waterproof sensor wire with locking plug and gasket
Aluminum heat sink for high efficiency
Includes Optional Cooling fan
Adjustable high-power BEC (6V or 7.4V)
Firmware updatable through the Smart ESC Programming Box (V2 version required)
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Overview
The Spektrum Firma Sensored ESC System is a Combo that includes a Sensored 2100kv Motor and the Firma 60 Amp Sensored ESC, providing a perfect upgrade for 10th Scale Rock Crawlers and Scalers.
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Product Specifications:
Manufacturer # 605482725603
BEC Yes
BEC Voltage 6V/7.4V
Input Voltage 7.4 - 11.1V (2 - 3S LiPo), 7.2 - 10.8V (6 - 9S NiMH)
Kv Rating 2000-2499Kv
Motor Output Lead 4
Product Application Crawling, Surface
RPM/Volt (Kv) 2100Kv
Sensored Yes
Sensor Type Sensored FOC
Connector Type IC3
ESC Type Brushless Sensored
Motor Class 1/10 Scale
Application Crawling
Auto Cutoff Yes
BEC Continous Current 3
Low-Voltage Cutoff Programmable Yes
Number of Poles 4
Product Weight 11.3oz (320g) ESC and motor combined
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Forward Yes
Reverse Yes
Brakes Adjustable drag brake
Integrated ESC No
Programmable Yes
Programming Options Programming Box, Smartlink App, On Screen Text Gen
Battery Input Lead IC3
Technology Smart
Constant Wattage 500-749W
Maximum Burst Current 360A
Maximum Continuous Current 60A
Motor Type Brushless
Amperage 60A - 79A
BEC Type Switchable
Max Input Voltage 11.1V
Motor Design Inrunner
