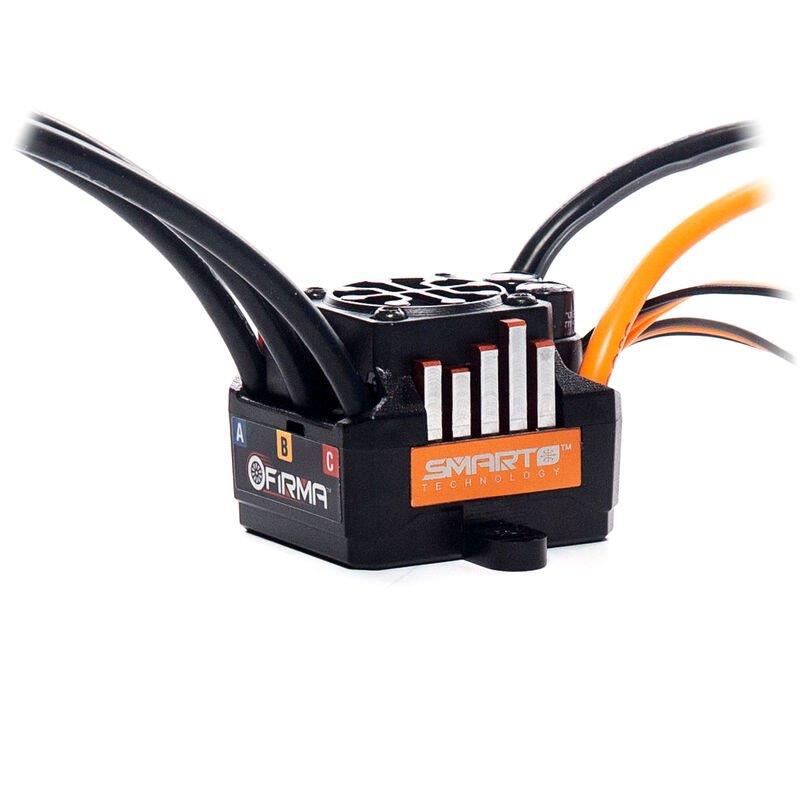

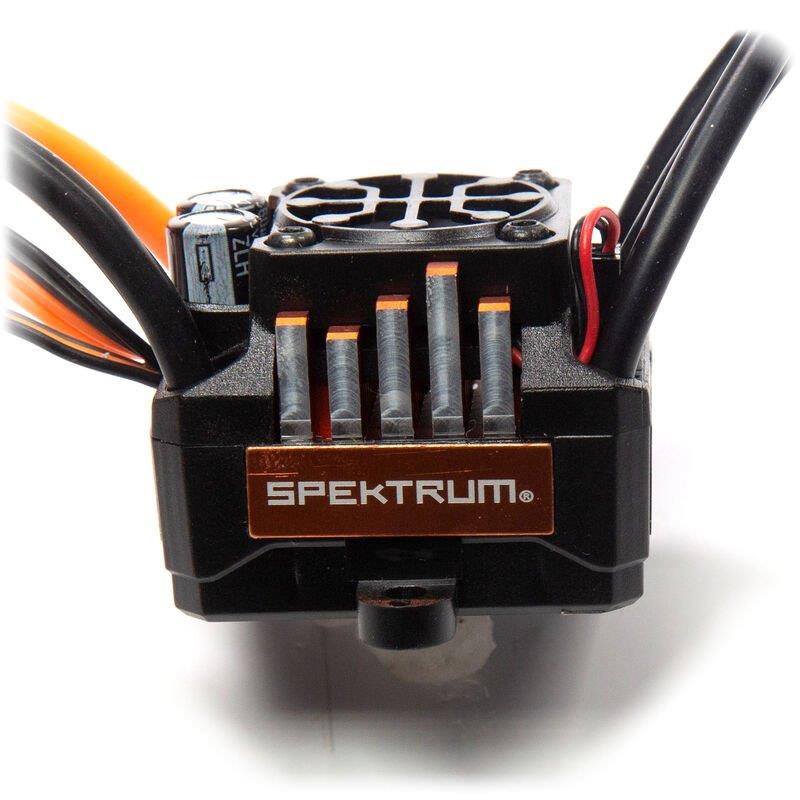

Spektrum Firma 85A Brushless Smart ESC, 2S-3S
887,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: SPMXSE1085
Product Details
Spektrum Firma 85A Smart ESC for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.
Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:

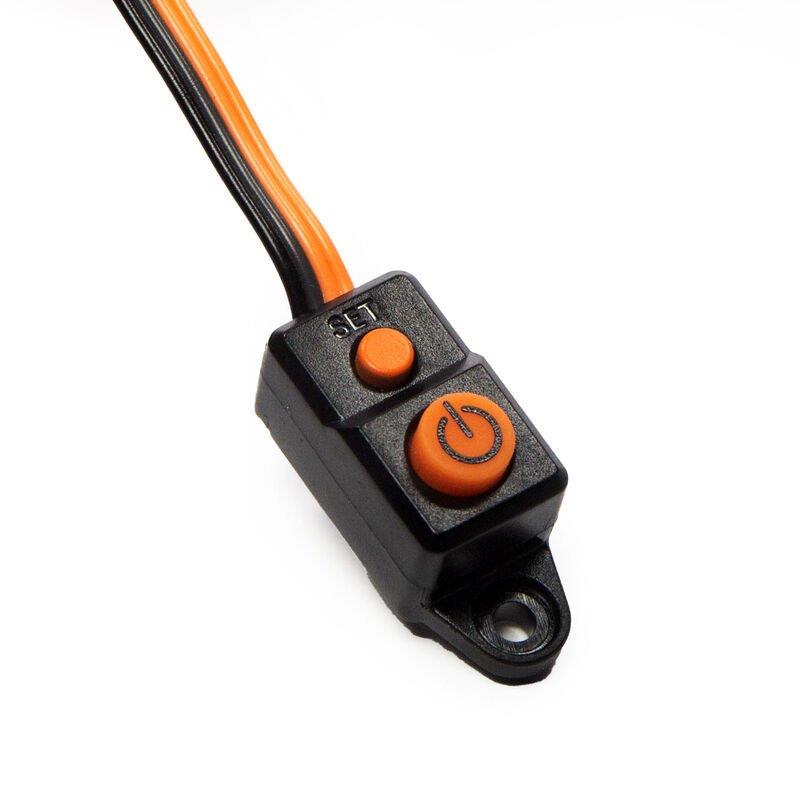

o Button programming
o Smart ESC Programming Box
o SmartLink USB Updating and Programmer application
Multi-point protection:
o Over-current protection
o Automatic LiPo low-voltage cutoff
o Thermal protection
o Failsafe protection
Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 3S Lipo setups
High current adjustable BEC (6v or 7.4v @ 4 Amps)
Compact for easy installation in most applications
Ready to install no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency

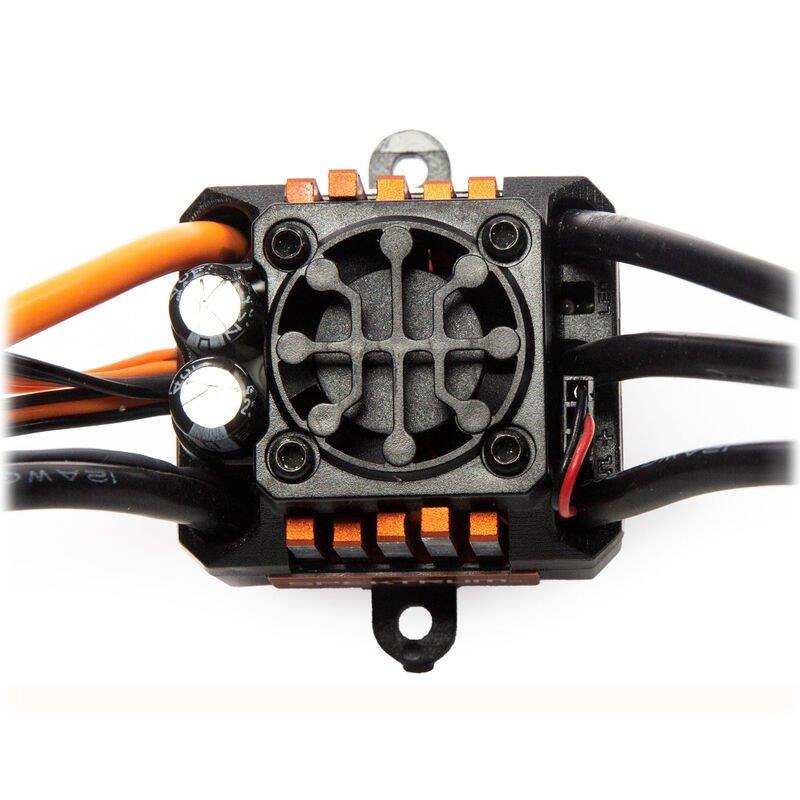

Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC connectors, backwards compatible with EC connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
Spektrum Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum Firma Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
Product Specifications:
Manufacturer # 605482716441
Forward Yes
Reverse Yes
Wire Gauge 12 AWG

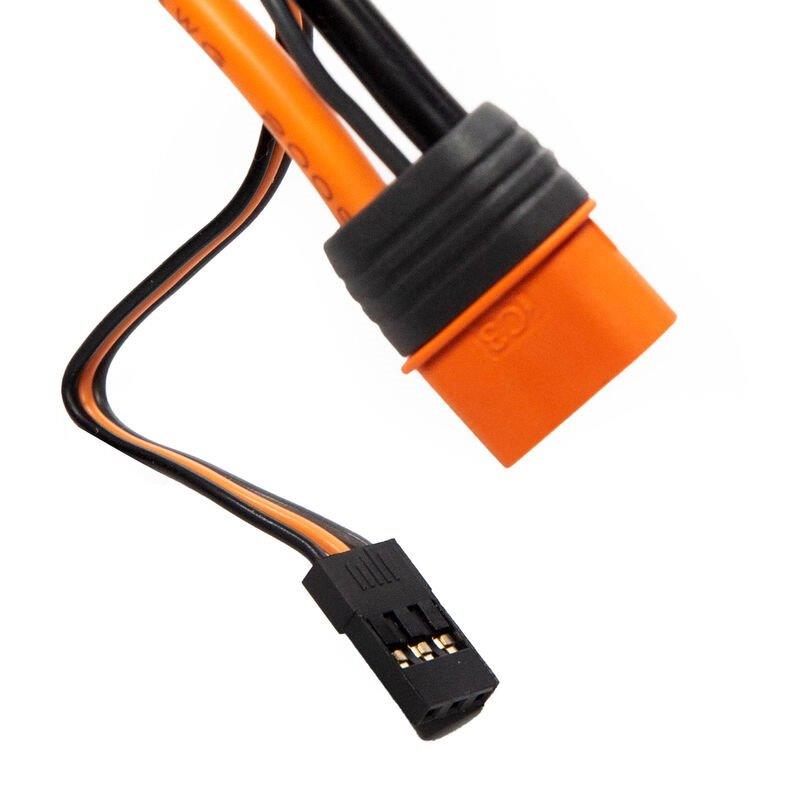

Battery Input Lead IC3
Product Width 2.1" (53 mm)
Technology Smart
Amperage 80A - 99A
BEC Type Switch Mode
Max Input Voltage 11.1V
Application Surface
Auto Cutoff Yes
BEC Continous Current 4
Low-Voltage Cutoff Programmable No
Output 85A

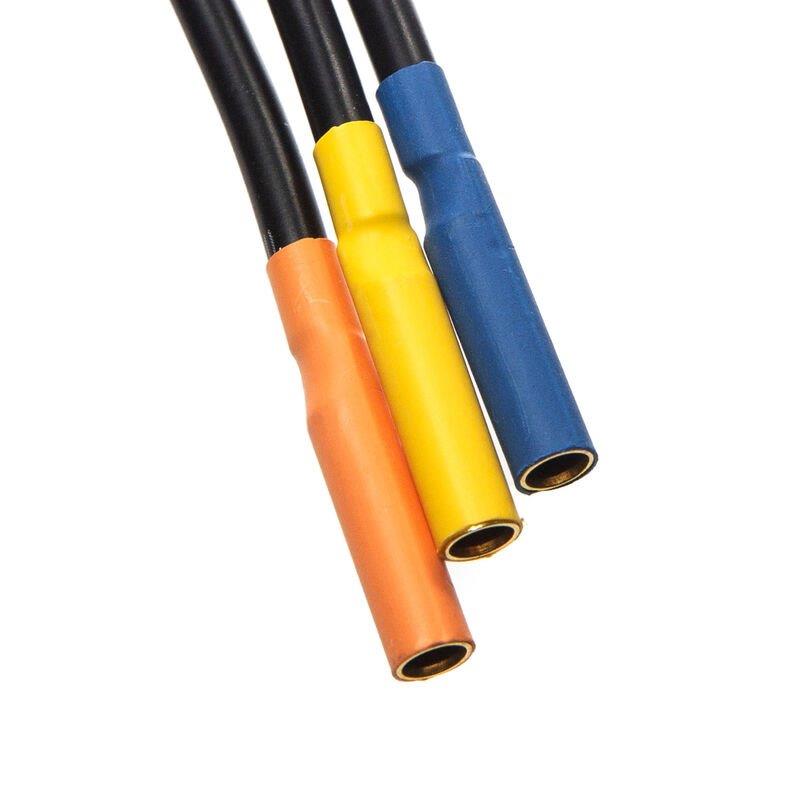

Output Connector 4mm Bullet
Overload Protection Yes
Product Weight 4.1oz (116g)
Water-Resistant Yes
Connector Type IC3
ESC Type Brushless
Product Length 1.7" (43 mm)
Maximum Burst Current 550A
Motor Type Brushless
Product Application Surface
Product Height 1.3" (33 mm)
Sensored No
Time Delay Brake Yes
Battery Type LiPo (3.7V per cell)
Brakes Yes
Programmable Yes
Programming Options Button, Programming Box, Smartlink App, On Screen Text Gen
BEC Yes
BEC Maximum Burst Current 8A
BEC Voltage 6V/7.4V
Input Voltage 2S - 3S LiPo, 5 - 9 cell NiMH
Motor Limit With 2S LiPo: KV = 5000 - With 3S LiPo: KV = 3000
Motor Output Lead 4mm
