Futaba BLS-CM600 EP 1/12 Servo 6.7kg 0.09s HV S.BUS2

Futaba BLS-CM600 - Brushless 1/12 EP UR/SR-Mode Servo
An S.BUS type brushless servo for 1/12 EP car and supports UR mode.

• Supports fastest response UR mode (also compatible with SR mode)
• In UR mode, the drive frequency can be set higher than in SR mode
• When using F-4G, stretcher and boost of S.BUS parameters can be set in detail
• Replaces BLS671SV
• S.BUS method
• Metal 1-4 gears
• Metal final gear
• Resin case

Specs:

• Speed: 0.09sec/60° (@ 7.4V) - 0.11sec/60° (@ 6.0V)
• Torque: 6.7kg/cm @7.4V) - 5.4kg/cm @6.0V

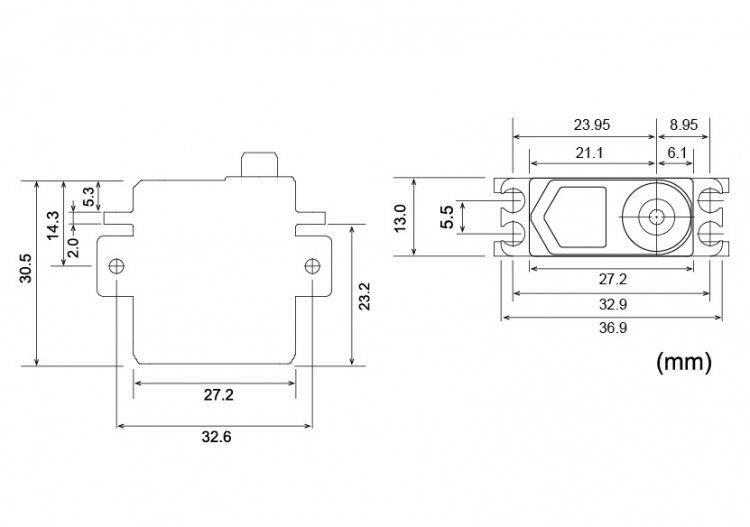

• Size: 27.2×13.0×30.5mm
• Weight: 28g
• Rated Voltage: 6-7.4V
• Operating Voltage: 4-8.4V

*UR mode is available in the latest version of T10PX.
*UR mode is a transmitter/receiver update for T10PX and R404SBS/SBS-E.

Längd: 27,2 mm
Bredd: 13 mm
Höjd: 30,5 mm
Vikt: 28 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,11 sek/60°
Hastighet vid 7,2/7,4V: 0,09 sek/60°
Styrka vid 6,0V: 5,4 kg/cm
Styrka vid 7,2/7,4V: 6,7 kg/cm
Egenskaper: Borstlös motor , Digitalt , Dubbla Kullager , HV , Metalldrev , S.Bus2
Levereras med: Servogummin, fästskruvar & servook
