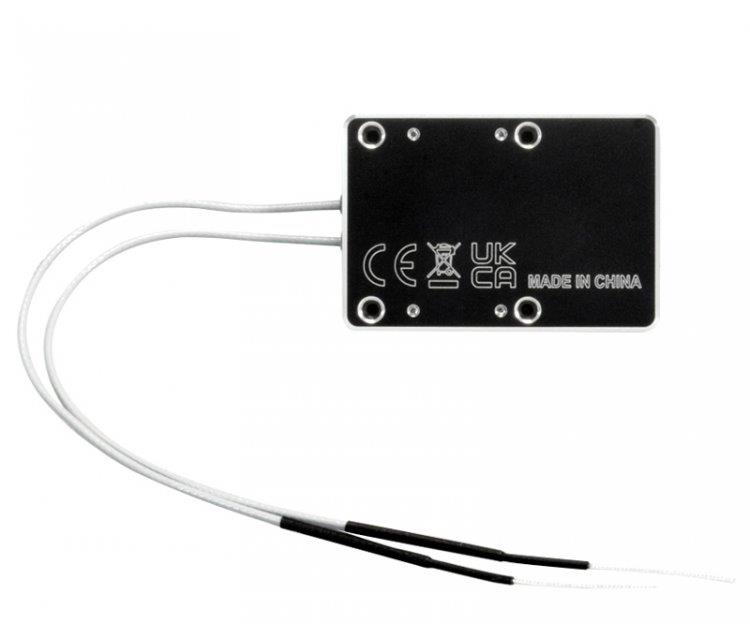

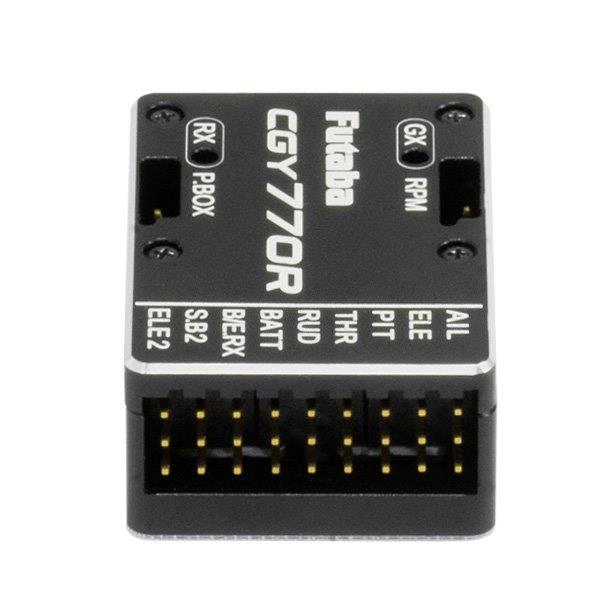

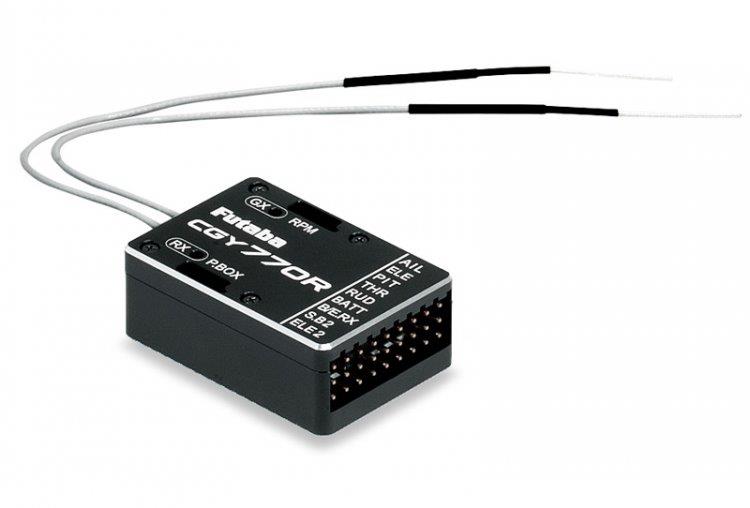

Futaba CGY770R Gyro FASSTest/T-FHSS Air Mottagare
3 967,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: FPCGY770R
Futaba CGY770R - Equipped with new system [UR mode]! Receiver, built-in governor, 3-axis gyro for helicopters
CGY770R is a 3-axis gyro for helicopters that is equipped with a new system [UR mode] and has a receiver and governor integrated with a wireless tuning function.
System that integrates receiver, 3-axis gyro function, and governor function.
The CGY770R replaces the CGY760R.
Features:
Gyro can also be operated independently
Gyro and governor both use the fastest control method
Small, low profile, lightweight
Can be set using GPB-1 (gyro program box) *When using GPB-1 with CGY770R, it is necessary to update to Ver.5.0 or later.
S.BUS2 system compatible
Receiver/gyro/governor integrated
Equipped with Dual Rx Link system
Equipped with sensor response adjustment function
Addition of wireless setting items
Gyro adjustment menu P, I, and D gains can be adjusted on one screen
*GPB-1 setting screen
Compatible with new system UR (Ultra Response) mode
In combination with a servo compatible with helicopter UR mode, faster response can be obtained.
Also, servo update of HPS-HC701 and HPS-HT700 is required. Compatible with Ver.2.0 or later.
*To use UR mode, please use HPS-HC701 or HPS-HT700. *As of 2024/3/15
Setting items are divided into basic and expert menus
Basic settings can be made in the basic menu
Detailed settings can be made in the expert menu
What is UR mode?
UR mode is a system installed in the high-end car transmitter [T10PX].
This is Futaba's fastest system, recognized by many top drivers.
You can experience the proven fastest system, UR mode, in a helicopter.
*UR servos for cars cannot be used.
Specs:
3-axis gyro for helicopters with integrated receiver and governor
Control method: Digital advance control
Angular velocity detection method: Vibration gyro sensor
Angle range: ±1,000°/sec
Rotation speed detection method: Engine rotation direct detection by magnetic sensor
Control resolution: 0.1 Hz (± 6 rpm: engine rotation speed)
Rotation speed stability accuracy: within ± 1%
Control rotation speed range: 700 to 4,000 rpm (rotor rotation speed)
Antenna: Diversity method
Rated power supply voltage range: DC 3.7 V to 7.4 V *(Usable voltage range: 3.5 V to 8.4 V)
Current consumption: 85 mA (when receiving, no servo, no RPM sensor)
Operating temperature range: -10 to +45℃
Operating humidity range: 10 to 90%RH (no condensation)
Dimensions: 39.2x27.0x15.0mm
Weight: 22.3g
Reception system:
FASSTest-2.4 GHz (18 CH/12 CH mode)
T-FHSS-Air-2.4 GHz method, S.BUS2 input/output + output for conventional system (CH1-6)
Frekvens: 2,4GHz
Signalsystem: FASSTest , T-FHSS Air
Längd: 39,2 mm
Bredd: 27 mm
Höjd: 15 mm
Vikt: 22,3 g
Drivspänning: 3,5-8,4 V
Specialfunktioner: Diversity Antenna
