Futaba DLPH-3 Dubbla RX Link Power Hub
1 771,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: FP05102759-3

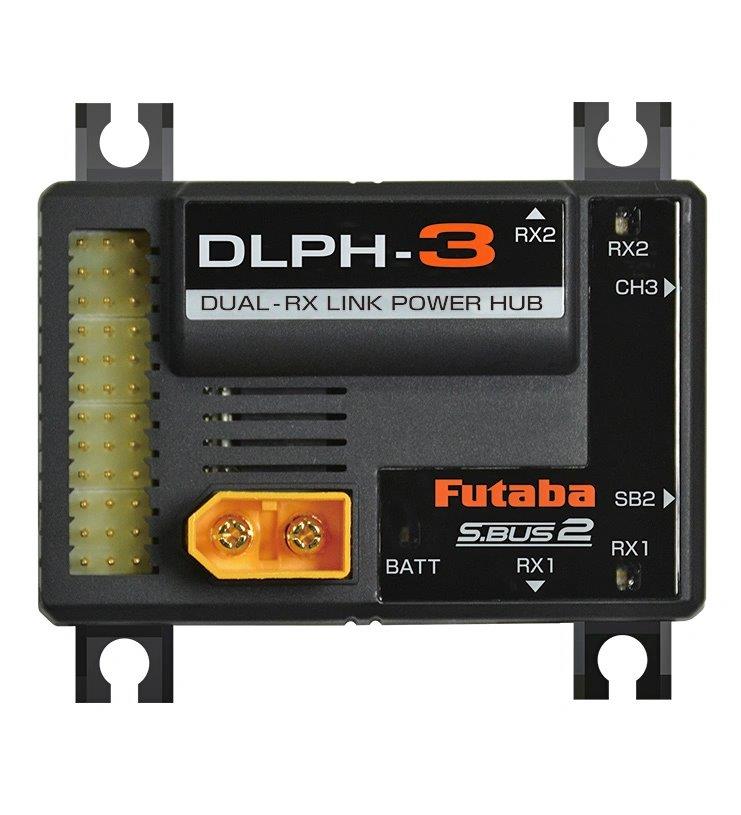

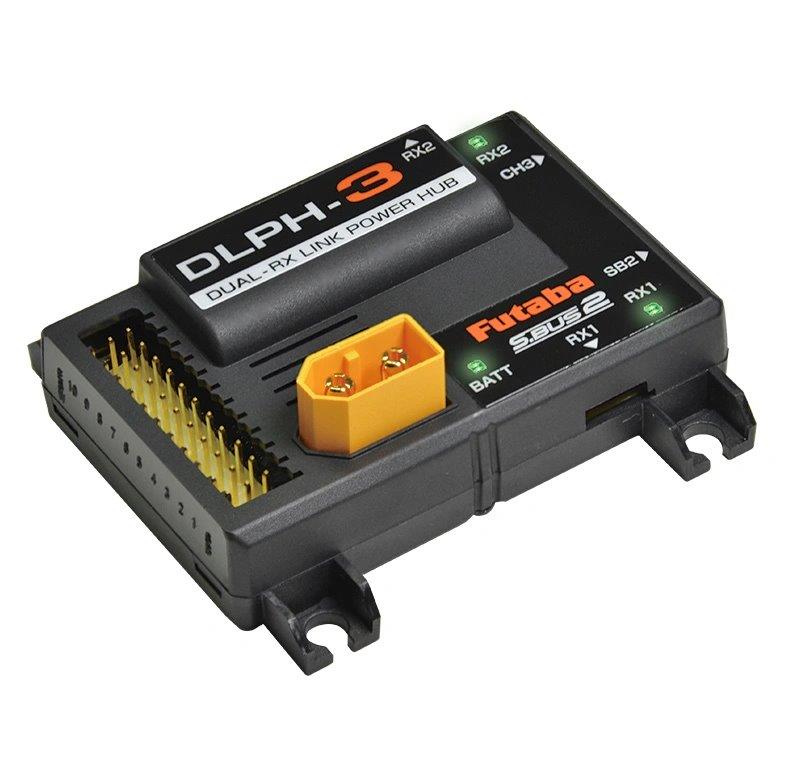

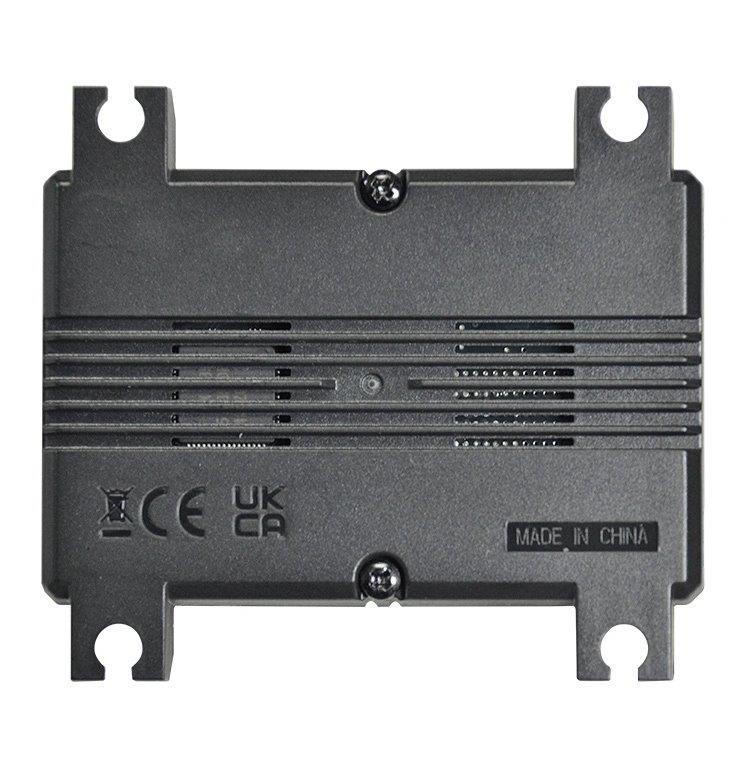

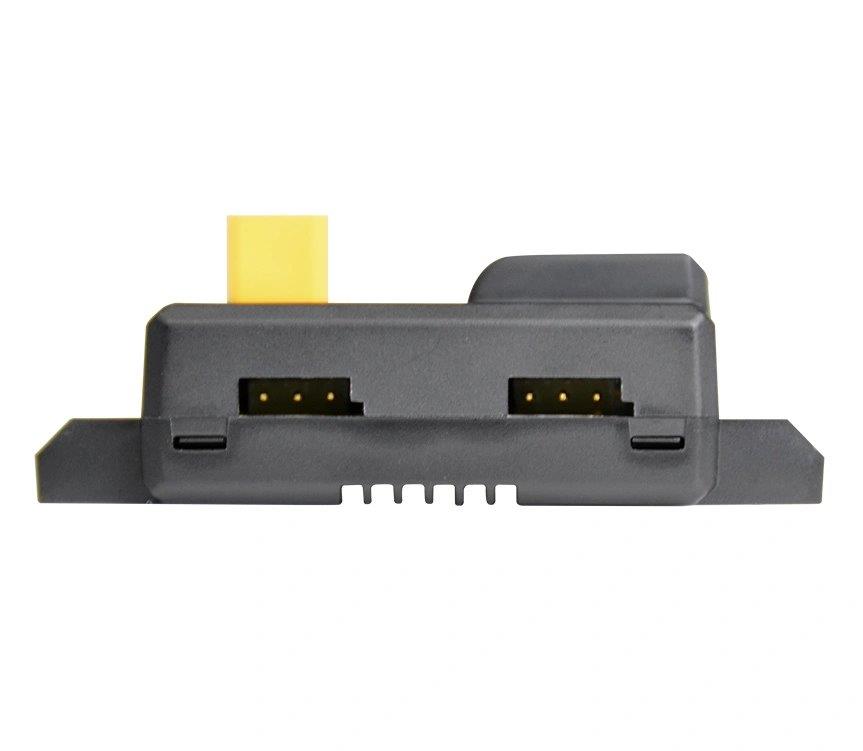

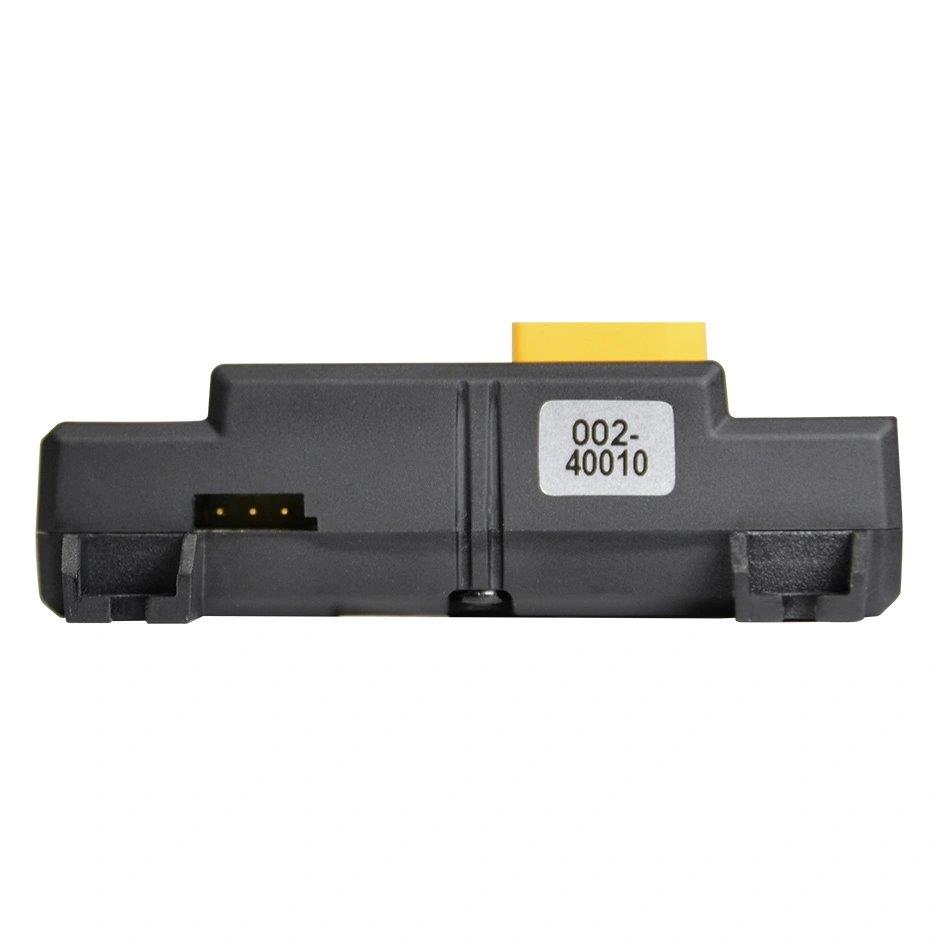

Futaba 05102759-3 - DLPH-3 Dual RX Link Power Hub
MAX60A! 10-Channel Dual RX Link Power Hub
Perfect for large aircraft with multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26-channel support! The DLPH-3's compact design makes it easy to install in 50-70cc aircraft. Even in larger aircraft, using two units allows for split power supply, providing additional safety redundancy.
Product Features:
Connects to two receivers and batteries.
Electronic switch (current controlled by FET circuit).
Telemetry function displays power supply voltage.
Compatible with three battery types and includes protection when connecting different types of batteries.
Includes protection when the battery is low.
DLPH-3 Specifications:
Application: Dual-Receiver Switching Device (Dual Rx Link System)
FET (Rating): Continuous 60A
Dimensions: 43.6 x 66.0 x 19.3 mm
Weight: 34.6 g
Operating Voltage: 6.4 to 13.0 V (XT60 Connector)
Included accessories:
Switch, Receiver connection cables (3), Flange Damper, Eyelets & Wood Screws
MAX60A! 10-Channel Dual RX Link Power Hub
Perfect for large aircraft with multiple servos! Supports single receiver mode, gyro mode, and FASSTest 26-channel support! The DLPH-3's compact design makes it easy to install in 50-70cc aircraft. Even in larger aircraft, using two units allows for split power supply, providing additional safety redundancy.
Product Features:
Connects to two receivers and batteries.
Electronic switch (current controlled by FET circuit).
Telemetry function displays power supply voltage.
Compatible with three battery types and includes protection when connecting different types of batteries.
Includes protection when the battery is low.
DLPH-3 Specifications:
Application: Dual-Receiver Switching Device (Dual Rx Link System)
FET (Rating): Continuous 60A
Dimensions: 43.6 x 66.0 x 19.3 mm
Weight: 34.6 g
Operating Voltage: 6.4 to 13.0 V (XT60 Connector)
Included accessories:
Switch, Receiver connection cables (3), Flange Damper, Eyelets & Wood Screws
