Futaba GYA573 3-Axis Gyro Flygplan

Futaba FP05102757-3 - GYA573 3-axis gyro for EP/GP airplanes

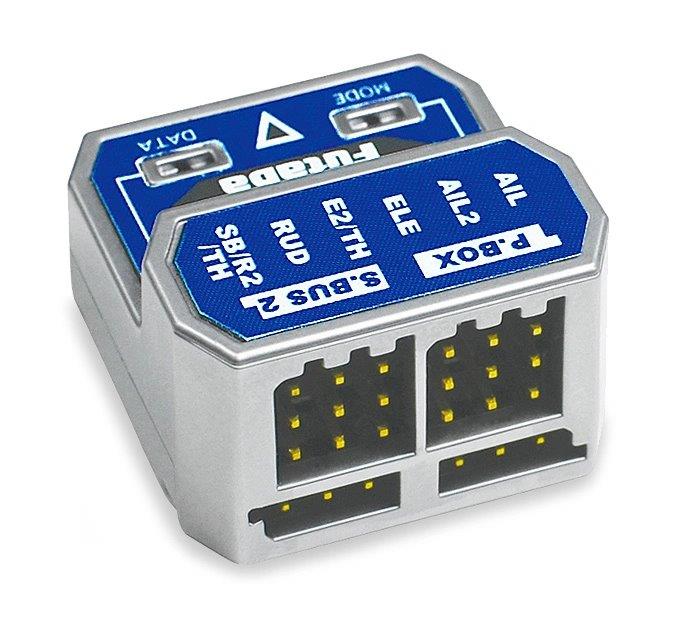

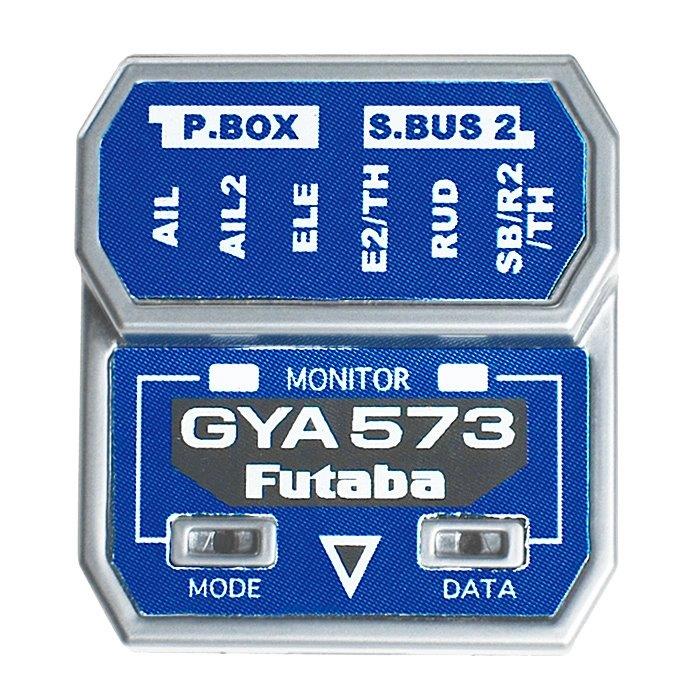

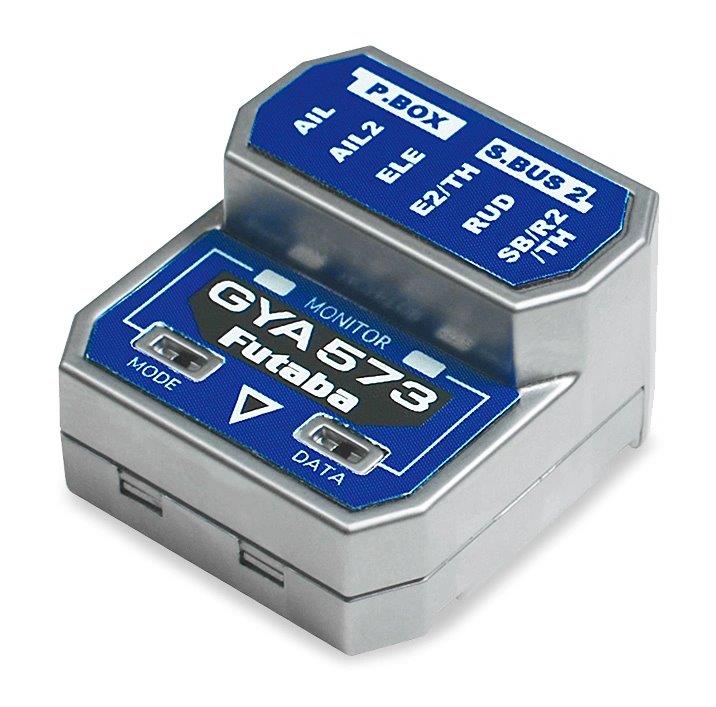

This is the new GYA573 airplane gyro. Compact and lightweight, the GYA573 is a 3-axis controlled gyro device equipped with a 6-axis sensor designed to control the ailerons (roll axis), elevators (pitch axis) and rudders (yaw axis). In addition, the GYA573 is equipped with a recovery mode to avoid danger. Features include simple set-up and S.BUS2 connectivity.

GYA573 is a replacement for GYA553.

Features:

• Remote gain function
• 4 flight modes (Auto recovery/Normal/AVCS/Gyro OFF)
• Supports 4 ailerons, 2 eleveters
• Supports FASSTest26CH
• Supports 4D flight
• Supports roll flat
• Air brake mixing
• Camber mixing and 2 rudders types
• Supports a various wing types, including Flying Wing
• Supports Gasoline and EP planes

These functions must be set from a transmitter that supports the GYA573 settings or from the GPB-1:

• Supports FASSTest26CH
• Supports 4D flight
• Supports roll flat
• Air brake mixing
• Camber mixing

*Gyro control is not possible if the aircraft stalls
*Do not set the fail-safe function of the transmitter to the channel used by the gyro
*GYA573 can only be used in combination with Futaba products
*GYA573 requires a transmitter system of 10 CH or more
*GYA573 requires an S.BUS2 receiver

GYA573 Updates
The GYA573 can be updated from a PC by connecting the separately sold CIU-3/2. Please check the our tab for downloads on the specific minicars.se product page for the latest firmware and update method.

Specs:
(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC 3.8 V to 8.4 V
• Current drain: 27 mA (excluding a servo)
• Operating temperature range: -10ºC to +45ºC
• Dimensions: 28 x 26 x 16 mm
• Weight: 8.5 g

Set contents:

• GYA573
• 2x Double-sided tape
• Receiver connection cable
