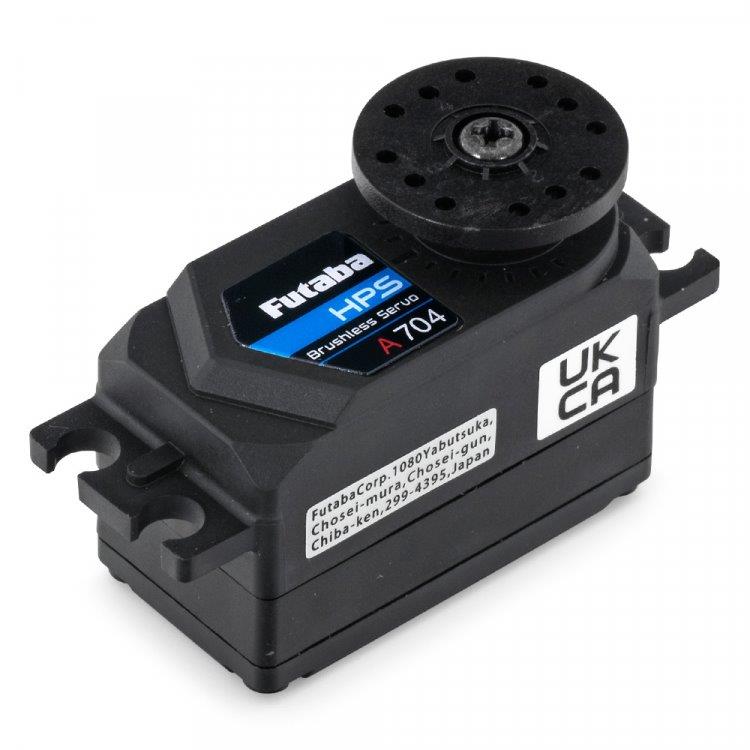

Futaba HPS-A704 Flygservo Lågprofil F3A HV 14kg/0.06s

Futaba HPS-A704 – S.BUS2 High-Voltage Low Profile Airplane Servo
High Performance Low-Profile Servo with Brushless Motor

FEATURES:

• Designed with F3A in mind
• Programmable/High performance Brushless Servo
• Custom New high speed Brushless Motor
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
• Final gear material is metal
• Upper/middle/bottom: Plastic case

SPEED:

• 0.07 sec/60°at 6.6V
• 0.06 sec/60° at 7.4V

TORQUE:

• 12.5 kgf/cm at 6.6V
• 14.0 kgf/cm at 7.4V

SIZE:

• 40.5 x 21 x 26.9 mm

WEIGHT:

• 48 g

RATED VOLTAGE:

• DC 6.0V-7.4V

OPERATING VOLTAGE:

• DC 4.8-8.4V

Längd: 40,5 mm
Bredd: 21 mm
Höjd: 26,9 mm
Vikt: 48 g
Max Drivspänning: 7,4 V
Hastighet vid 7,2/7,4V: 0,06 sek/60°
Styrka vid 7,2/7,4V: 14 kg/cm
Egenskaper: Borstlös motor , Digitalt , HV , Metalldrev , S.Bus , S.Bus2
Levereras med: Servogummin, fästskruvar & servook
