Futaba S-A601 Flygservo 41kg 0.11s HV S.BUS

Futaba S-A601 - 41kg 0.11s HV Aircraft Servo Coreless

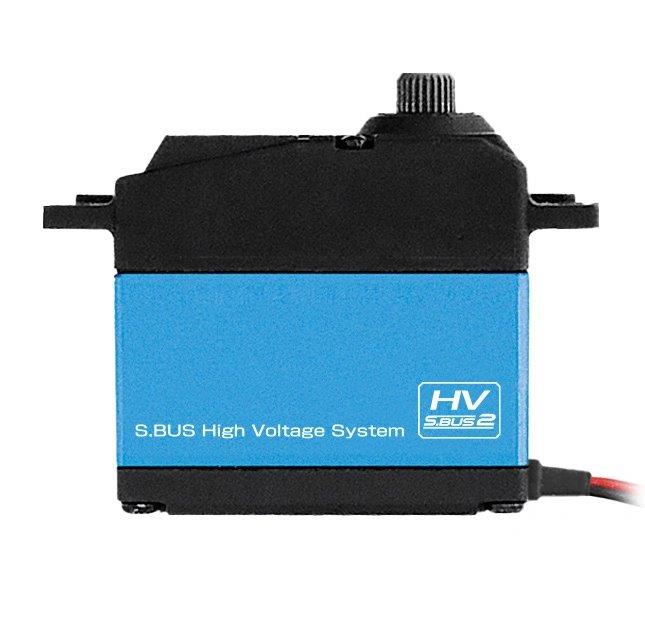

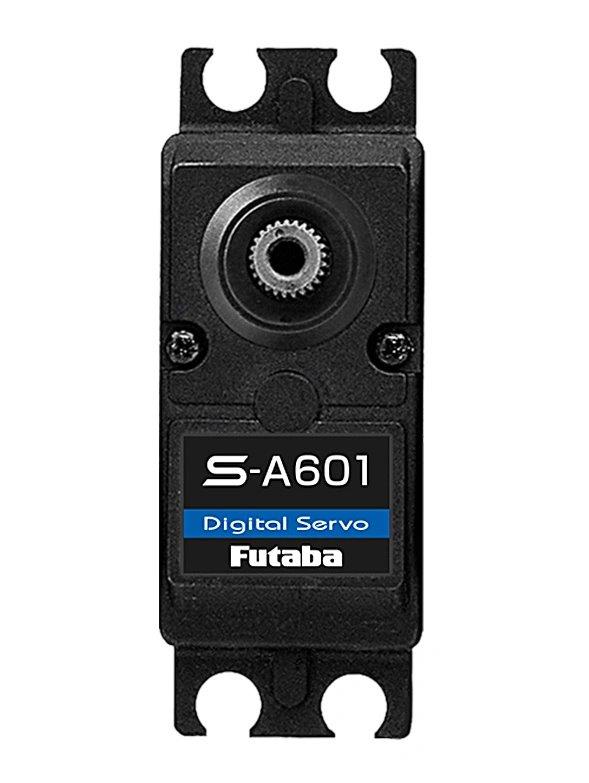

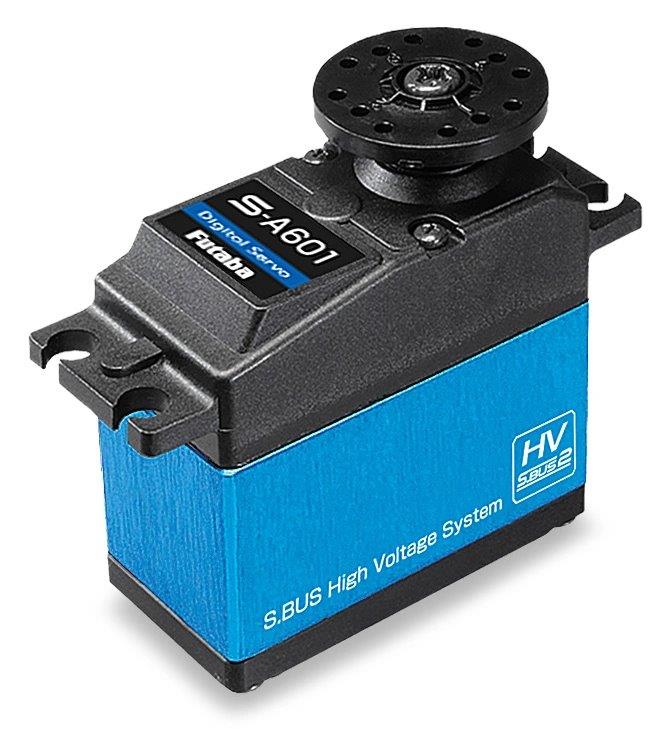

This is a powerful servo with a coreless motor and aluminium middle case made for large scale aircrafts.

• Replaces S9177SV (end of life support for the IC in S9177)

Specs:

• Coreless motor
• S.Bus system
• Metal gears
• High Voltage
• Aluminium middle case

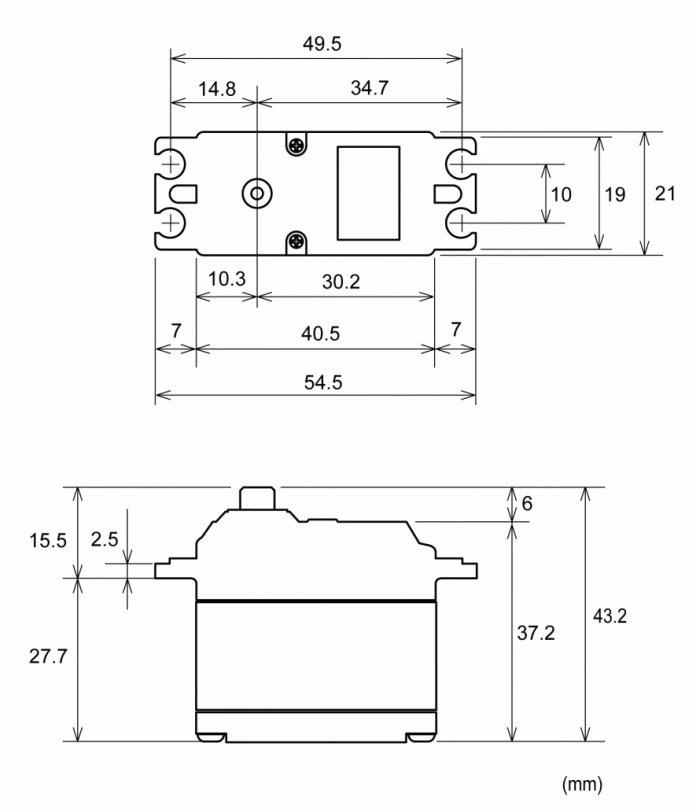

• Size: 40.5x21x37.2mm
• Weight: 74g
• Rated voltage: 6-7.4V
• Operating Voltage: 4.8-8.4V
• Speed @ 6.6V: 0.12s/60°
• Torque @ 6.6V: 38.8kg/cm
• Speed @ 7.4V: 0.11s/60°
• Torque @ 7.4V: 41kg/cm

Ursprungsland: TW
Servolängd: 40,5 mm
Servobredd: 21 mm
Servohöjd: 37,2 mm
Servovikt: 74 g
Servotyp: Standard
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,12 sek/60°
Hastighet vid 7,2/7,4V: 0,11 sek/60°
Styrka vid 6,0V: 38,8 kg/cm
Styrka vid 7,2/7,4V: 41 kg/cm
Egenskaper (Servo): Coreless Motor , Dubbla Kullager , HV , Metalldrev , S.Bus2
Levereras med: Servogummin, fästskruvar & servook
