Futaba S-HC501 Heli Servo 13.8kg 0.09s HV/S.BUS2

Futaba S-HC501 - Heli Swash Servo 13.8kg/cm 0.09s HV Coreless

A swash drive servo that uses a coreless motor (1.520/760uS compatible)

• Replaces S-HC500 (end of life support for the IC in S-HC500)

Specs:

• Coreless motor
• High Voltage
• S.BUS
• 760uS compatible (set to 1,520uS at shipping)
• Metal 2-3 stage gear
• Aluminum final stage gear
• Resin case

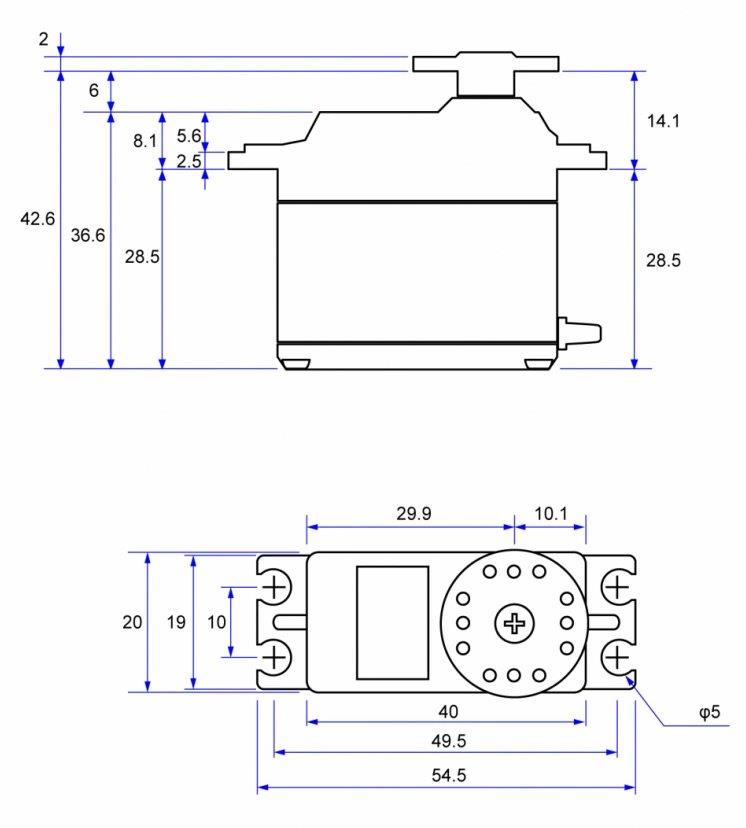

• Size: 40x20x36.6mm
• Weight: 54g
• Speed @ 6.6V: 0.10s/60°
• Torque @ 6.6V: 12.5kg/cm
• Speed @ 7.4V: 0.09s/60°
• Torque @ 7.4V: 13.8kg/cm
• Voltage:

*For combination with CGY770R;

• When using S-HC501 with DG: 1520us, please use the sensor mode of CGY770R's AIL Expert and ELE Expert (FLT Expert in 3D mode) to "Std" or "S1"

Ursprungsland: TW
Servolängd: 40 mm
Servobredd: 20 mm
Servohöjd: 36,6 mm
Servovikt: 54 g
Servotyp: Standard
Max Drivspänning: 7,4 V
Hastighet vid 7,2/7,4V: 0,09 sek/60°
Styrka vid 7,2/7,4V: 13,8 kg/cm
Egenskaper: Coreless Motor , Digitalt , Dubbla Kullager , HV , Metalldrev , S.Bus
Levereras med: Servogummin, fästskruvar & servook
