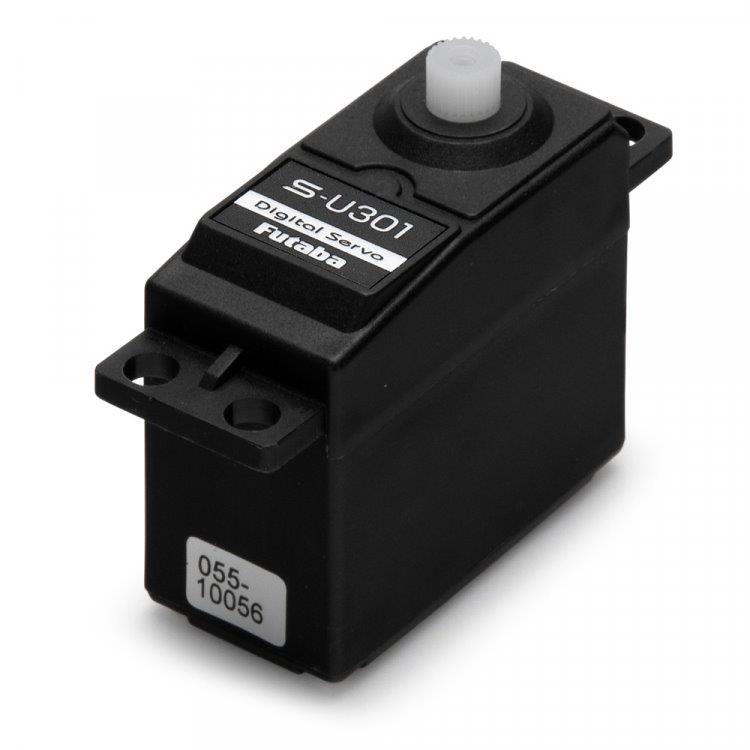

Futaba S-U301 Servo Standard 3.9kg/0.16s HV S.BUS2
358,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: FPS-U301.
Futaba S-U301 Universal Standard HV Servo
This is a new Futaba standard high-voltage servo with S.BUS(2) function.
Specs:
Plastic Gears
Digital / S.BUS2
Rated Voltage: 6-7.4V
Operating Voltage: 4-8.4V
Torque @ 6.6V: 3.5kg/cm
Torque @ 7.4V: 3.9kg/cm
Speed @ 6.6V: 0.18s/60°
Speed @ 7.4V: 0.16s/60°
Size: 40.5 x 20 x 36.1 mm
Weight: 36g
The S-U301 will replace these Futaba servos in the near future:
S3151
S3073HV
Längd: 40,5 mm
Bredd: 20 mm
Höjd: 36,1 mm
Vikt: 36 g
Max Drivspänning: 7,4 V
Hastighet vid 7,2/7,4V: 0,16 sek/60°
Styrka vid 7,2/7,4V: 3,9 kg/cm
Egenskaper: Digitalt , HV , S.Bus2
This is a new Futaba standard high-voltage servo with S.BUS(2) function.
Specs:
Plastic Gears
Digital / S.BUS2
Rated Voltage: 6-7.4V
Operating Voltage: 4-8.4V
Torque @ 6.6V: 3.5kg/cm
Torque @ 7.4V: 3.9kg/cm
Speed @ 6.6V: 0.18s/60°
Speed @ 7.4V: 0.16s/60°
Size: 40.5 x 20 x 36.1 mm
Weight: 36g
The S-U301 will replace these Futaba servos in the near future:
S3151
S3073HV
Längd: 40,5 mm
Bredd: 20 mm
Höjd: 36,1 mm
Vikt: 36 g
Max Drivspänning: 7,4 V
Hastighet vid 7,2/7,4V: 0,16 sek/60°
Styrka vid 7,2/7,4V: 3,9 kg/cm
Egenskaper: Digitalt , HV , S.Bus2
