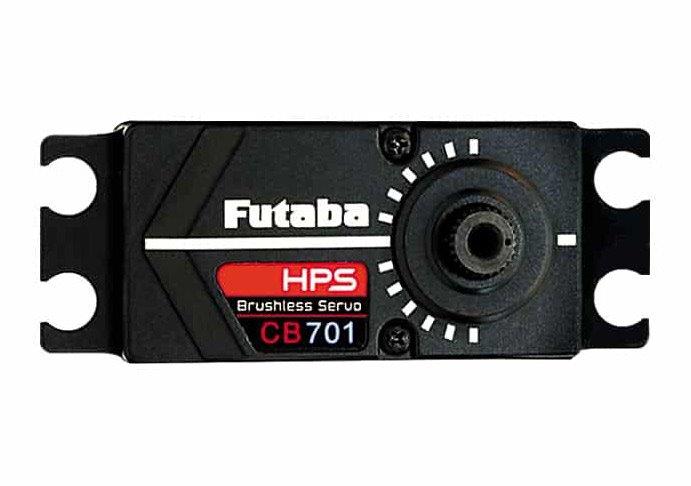

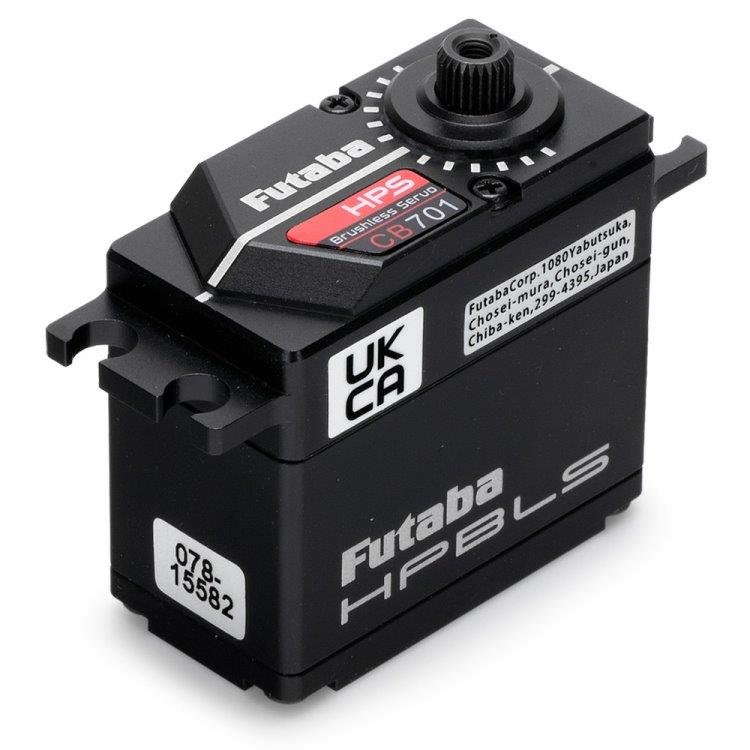

Futaba Servo HPS-CB701 Bil/Båt 49kg 0.07s S.BUS2 HV

HPS-CB701– S.Bus2 High-Voltage Surface Servo
High Performance Servo with Brushless Motor

FEATURES:

• Suitable for RC cars 1/10 scale on/off road and 1/8 scale on/off road
• Programmable/HV Brushless Servo
• Custom New high power Brushless Motor
• Supports SR mode with T4PM/P, T7PX/R & T10PX
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
• Upper/middle/bottom: Aluminum Case

SPEED:

• 0.09 sec/60° @ 6.0V
• 0.075 sec/60° @ 7.4V

TORQUE:

• 42 kg/cm @ 6.0V
• 49 kg/cm @ 7.4V

SIZE:

• 40.5 x 21 x 37.8 mm

WEIGHT:

• 75 g

RATED VOLTAGE:

• DC 6-7.4V

OPERATING VOLTAGE:

• DC 4.8-8.4V

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE

Längd: 40,5 mm
Bredd: 21 mm
Höjd: 37,8 mm
Vikt: 75 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,09 sek/60°
Hastighet vid 7,2/7,4V: 0,075 sek/60°
Styrka vid 6,0V: 42 kg/cm
Styrka vid 7,2/7,4V: 49 kg/cm
Egenskaper: Borstlös motor , Digitalt , Dubbla Kullager , HV , Metalldrev , S.Bus , S.Bus2 , Vattenskyddat
Levereras med: Servogummin, fästskruvar & servook
