Beskrivning
Art.nr: FPHPSCT501

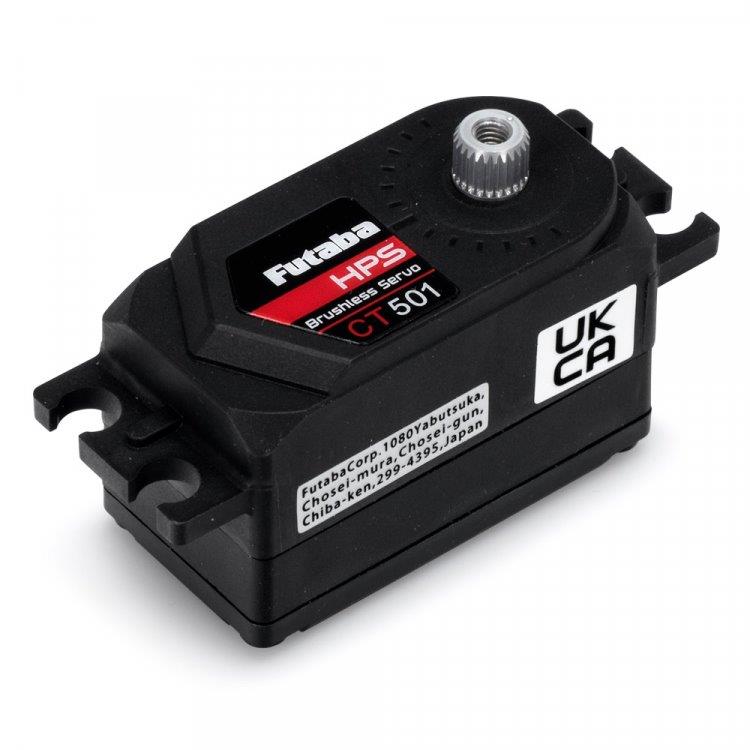

Futaba HPS-CT501 - Low-Profile Servo for 1/10 Scale Cars - UR Mode
The new HPS-CT501 is developed specifically for RC cars that needs a low-profile and high performance servo but don't need the full aluminium case that the CT701/702 has. Futaba's HPS servos includes a new generation brushless HPS motors that has been developed to run more efficient and cooler.
UR mode setting: make sure that your SR/UR mode transmitter and receiver are updated with the latest software!
The servo is compatible with the Futaba SR mode ("Super Response") of the T7XC, T7PX and T4PM systems.
HPS-CT501 Features:
Suitable for RC cars drift and 1/10 scale on/off road & boats
Resin case
Gears: 1st, 2nd ,3rd and final metal gears
HPS brushless motor technology
UR compatible (Ultra Response)
SR compatible (Super Response)
High Voltage
Ball Bearings
Potentiometer with low wear
High Resolution
S.BUS2 compatible
Cable color : Black-grey
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
Programmable/HV Brushless Servo - compatible with S.Bus and S.Bus2 systems
Specifications:
Rated Voltage: 6.0 - 7.4V
Operating Voltage: 4.8 - 8.4V
Speed: 0.07s/60° @ 6V
Speed: 0.06s/60° @ 7.4V
Power: 17.1kg/cm @ 6V
Power: 21kg/cm @ 7.4V
Size: 40.5 x 21 x 26.9 mm
Weight: 44 g
Längd: 40,5 mm
Bredd: 21 mm
Höjd: 26,9 mm
Vikt: 44 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,07 sek/60°
Hastighet vid 7,2/7,4V: 0,06 sek/60°
Styrka vid 6,0V: 17,1 kg/cm
Styrka vid 7,2/7,4V: 21,0 kg/cm
Egenskaper: 3 Kullager , Borstlös motor , Digitalt , HV , Metalldrev , S.Bus2 , Stänk/Dammskyddad , Super Response , Ultra Response

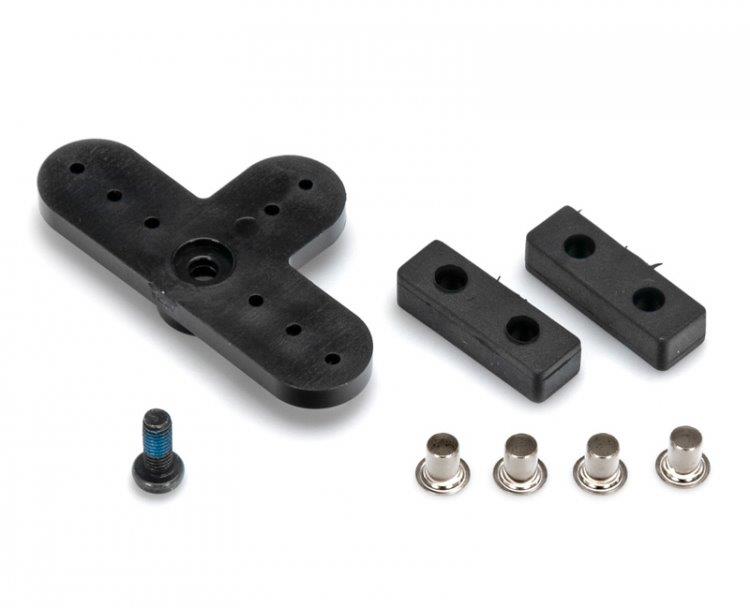

Levereras med: Servogummin, fästskruvar & servook
The new HPS-CT501 is developed specifically for RC cars that needs a low-profile and high performance servo but don't need the full aluminium case that the CT701/702 has. Futaba's HPS servos includes a new generation brushless HPS motors that has been developed to run more efficient and cooler.
UR mode setting: make sure that your SR/UR mode transmitter and receiver are updated with the latest software!
The servo is compatible with the Futaba SR mode ("Super Response") of the T7XC, T7PX and T4PM systems.
HPS-CT501 Features:
Suitable for RC cars drift and 1/10 scale on/off road & boats
Resin case
Gears: 1st, 2nd ,3rd and final metal gears
HPS brushless motor technology
UR compatible (Ultra Response)
SR compatible (Super Response)
High Voltage
Ball Bearings
Potentiometer with low wear
High Resolution
S.BUS2 compatible
Cable color : Black-grey
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
Programmable/HV Brushless Servo - compatible with S.Bus and S.Bus2 systems
Specifications:
Rated Voltage: 6.0 - 7.4V
Operating Voltage: 4.8 - 8.4V
Speed: 0.07s/60° @ 6V
Speed: 0.06s/60° @ 7.4V
Power: 17.1kg/cm @ 6V
Power: 21kg/cm @ 7.4V
Size: 40.5 x 21 x 26.9 mm
Weight: 44 g
Längd: 40,5 mm
Bredd: 21 mm
Höjd: 26,9 mm
Vikt: 44 g
Max Drivspänning: 8,4 V
Hastighet vid 6,0V: 0,07 sek/60°
Hastighet vid 7,2/7,4V: 0,06 sek/60°
Styrka vid 6,0V: 17,1 kg/cm
Styrka vid 7,2/7,4V: 21,0 kg/cm
Egenskaper: 3 Kullager , Borstlös motor , Digitalt , HV , Metalldrev , S.Bus2 , Stänk/Dammskyddad , Super Response , Ultra Response
Levereras med: Servogummin, fästskruvar & servook
