Futaba T32MZ-WC Radio FASSTest26, 1S LiPo, R7208SB
30 565 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: FP05003220-3

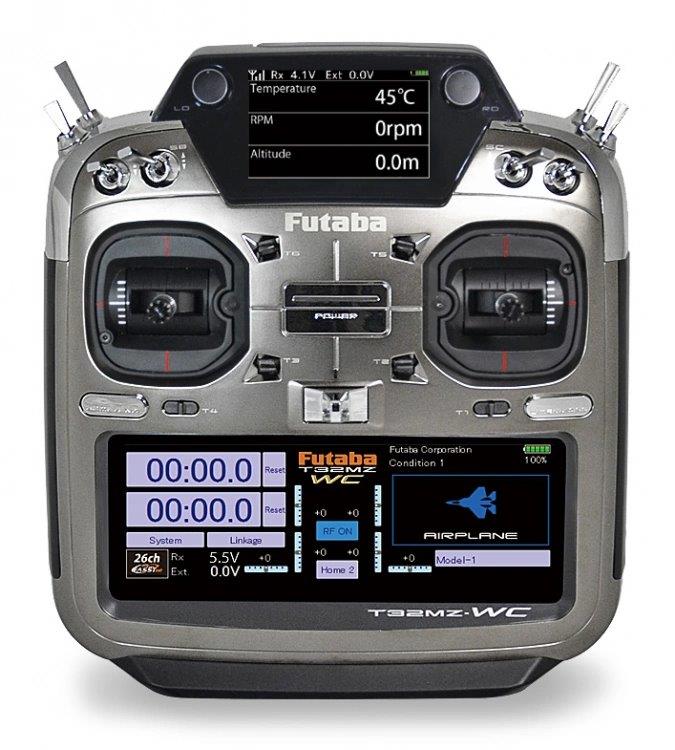

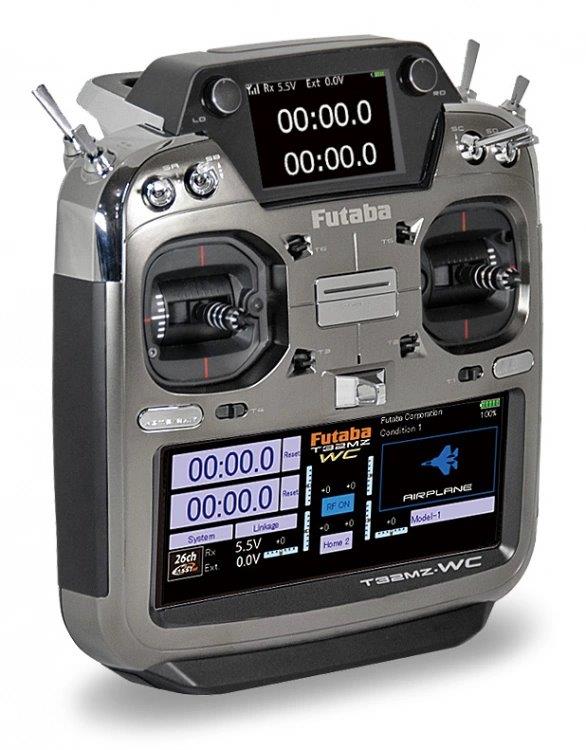

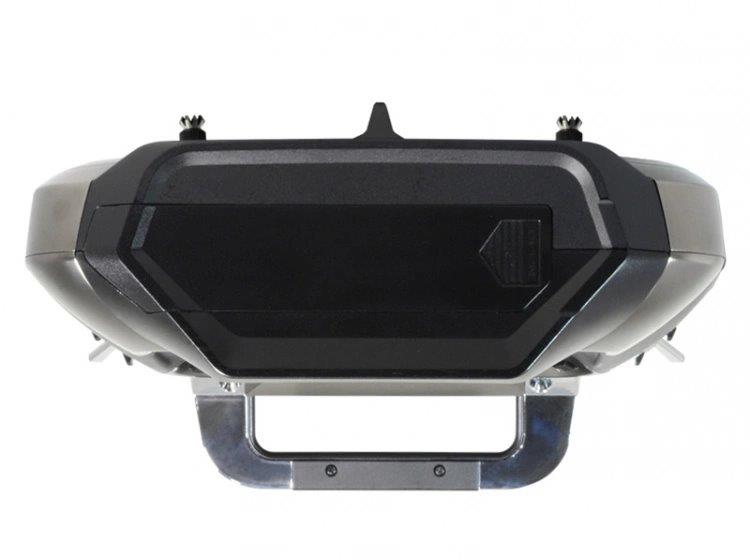

Futaba T32MZ-WC - World Champion Edition Radio with R7208SB receiver
FASSTEST SYSTEM:
The Futaba 32MZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 26 channels (linear 24 channels + switch 2 channels) 2.4 GHz dedicated system.
CHANNEL EXPANSION (MULTIPROP FUNCTION):
The multiprop function can be used by using the separately sold multiprop decoder MPDX-1. The multiprop function is a function that divides one channel into eight channels and extends the number of channels.
Up to 2 x MPDX-1 can be used, and up to 32 channels can be expanded as follows:
Linear channel 14 channels (2 channels are used by multiprop function)
ON/OFF channel 2 channels
Multiprop channel 16 channels
Multiprop channels have the following differences from normal linear channels:
The resolution of the multiprop channel is lower than that of the linear channel.
Operating multiple multiprop channels simultaneously may reduce the operation response of the multiprop channel.
Multiprop channels can not use the mixing function.
S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
WINDOWS EMBEDDED COMPACT 7:
T32MZ WC utilizes the world famous Microsoft Windows Embedded Compact 7, which offers outstanding dependability and valuable resources.
COLOR LCD MAIN DISPLAY:
T32MZ WC has a HVGA (640 x 240 pixels) full color backlit LCD touch screen. The screen is manufactured of a transflective construction which enables both indoor and outdoor visibility.
COLOR LCD SUB DISPLAY:
T32MZ WC has a color LCD sub-display. It will be possible to know telemetry information separately from the main display. The sub display uses a reflective LCD which provides good visibility even outdoors.
MUSIC PLAY:
The Futaba 32MZ WC transmitter can playback WMA (Windows Media Audio) files on a microSD Card. You can enjoy music by the internal speaker or stereo headphones from the earphone jack. A switch can be assigned to start/stop your music.
VOICE RECORDING:
You can record your own voice using the internal microphone and then play back commands assigned to certain switches. Recording time is 3 seconds maximum and 24 voice files can be stored.
SECURE DATA (SD CARD):
Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T32MZ WC.
HIGH CAPACITY LITHIUM POLYMER BATTERY (6600 MAH):
The high capacity Lithium Polymer battery gives you extended flight time.
EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
FUNCTIONS:
The internal dual processors operate the many 32MZ functions and optimize the response time. Most of the mixing functions are operated by curves which give you very precise settings.
STICKS:
Dual ball bearings support each axis. And the magnetic detection type noncontact potentiometers was newly equipped. This allows for finer and more precise operation. Also, the throttle stick is an external screw adjustment, you can choose ratchet or spring self neutral.
REPLACEABLE SWITCHES:
You can replace 4 of the toggle switches on the right and left shoulder, with optional switches (two position, three position, and momentary etc.).
VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
Including:
T32MZ-WC Transmitter
R7208SB Receiver
LT1F6600B Lithium Polymer Battery and AC Adapter
Switch Harness
Tool Box (includes special jig for adjustment)
Neck Strap
Manual (Short version. Find full version here)

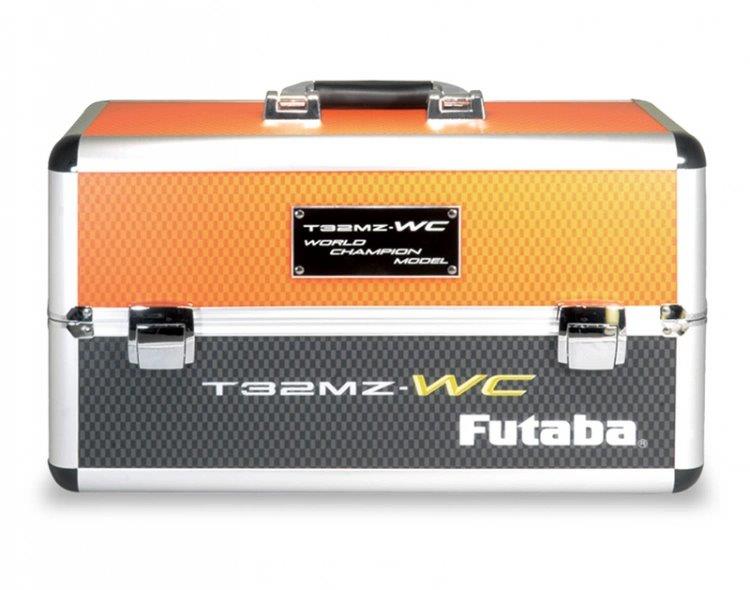

NEW World champion double transmitter Case
TX Specs:
Operating system: 2-Stick, 26-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
Power Supply: 3.8 V L1F6600B Lithium-polymer battery
Weight: 1126 g

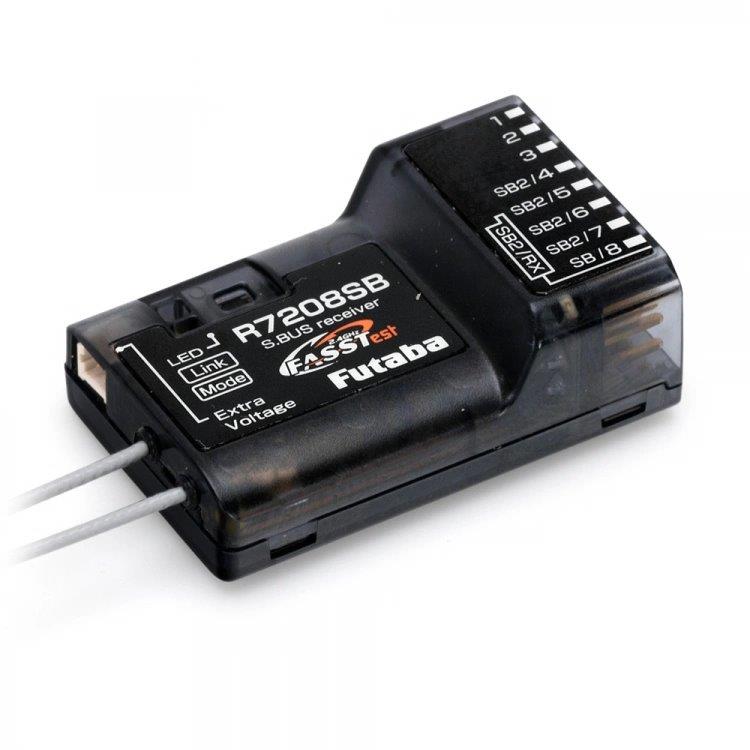

R7208SB Specs:
FASSTest-2.4 GHz system(18 ch/12 ch mode)
S.BUS2 and S.BUS port and 8 channels for conventional system receiver
Dual antenna diversity
Size: 24.9x38.8x14.3mm
Weight: 9.9g
Power requirement: 3.7-7.4V (Voltage range: 3.5-8.4V)
Battery F/S Voltage: It sets up with a transmitter
Extra Voltage port: 0 ～ 70V DC
Features:
Sub-display
Lightweight lithium polymer battery
Micro USB charging
Transmitter equipped with GPS
Non-contact potentiometer
Highly rigid resin stick
Stick mode switching function
New receiver with high gain antenna
Adopts Windows®CE
Built-in GPS
Monitor LED
Switch lever replaceable type
Left and right slide lever (S/ST)
Digital trim
Touch panel
Edit button
SD card slot
Equipped with LT1F6600B lithium polymer battery for transmitter
Tool box
User name registration/character input
Music playback
Trainer
DLPH-2 settings new features
Receiver settings new function
S.BUS servo setting
Servo ID list display new function
Sound
Sub trim
Balance new feature
Reverse
Fail safe
End point (ATV)
Throttle cut
Idol Down
Swash settings (for helicopter only)
Timer
Dial monitor
Data reset
Servo monitor
Condition selection
AFR(D/R)
Program mixing
Sequencer new features
Fuel mixture (for airplanes and helicopters only)
Aileron differential
Flap settings
Aileron → Camber FLP
Aileron → Brake FLP
Aileron → Rudder
Air brake → ELE
Rudder → Aileron
Camber mixing
ELE → Camber FLP
Camber FLP→ELE
Butterfly
Trim mix
Air brake
Gyro sensitivity operation
V-tail
Elbeta
Winglet
Ladder → elevator
Snap roll (for airplanes only)
Multi-engine (for airplanes only)
Pitch curve
Throttle curve
Acceleration (helicopter function)
Throttle hold (helicopter function)
Swash mixing (helicopter function)
Throttle mixing (function for helicopters)
Pitch → Needle (function for helicopter)
Pitch → Rudder (function for helicopter)
Telemetry log function
Multi-prop function (supports 32ch using optional MPDX-1)
Compatible Receivers*:
S-FHSS PROTOCOL:
R2008GS
R2008SB
R2106SB
R2001SB
R2000SBM
T-FHSS TELEMETRY PROTOCOL:
R3001SB
R3004SB
R3006SB
R3008SB
T-FHSS MONO (NON-TELEMETRY):
R3206SBM
R3106GF
FASST7 & FASST MULTI:
R6004FF
R6008HS
R6014HS
R6016HF
R616FFM
R617FS
R6202SBW
R6203SB
R6208SB
R6303SB
R6303SBE
FASSTest12, FASSTest18 & FASSTest26:
R7003SB
R7006SB
R7008SB
R7108SB
R7206SB
R7208SB
R7014SB
R7214SB
R7306SB
R7308SB
R7314SB
*As of May 2024
