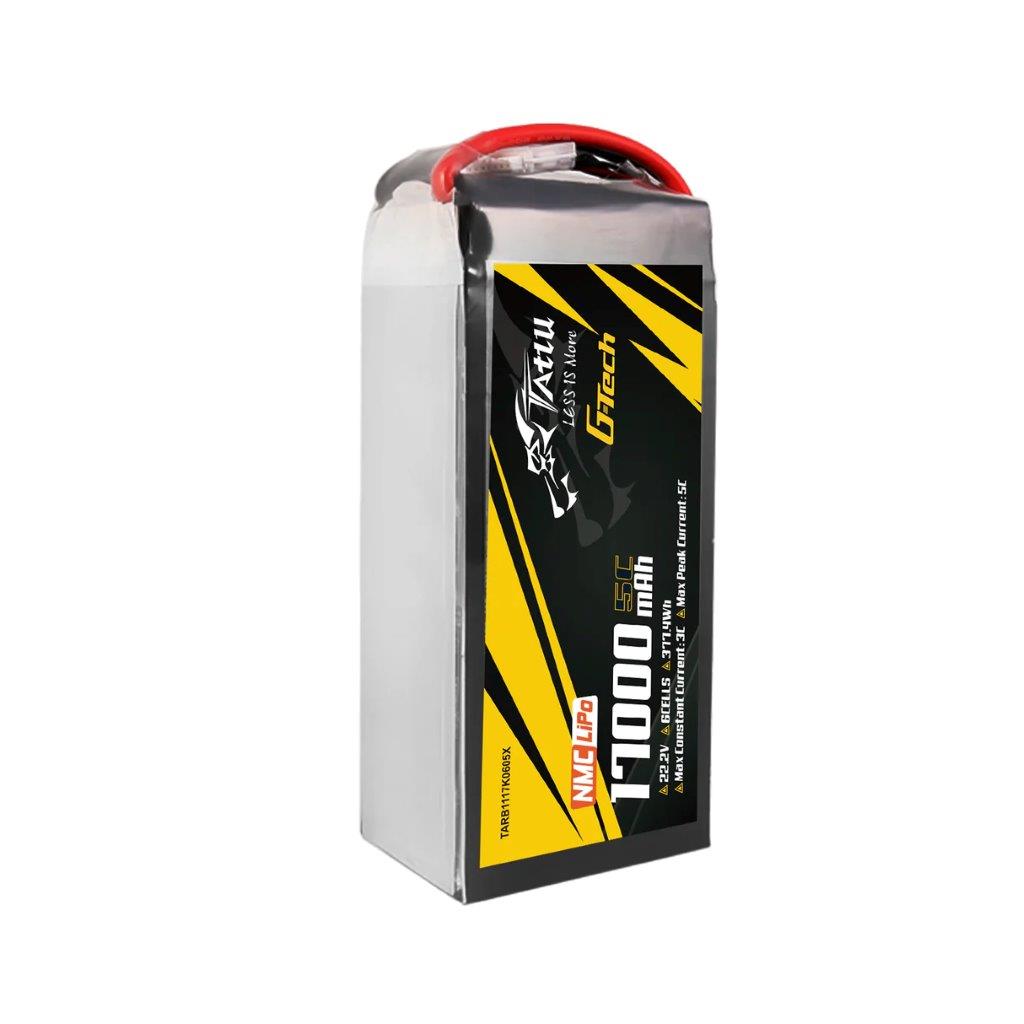

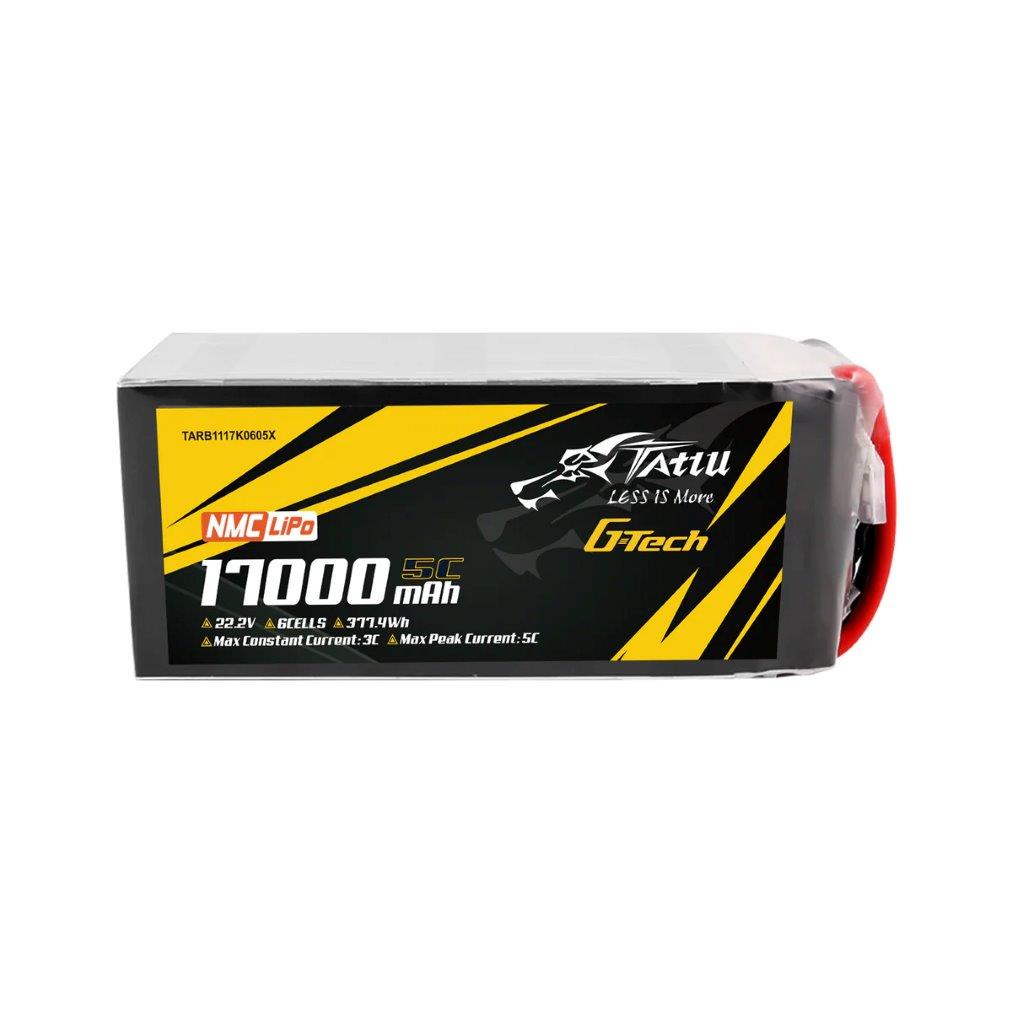

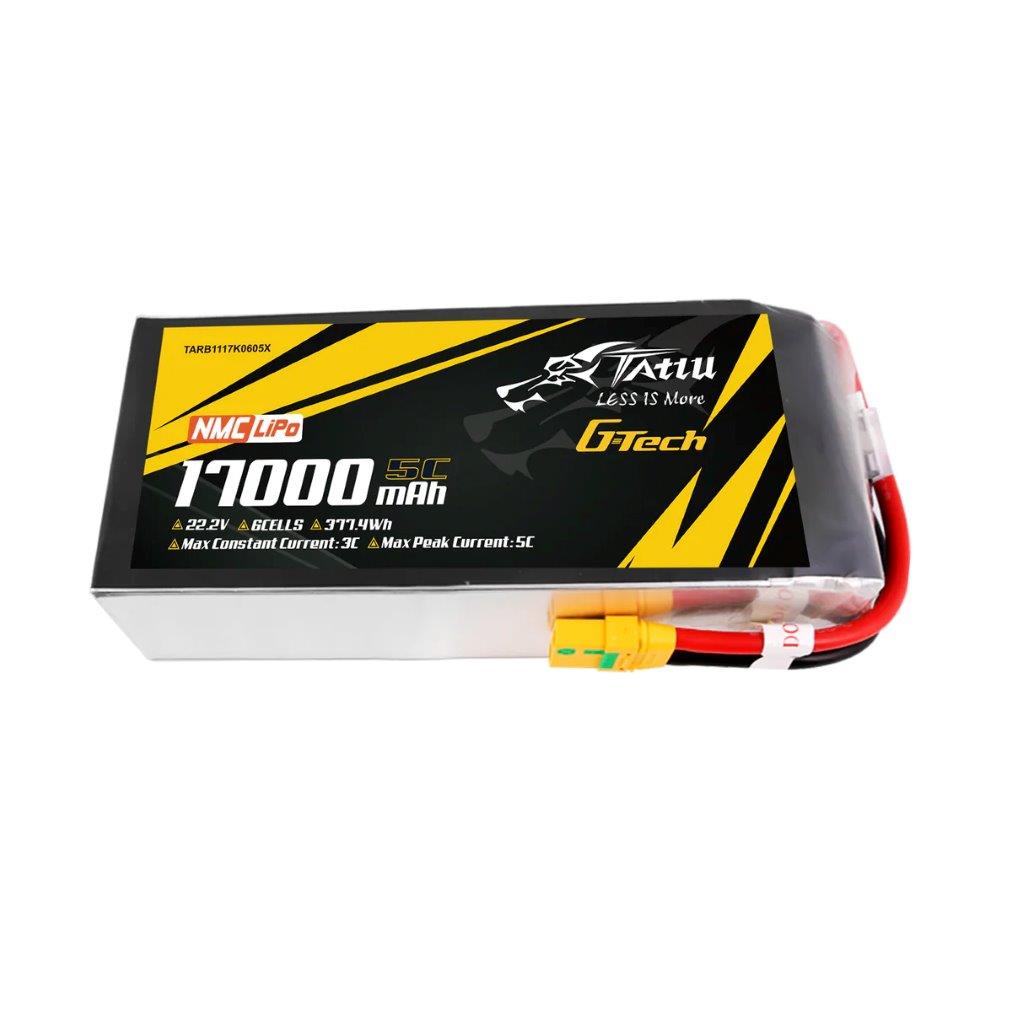

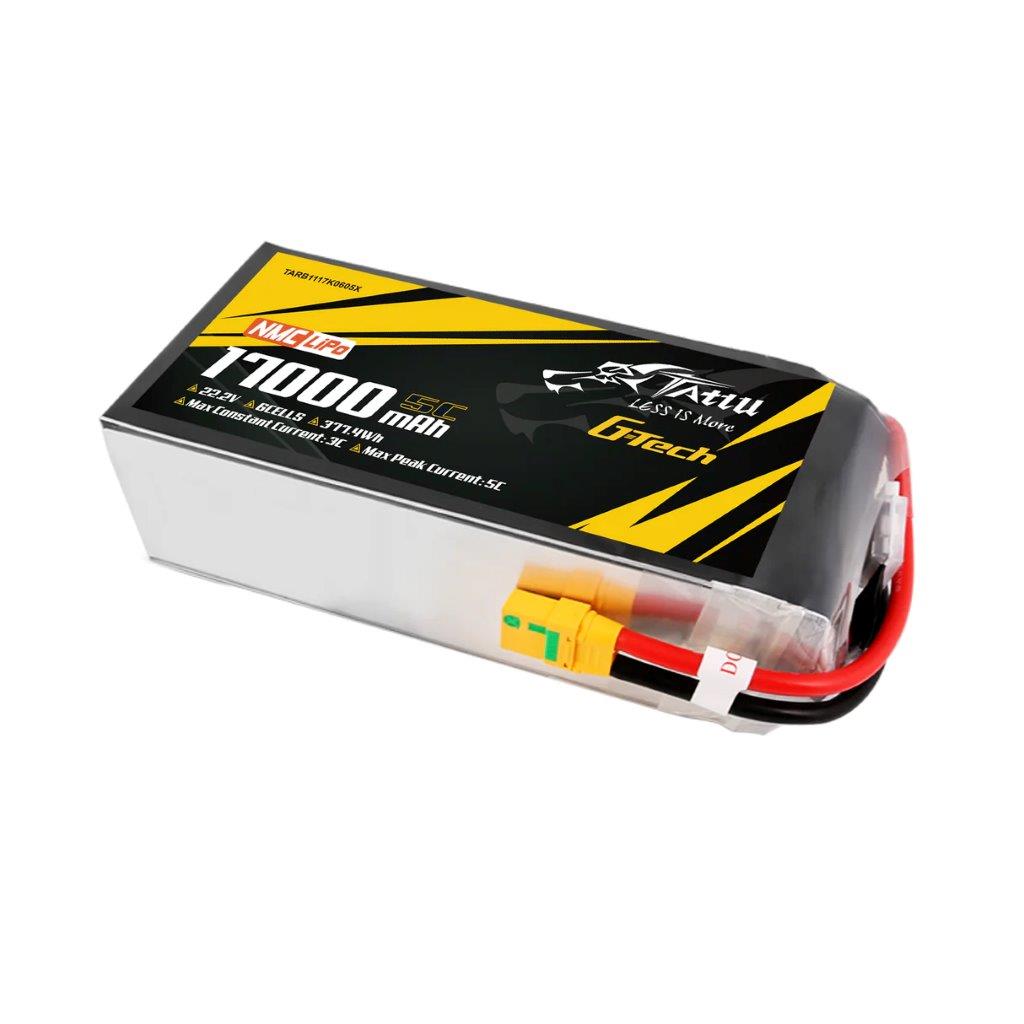

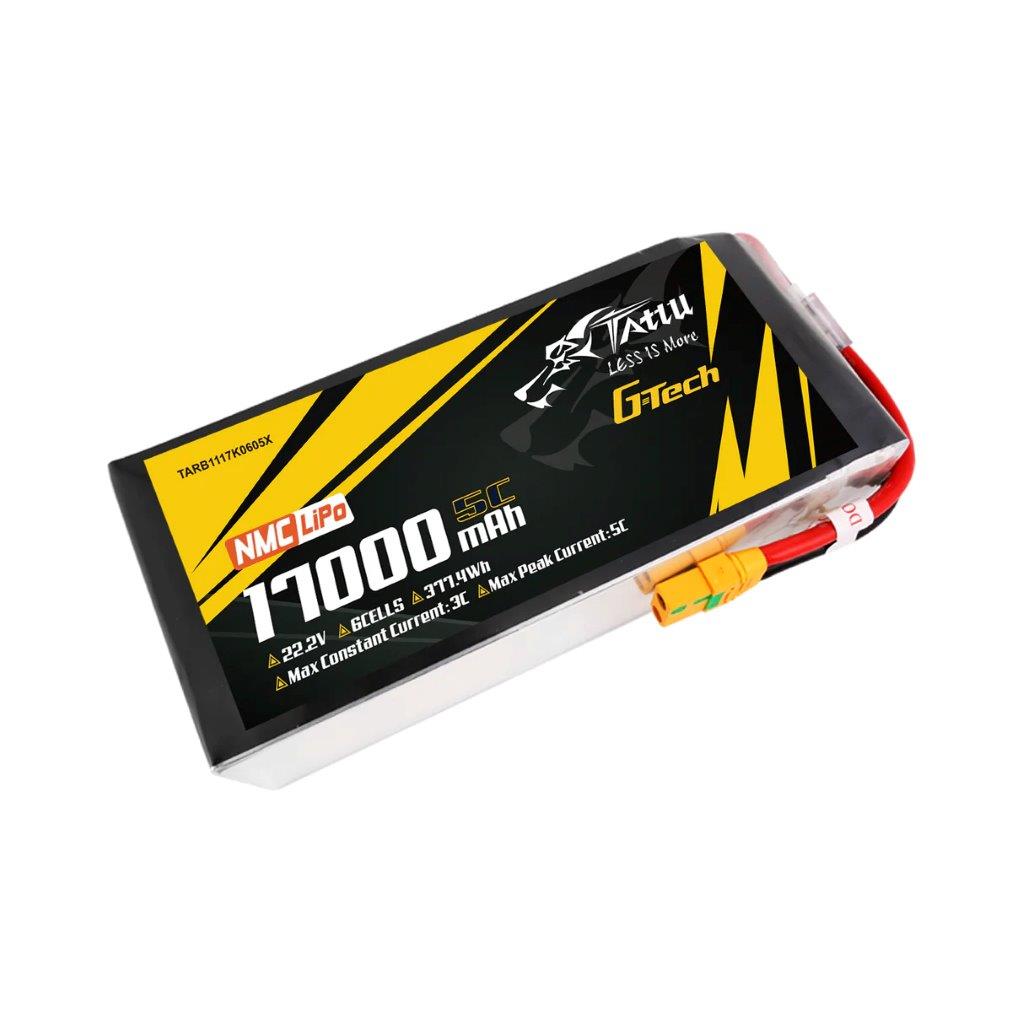

GensAce TATTU Semi-solid 17000mAh 5C 22.2V 6S1P GTech Lipo Pack, XT90S-F
4 419 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: TARB1117K0605X
Description
Tattu Semi-solid 17000mAh 5C 22.2V 6S1P G-Tech Lipo Battery is a new kind of Semi-solid lipo battery with high energy density and long service life. It is an ideal power solution for various industrial drones, including those used in mapping, inspection, surveying, delivery, and eVTOL applications. These drones typically require a nominal discharge current of 1-3C, and this batterys lightweight design, compact size, and extended flight time fully meet those demands.
Battery Specifications:
Capacity: 17000mAh
Voltage: 22.2V/6S
Max Constant Current: 3C
Max Peak Current: 5C
NET Weight(±20g): 1770g
Size: 186*71.5*55mm
Discharge Connector Type: XT90-S
Balancer Connector Type: G-Tech-7P
Discharge Wire: 8# 150mm
Charge Wire: 22# 65mm
1. Energy Density:
271.12Wh/kg This is a high energy density, suitable for applications where weight and energy storage are critical.
2. Safety Performance:
Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the batterys operating limits.
3. Discharge Rate:
Max Constant Current: 3C
Max Peak Current: 5C (for < 3 seconds)
These rates indicate the batterys ability to deliver power quickly and efficiently.
4. Cycle Life:
Over 500 cycles The battery maintains its performance over a significant number of charge-discharge cycles.
5. G-Tech Functionality:
The battery supports the G-Tech function with the Tattu 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.
Technical Features:
1. Ultra-High Nickel Technology: Likely contributes to higher energy density and overall battery performance.
2. Silicon Carbon Anode: Enhances the batterys capacity and cycling stability.
3. Coated Diaphragm Technology: Improves safety and performance by enhancing the separator's strength and stability.
4. Solid Electrolyte: Offers improved safety and performance, reducing the risk of leakage and enhancing the battery's life.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Charger:
Recommended use of the Tattu matching charger: TA1000
Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery
Check for more Tattu UAV/Drone Chargers.
Caution:
Don't over-charge; or over-discharge batteries.
Don't put it besides the high-temperature condition.
Don't throw it into the fire.
Don't throw it into the water.
If you are in the USA; you can check here on USA warehouse.
