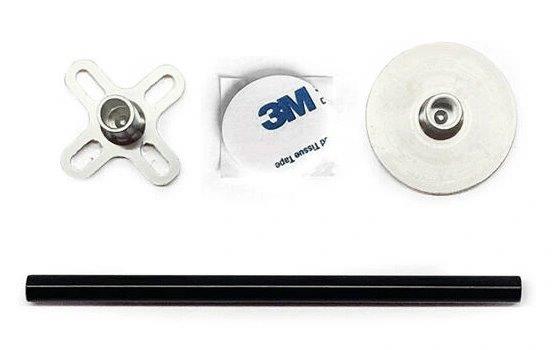

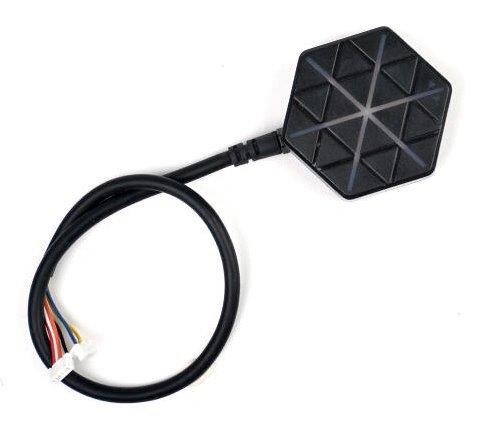

RadioLink SE100 GPS med GPX Hållare
593,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: RLSE100
Product Info:
RadioLink SE100 M10N GP
Dual Anti-interference Technology
Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference
50 centimeters Positioning Accuracy
Positioning 20 Satellites in 6 Seconds at Open Ground
Super Station-keeping Capability Even at Valley Bottom
Two-stage SAWF (Surface acoustic wave filter) from Murata
Triple-frequency Quad satellite system
2.5dbI High Gain and Selectivity Ceramic Chip Antennas
Dual Anti-interference Technology
De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter.
Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.
Excellent Performance
50 centimeters of positioning accuracy. Positioning 20 satellites in 6 seconds at open ground.
Super positioning capability even at the valley bottom.
Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz
BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
Excellent Performance
50 centimeters of positioning accuracy. Positioning 20 satellites in 6 seconds at open ground.
Super positioning capability even at the valley bottom.
Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz
BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
Protocol: Default NMEA
But, when connecting the SE100 to the flight controller, it will recognize the type of flight controller and automatically turn the protocol to the same protocol as the flight controller when connecting the SE100 to the flight controller, when the SE100 disconnects with the flight controller, and the protocol will turn back to the default NMEA.
Baud rate: 38.4K
Voltage: 5±5% VDC
Current: 50-100mA
Top Configuration
GPS decoder chip: Radiolink SE100, with Ublox M10050, is much better than a single GNSS 7N.
Built-in high-precision electronic compass IST8310 (I2C port).
Antenna: 2.5dbI high gain and selectivity ceramic chip antennas
Power amplify IC: High-gain MMIC chip
Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata
SE100 M10N GPS Specs:
Positional Accuracy: Up to 50 centimeters with quad-mode / 250 centimeters with Single Mode
Protocol: Default NMEA. But, when connecting the SE100 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the SE100 to the flight controller, when the SE100 disconnects with the flight controller, and the protocol will turn back to the default NMEA.
Velocity Precision: 0.1m/s
Max Height: 50000m
Max Speed: 515m/s
Max Acceleration: 4G
Max Update Rate: 20Hz
Sensitivity:
Tracking & Nav.：-167dBm
Acquisition：-163dBm
Cold start：-151dBm
Hot start：-159dBm
Activation Period:
Cold start: 26s
Hot start: 1s
Power Supply:
Voltage: 5±5%VDC
Current: 50-100mA
Ports:
GPS: UART port with baud rate 38.4K
Geomagnetic: I2C port
Partistorlek: 1
Ursprungsland: CN
