Hobbywing Motor EzRun 1626SD-6500kV BL 1/28
528,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30402655

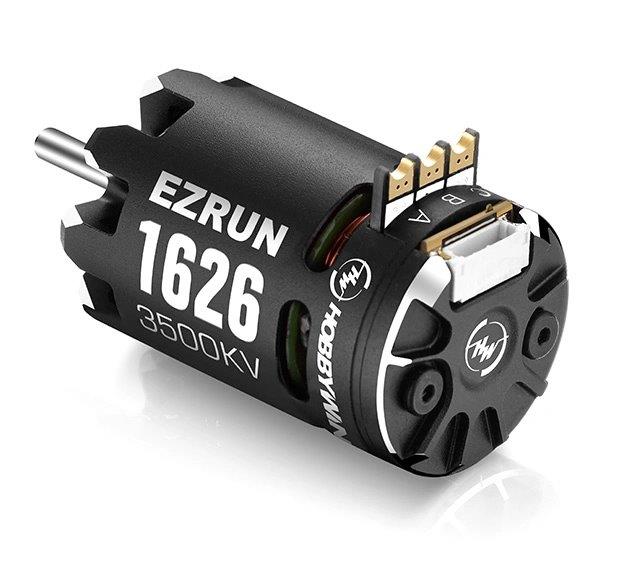

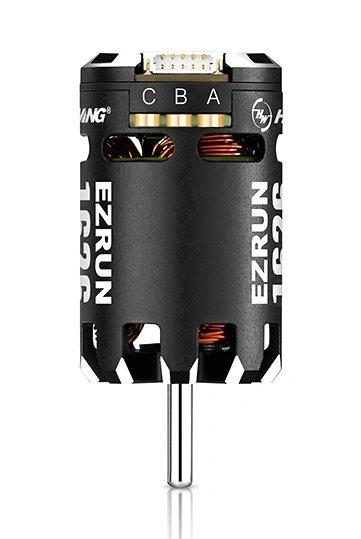

Hobbywing HW30402655 - EZRUN 1626SD-6500KV
EZRUN 1626
The first motor from Hobbywing is specifically designed for high-power 1/28th scale builders.
Features:
Specially designed for 1/28 mini car，when matched with Hobbywing EZRUN MINI28 esc, it has perfect compatibility, and provides better performance and more delicate manipulating feel.
The front and rear ends of the motor are designed with large openings structure to provide better heat dissipation for the motor.
Built-in high-precision Hall sensor combined with the high precision and balanced rotor to ensure excellent linearity of the motor.
The internal PCB is a 4-layer board, and the ABC wiring position is reinforced by punching holes, prevent the soldering spot from falling off after multiple soldering.
More Power!
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically. Small or large changes can be made for major on-demand power needs.
Precision Response
Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and drive ability. The use of high-precision sensors ensures the ESC will be able to provide the best feel for the drivers.
EzRun 1626SD 6500kV Specs:
KV: 6500
Poles: 2
LiPo: 2s
No Load Current: 0.6A
Diameter: 16mm
Case Length: 26mm
Shaft Dia: 2mm
Shaft Length: 8.5mm
Bearing Size: OD5 x ID2 x T2.5mm
Weight: 18g
Application: 1/28 Mini
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
kV-värde: 6500 kV
Motor diameter: 16 mm
Motor längd: 26 mm
Motoraxel längd: 8,5 mm
Motoraxel diameter: 2 mm
Vikt: 18 gram
Max spänning: 7,4 V
Special: Sensorbaserad
