Hobbywing Motor EzRun 5687SL 1100kV Sensorlös 1/6
1 463,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30402550
Hobbywing EzRun 5687 Brushless 1100KV Sensorless Motor
Features:
4 pole rotor for high torque, fast acceleration response and stable power output
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%)
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness

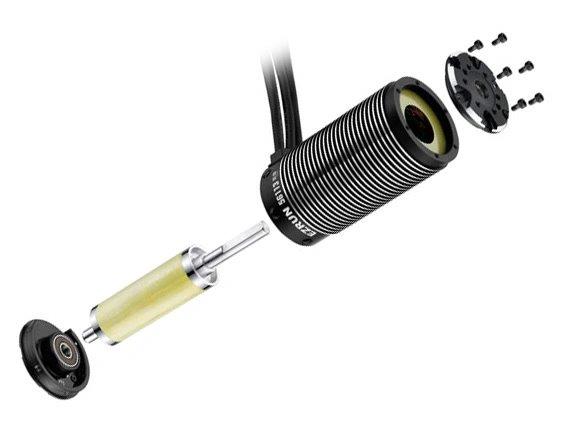

Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency
This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC
Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future)
Specs:
Type: Brushless Sensorless
Poles: 4
KV: 1100
LiPo: 3-8S
Resistance: 0.0041Ohm
No Load: 4.1A
Max Current: 200A
Power: Max 5800W

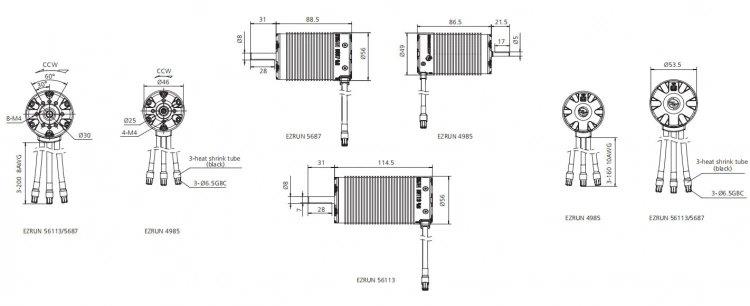

Outer Dia: 56mm
Length: 87mm
Shaft Dia: 8mm
Shaft Length: 31mm
Weight: 916g
Application: 1/5 & 1/6 Light-Duty Vehicles
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
kV-värde: 1100 kV
Motor diameter: 56 mm
Motor längd: 87 mm
Motoraxel längd: 31 mm
Motoraxel diameter: 8 mm
Vikt: 916 gram
Strömtålighet Kont.: 200 A
Effekt Peak: 5800W W
Max spänning: 29,6 V
Features:
4 pole rotor for high torque, fast acceleration response and stable power output
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%)
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness
Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency
This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC
Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future)
Specs:
Type: Brushless Sensorless
Poles: 4
KV: 1100
LiPo: 3-8S
Resistance: 0.0041Ohm
No Load: 4.1A
Max Current: 200A
Power: Max 5800W
Outer Dia: 56mm
Length: 87mm
Shaft Dia: 8mm
Shaft Length: 31mm
Weight: 916g
Application: 1/5 & 1/6 Light-Duty Vehicles
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
kV-värde: 1100 kV
Motor diameter: 56 mm
Motor längd: 87 mm
Motoraxel längd: 31 mm
Motoraxel diameter: 8 mm
Vikt: 916 gram
Strömtålighet Kont.: 200 A
Effekt Peak: 5800W W
Max spänning: 29,6 V
