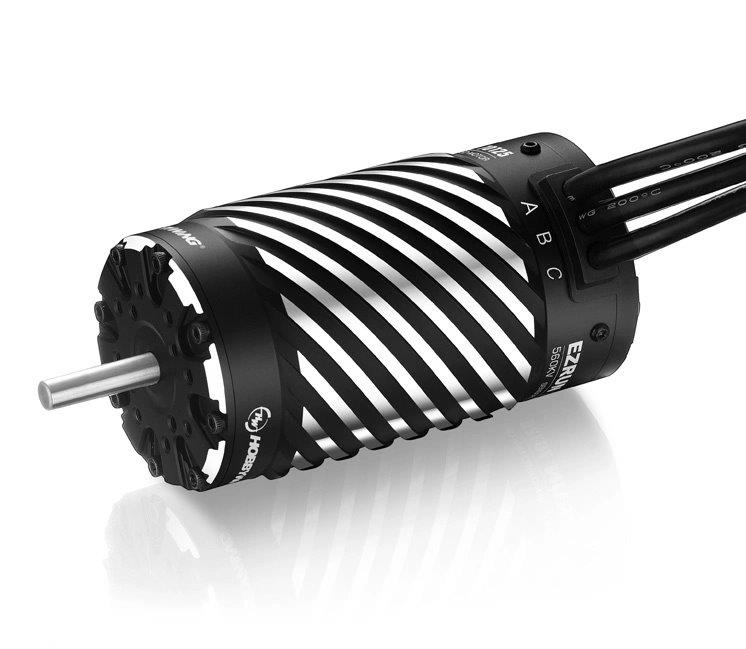

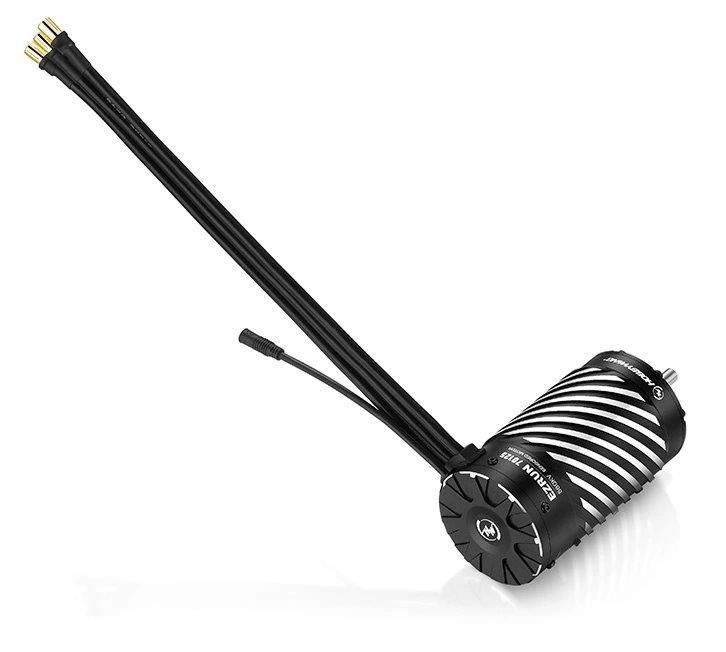

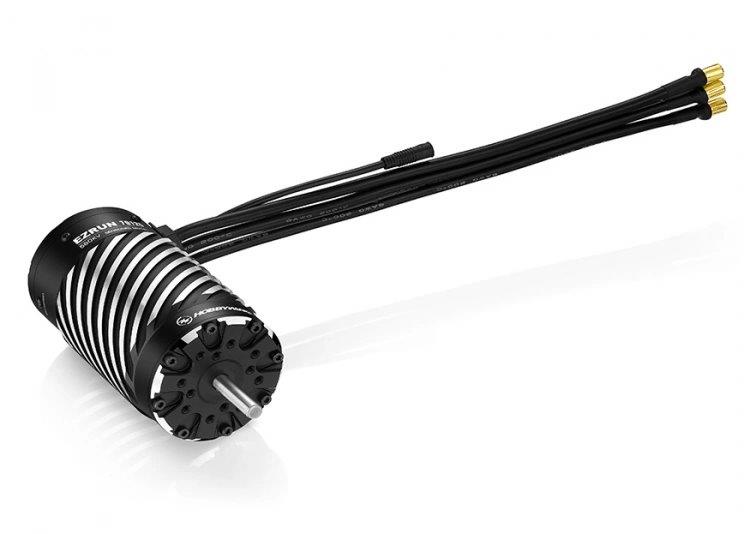

Hobbywing Motor EzRun 70125SD 560kV Sensor 1/5
2 456,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30402850
Hobbywing EzRun 70125SD 560kV Sensored 1/5 Motor
Chip built in the motor, when matched with Hobbywing EZRUN MAX4 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.
The rotor adopts four strong magnetic and high temperature resistant sintered Nd-Fe-B magnets, widens the magnetic tile, provides super torque, and makes the motor have strong explosive force and stable output power.
The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
High output efficiency, effectively reduce the motor temperature and output more power under the same load.
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor
Specs:
Type: 1/5, Brushless, Sensored Car ESC
Pole Count: 4
KV Rating: 560KV
LiPo Cells: 8-12S
No-load Current: 3.6A
Diameter: 70mm
Length: 125mm
Shaft Diameter: 8mm
Weight: 1995g
Front Bearing: D22xD8xT7mm
Rear Bearing: D22xD8xT7mm
Applications:
1/5 Heavy-duty Off-road, Truck
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
kV-värde: 560 kV
Motor diameter: 42 mm
Motor längd: 125 mm
Motoraxel längd: 30 mm
Motoraxel diameter: 8 mm
