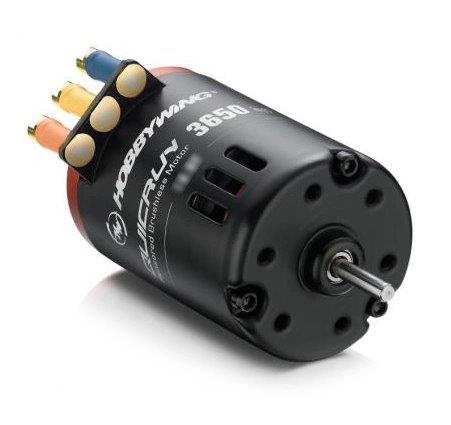

Hobbywing Motor QuicRun 3650SD 21.5T G2

Hobbywing 30404307 - Motor Quickrun 3650SD 21.5T G2

Features
• Sensored brushless design for smooth and linear throttle control.
• Removable and serviceable structure – easy to clean, repair, or replace rotor, bearings, and sensor module.
• Precision-balanced rotor for high efficiency and reduced vibration.
• Dustproof design around the output end to improve durability.
• Lockable, gold-plated connectors for reliable solder-free connections.
• Silicone O-ring between end bell and stator for improved heat dissipation.
• Compatible with standard sensored ESCs; supports sensor cable connection.
• Plug-and-play with pre-soldered 3.5 mm bullet connectors.

Specifications (QuicRun 3650SD G2 – 21.5T, HW30404307)
• Turns (T): 21.5T
• KV Rating: 1800 KV
• LiPo Cells: 2S–3S
• Resistance (Ω): 0.0747 Ω
• No-load Current: 1.3 A
• Max. Output Current: 28 A
• Max. Output Power: 95 W
• Rotor Diameter: 12.5 mm
• Shaft Diameter: 3.175 mm
• Outer Diameter: 36 mm
• Length (w/o shaft): 52.8 mm
• Weight: 186 g
• Mounting Screw Size: M3, depth ≤ 5 mm
• Operating Temperature Limit: ≤ 90 °C (194 °F)

Ursprungsland: CN
Elmotor Applikation: Bil
Motor Rating: 21,5 T
Typ av motor: Borstlös
kV-värde: 1800 kV
Motor diameter: 36 mm
Motor längd: 52,8 mm
Motor Vikt: 186 gram
Motoraxel diameter: 3,175 mm
Strömtålighet Kont.: 28 A
Effekt Peak: 95 W
Motor Kontakt: 3,5mm Bullet
Special (Motor): Sensorbaserad
